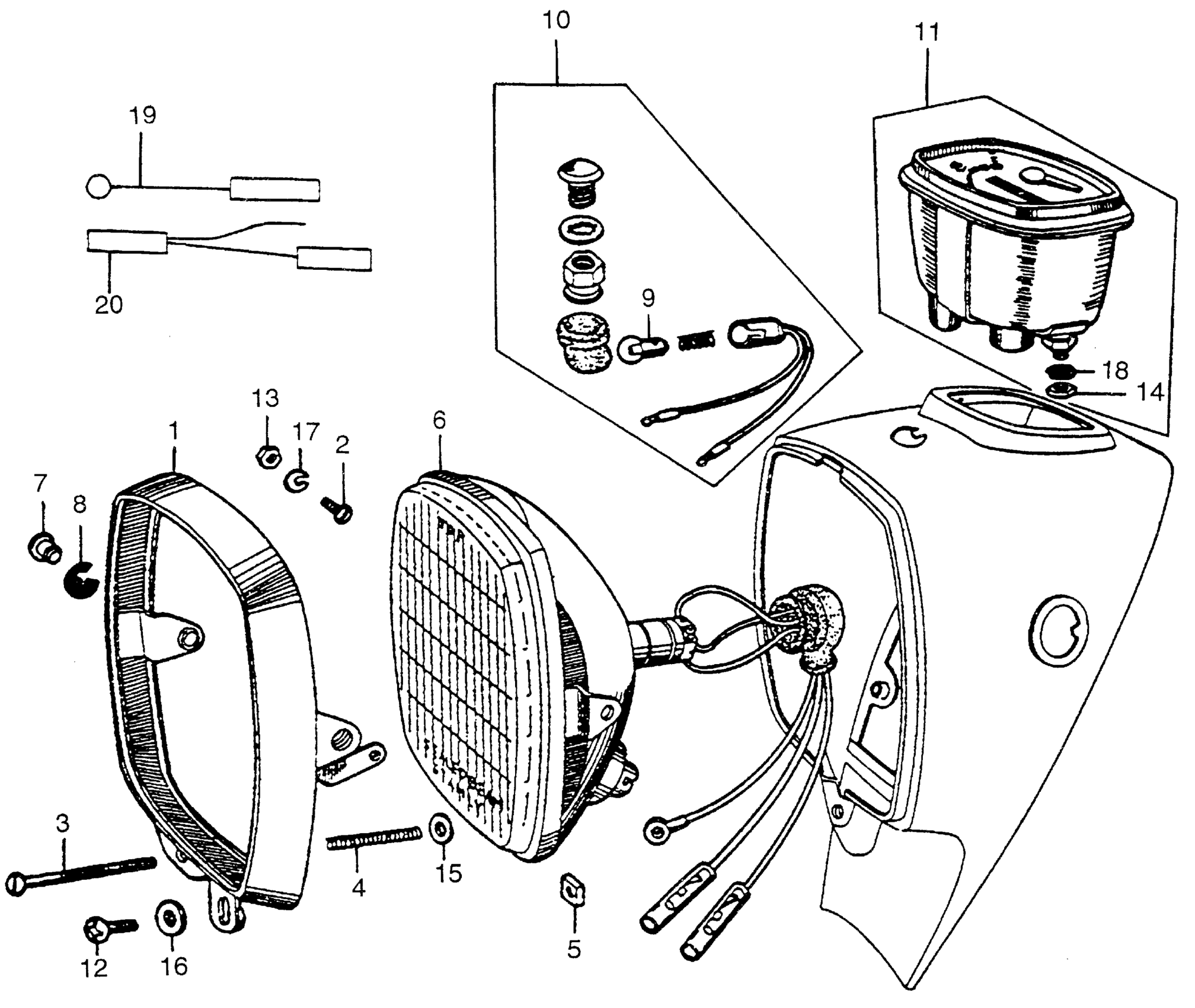

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

RIM, HEADLIGHT

33101-203-000

Unavailable

2

SCREW (3MM) (NOT AVAILABLE)

33102-200-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ.

33103-200-020

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

5

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

6

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-203-000

Unavailable

6

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33120-203-000.

33100-203-000

Unavailable

7

SCREW, HEADLIGHT (NOT AVAILABLE)

33125-200-030

Unavailable

8

NUT, UNIT HOLDER This part replaces 33128-200-030.

33128-292-670

$2.94

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

10

LIGHT ASSY., NEUTRAL PILOT (NOT AVAILABLE) | Use from Frame SN 4005201

35450-215-000

Unavailable

10

LIGHT ASSY., NEUTRAL PILOT (NOT AVAILABLE)

37700-202-000

Unavailable

11

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-215-008

Unavailable

12

SCREW, PAN (6X12) This part replaces 33114-200-000.

93500-06012-0B

$1.49

12

SCREW, PAN (6X12) This part replaces 33127-259-222.

93500-06012-0B

$1.49

12

SCREW, PAN (6X12)

93500-06012-0B

$1.49

12

SCREW, PAN (6X12) This part replaces 93500-06012-02.

93500-06012-0B

$1.49

13

NUT, HEX. (3MM) (SOURCE: VINTAGE PARTS INC.)

94001-03000

Unavailable

13

NUT, HEX. (3MM)

94001-03000-0S

$1.49

14

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

14

NUT, HEX. (5MM)

94001-05000-0S

$2.74

15

WASHER, PLAIN (4MM)

94101-04000

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (3MM)

94111-03000

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49

19

WIRE A, PILOT LAMP (NOT AVAILABLE)

35451-262-305

Unavailable

20

SUB-WIRE B, BEAM PILOT (NOT AVAILABLE)

35463-262-305

Unavailable
