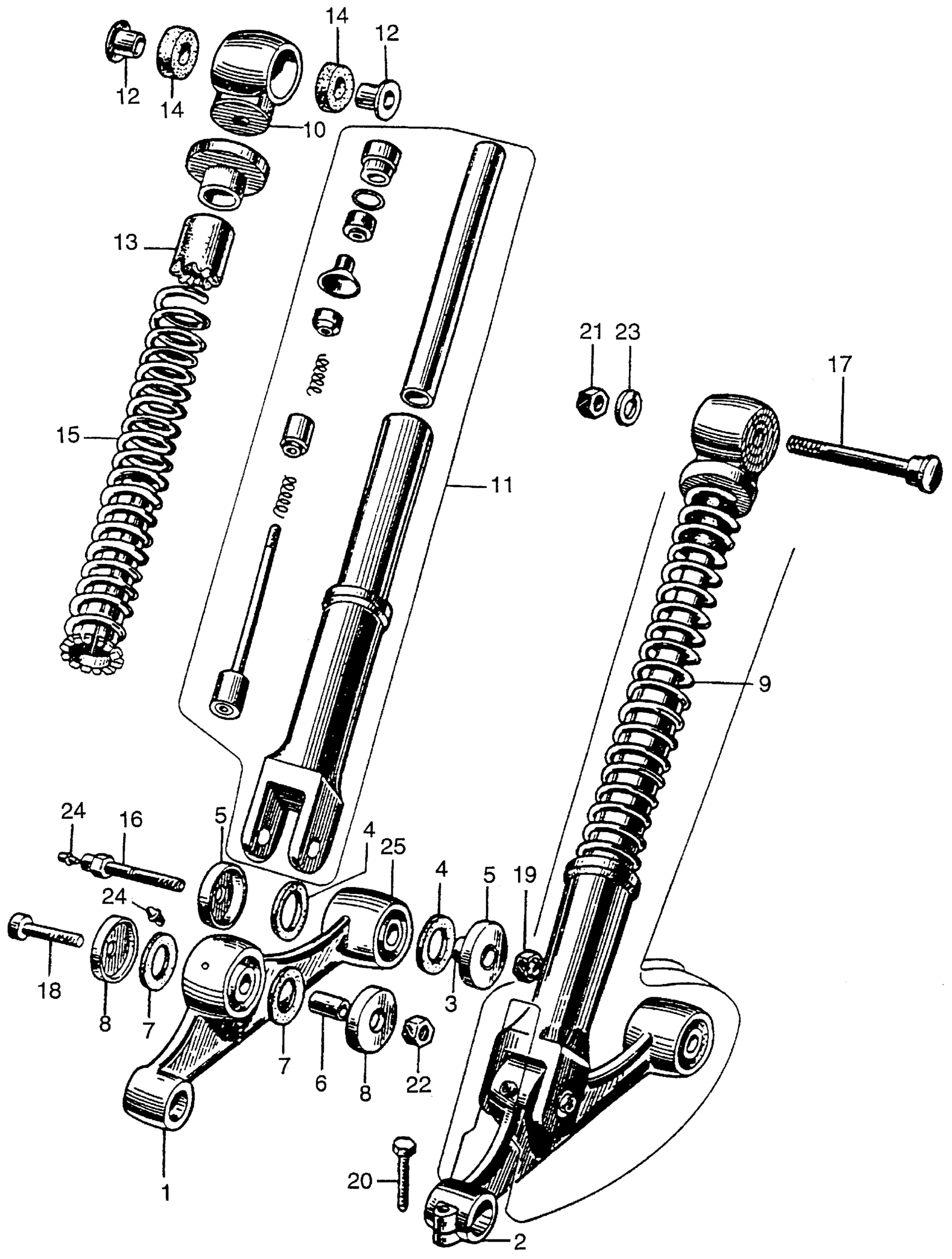

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

ARM, R. FR. SUSPENSION (NOT AVAILABLE)

51210-202-010

Unavailable

2

ARM, L. FR. SUSPENSION (NOT AVAILABLE)

51220-202-010

Unavailable

3

COLLAR, FR. ARM PIVOT (NOT AVAILABLE)

51231-200-000

Unavailable

4

DUST SEAL, FR. ARM PIVOT (NOT AVAILABLE)

51232-250-000

Unavailable

5

CAP, FR. ARM PIVOT DUST SEAL

51233-200-000

Unavailable

6

COLLAR, FR. FORK DISTANCE (LOWER) (NOT AVAILABLE)

51234-200-000

Unavailable

7

DUST SEAL, FR. FORK (LOWER) (NOT AVAILABLE)

51235-200-000

Unavailable

8

CAP, FR. FORK DUST SEAL (LOWER) (NOT AVAILABLE)

51236-200-000

Unavailable

9

FORK ASSY., FR. (NOT AVAILABLE)

51400-212-810

Unavailable

10

METAL, FR. FORK (UPPER)

51410-250-000

Unavailable

10

METAL, FR. FORK (UPPER) | Use from Frame SN 5002610

51410-250-010

Unavailable

11

METAL, FR. FORK (LOWER) (NOT AVAILABLE)

51434-202-010

Unavailable

12

COLLAR, FR. FORK (UPPER) (NOT AVAILABLE)

51510-250-000

Unavailable

13

RUBBER, FR. FORK STOPPER

51519-200-010

Unavailable

14

BUSH, FORK RUBBER

51632-250-000

Unavailable

15

SPRING, FR. FORK

51800-200-000

Unavailable

16

BOLT, FR. ARM PIVOT (NOT AVAILABLE) | Use up to Frame SN 1100981

90125-200-000

Unavailable

16

BOLT, FR. ARM PIVOT (NOT AVAILABLE) | Use from Frame SN 210001

90125-200-010

Unavailable

17

BOLT, FR. SHOCK (UPPER) (NOT AVAILABLE)

90147-205-010

Unavailable

18

BOLT, FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 4006791

90149-212-000

Unavailable

18

BOLT, FR. FORK (LOWER) (NOT AVAILABLE) | Use up to Frame SN 4006790

90149-250-000

Unavailable

19

NUT, LOCK (12MM)

90353-250-000

Unavailable

20

BOLT, HEX. (8X30) This part replaces 92000-08030.

92101-08030-0A

$1.49

20

BOLT, HEX. (8X30) This part replaces 92000-08030-0A.

92101-08030-0A

$1.49

20

BOLT, HEX. (8X30) This part replaces 92100-08030-0A.

92101-08030-0A

$1.49

20

BOLT, HEX. (8X30)

92101-08030-0A

$1.49

21

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

21

NUT, HEX. (10MM)

94030-10000

$1.49

21

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

22

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

22

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

23

WASHER, SPRING (8MM)

94111-10000

$1.49

24

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

24

FITTING, GREASE (A.45)

96201-30001

$1.49

25

BUSH, FR. ARM PIVOT (NOT AVAILABLE)

51214-202-000

Unavailable
