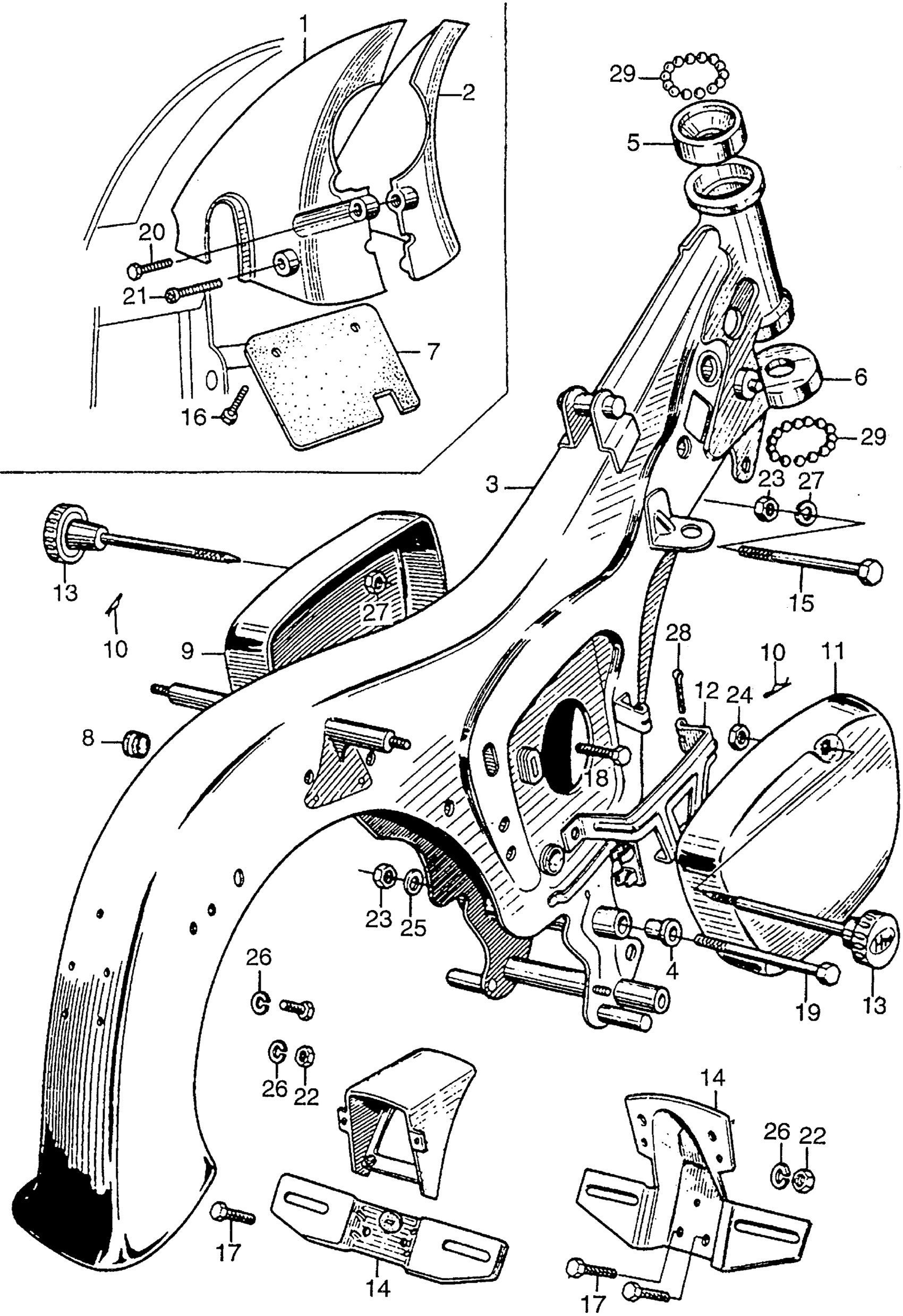

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 FRAME Diagram

#

Description
Price

1

SHIELD, R. DUST FRAME (NOT AVAILABLE)

17261-205-010

Unavailable

2

SHIELD, L. DUST FRAME (NOT AVAILABLE)

17361-200-000

Unavailable

3

FRAME | Use from Frame SN 3106641 to 4003870

50100-212-000Z

Unavailable

3

FRAME | Use from Frame SN 4003871

50100-212-010Z

Unavailable

4

BUSH, SWINGARM PIVOT BOLT (NOT AVAILABLE)

50101-250-320

Unavailable

5

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

5

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

5

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

5

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

5

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

5

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

6

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

6

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

7

SPLASH GUARD, FRAME (NOT AVAILABLE)

50311-201-000

Unavailable

8

PLUG, FRAME BASE HOLE (NOT AVAILABLE)

50329-250-000

Unavailable

9

COVER, TOOL *NH1* (BLACK) (NOT AVAILABLE)

83500-200-000B

Unavailable

9

COVER, TOOL *R2* (SCARLET) (NOT AVAILABLE)

83500-200-000C

Unavailable

9

COVER, TOOL *PB5* (ROYAL BLUE) (NOT AVAILABLE)

83500-200-000E

Unavailable

10

PIN, LOCK (6MM) This part replaces 83543-001-000.

94251-06000

$1.49

10

PIN, LOCK (6MM)

94251-06000

$1.49

11

BOX, BATTERY (NOT AVAILABLE)

83600-201-000Z

Unavailable

12

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

83631-201-000B

Unavailable

13

LATCH, TOOL BOX

83650-003-000

$6.52

14

BRACKET, LICENSE PLATE (NOT AVAILABLE) | Use from Frame SN 3106641 This part replaces 84701-212-000Z.

84701-271-305Z

Unavailable

14

BRACKET, LICENSE PLATE (NOT AVAILABLE) | Use from Frame SN 3106641 This part replaces 84701-271-000Z.

84701-271-305Z

Unavailable

14

BRACKET, LICENSE PLATE (NOT AVAILABLE) | Use from Frame SN 3106641

84701-271-305Z

Unavailable

15

BOLT, ENGINE HANGER (NOT AVAILABLE)

90105-200-000

Unavailable

16

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$1.49

16

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

16

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

16

BOLT, HEX. (5X8) This part replaces 92200-05008.

92101-05008-0A

$1.49

16

BOLT, HEX. (5X8) This part replaces 92200-05008-0A.

92101-05008-0A

$1.49

17

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

17

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

18

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

18

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

19

BOLT, HEX. (10X40) This part replaces 92000-10040.

92101-10040-0A

$2.84

19

BOLT, HEX. (10X40) This part replaces 92000-10040-0A.

92101-10040-0A

$2.84

19

BOLT, HEX. (10X40)

92101-10040-0A

$2.84

20

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

21

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

21

SCREW, PAN (6X18)

93500-06018-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

23

NUT, HEX. (10MM)

94030-10000

$1.49

23

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

24

NUT, HEX. (6MM)

94002-06000-0S

$1.49

25

WASHER, PLAIN (10MM)

94101-10000

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49

27

WASHER, SPRING (8MM)

94111-10000

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

28

PIN, COTTER (3.0X45)

94201-30450

$1.49

29

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
