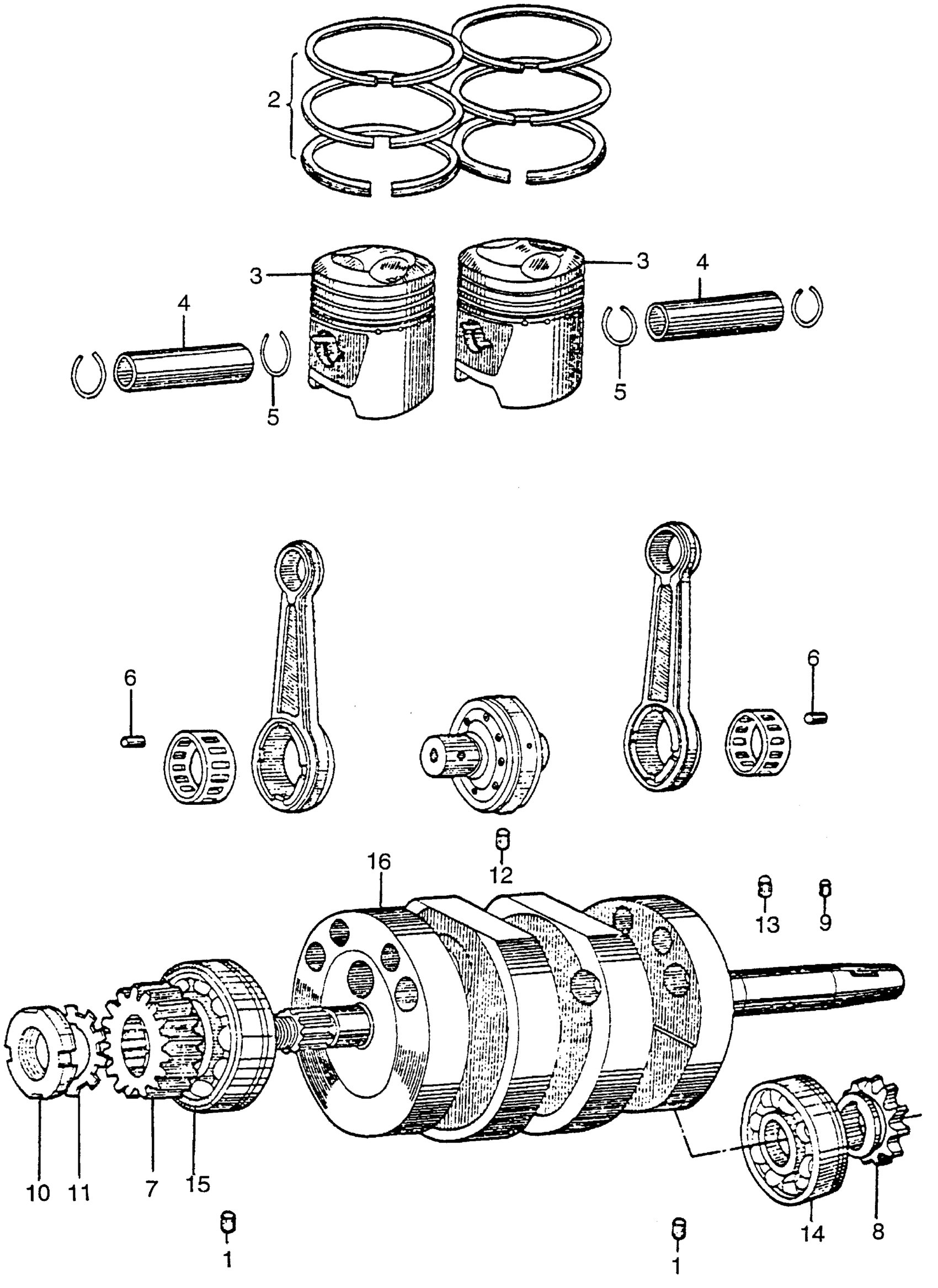

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 CRANKSHAFT + CONNECTING ROD + PISTON (2) Diagram

#

Description
Price

1

PIN, KNOCK (6X10) (NOT AVAILABLE) | Use from Engine SN 010001 to 5019831

90701-202-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) This part replaces 13010-201-000.

13011-030-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) This part replaces 13011-201-000.

13011-030-000

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13020-201-000.

13021-030-000

Unavailable

2

RING SET, PISTON (OS 0.25)

13021-030-000

Unavailable

2

RING SET, PISTON (OS 0.25) This part replaces 13021-201-000.

13021-030-000

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13030-201-000.

13031-030-000

Unavailable

2

RING SET, PISTON (OS 0.50)

13031-030-000

Unavailable

2

RING SET, PISTON (OS 0.50) This part replaces 13031-201-000.

13031-030-000

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) This part replaces 13040-201-000.

13041-030-000

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) This part replaces 13041-201-000.

13041-030-000

Unavailable

2

RING SET, PISTON (1.00)

13050-201-000

Unavailable

2

RING SET, PISTON (1.00) This part replaces 13051-201-000.

13050-201-000

Unavailable

3

PISTON (NOT AVAILABLE) | Use from Engine SN 2100001 to 4019732

13101-206-000

Unavailable

3

PISTON | Use from Engine SN 4019733 to 5019831

13101-206-010

$153.75

3

PISTON (OS 0.25)

13102-206-000

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE)

13102-206-010

Unavailable

3

PISTON (OS 0.50)

13103-206-000

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-206-010

Unavailable

3

PISTON (0.75)

13104-206-000

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-206-010

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-206-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE)

13105-206-010

Unavailable

4

PIN, PISTON This part replaces 13111-207-000.

13111-707-000

Unavailable

4

PIN, PISTON

13111-707-000

Unavailable

5

CLIP, PISTON PIN

13115-200-000

$1.49

5

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

6

PLATE, R. CRANKSHAFT BEARING (NOT AVAILABLE)

13497-202-000

Unavailable

6

PLATE, CRANKSHAFT THRUST

90402-202-000

Unavailable

7

GEAR, PRIMARY DRIVE | Use from Engine SN 2100001 to 5019831

13611-202-020

Unavailable

8

SPROCKET, TIMING | Use up to Engine SN 5001778

14311-202-000

Unavailable

8

SPROCKET, TIMING (NOT AVAILABLE) | Use from Engine SN 5001779 to 5019831

14311-202-020

Unavailable

9

DOWEL, FLYWHEEL (NOT AVAILABLE) This part replaces 30906-200-000.

30906-235-000

Unavailable

9

DOWEL, FLYWHEEL (NOT AVAILABLE) This part replaces 30906-216-000.

30906-235-000

Unavailable

9

DOWEL, FLYWHEEL (NOT AVAILABLE)

30906-235-000

Unavailable

10

NUT, LOCK (16MM)

90231-KCS-651

$4.21

10

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

11

WASHER, LOCK (16MM) (NOT AVAILABLE) This part replaces 90431-216-000.

90431-216-010

Unavailable

11

WASHER, LOCK (16MM) (NOT AVAILABLE)

90431-216-010

Unavailable

12

PIN, KNOCK (8X8) (NOT AVAILABLE)

90701-205-000

Unavailable

13

PIN, TIMING SPROCKET KNOCK (NOT AVAILABLE)

90719-200-000

Unavailable

14

BEARING, ROLLER (N304SHS) (NOT AVAILABLE)

91001-202-020

Unavailable

15

BEARING, ROLLER (N304SHS) (NOT AVAILABLE)

91012-202-010

Unavailable

16

CRANKSHAFT | Use from Engine SN 010026 to 011037

13000-205-385

Unavailable

16

CRANKSHAFT (NOT AVAILABLE) | Use from Engine SN 1100265 to 1101007 This part replaces 13000-206-000.

13000-207-020

Unavailable

16

CRANKSHAFT (NOT AVAILABLE) | Use from Engine SN 1100265 to 1101007

13000-207-020

Unavailable

16

CRANKSHAFT (NOT AVAILABLE) | Use from Engine SN 1100265 to 1101007 This part replaces 13000-207-325.

13000-207-020

Unavailable
