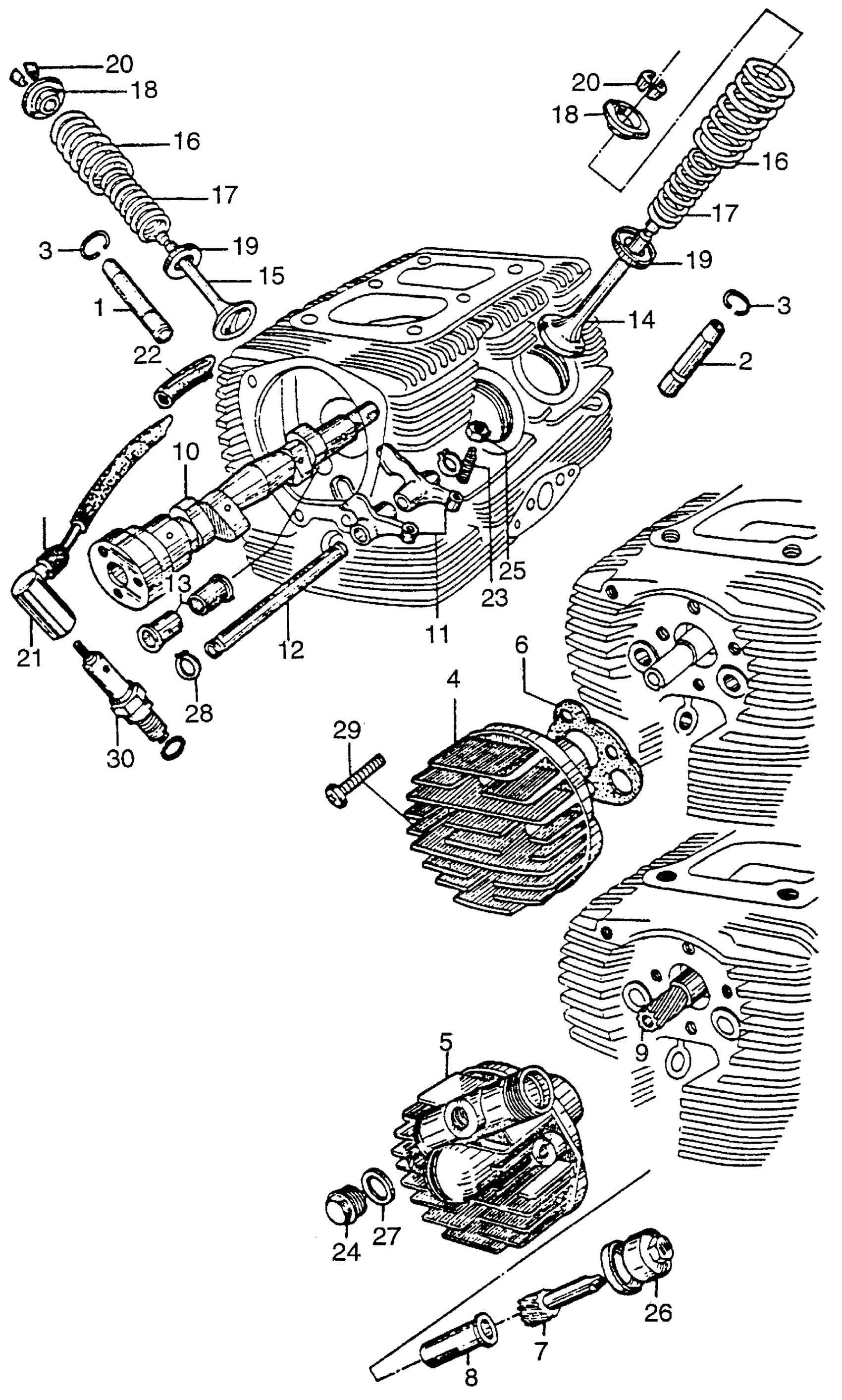

Honda CA95A MOTORCYCLE, JPN, VIN# C95-100001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

GUIDE, EX. VALVE (NOT AVAILABLE) | Use up to Engine SN 5013352

12023-205-000

Unavailable

2

GUIDE, VALVE (NOT AVAILABLE) | Use up to Engine SN 5013352

12204-200-305

Unavailable

3

CLIP, VALVE GUIDE (NOT AVAILABLE)

12253-200-300

Unavailable

4

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 4000001 to 5013352

12331-202-000

Unavailable

5

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE)

12331-205-020

Unavailable

6

GASKET, R. This part replaces 12394-200-000.

12394-200-306

Unavailable

7

GEAR, TACHOMETER PINION (NOT AVAILABLE)

12431-205-000

Unavailable

8

BUSH, TACHOMETER GEAR (NOT AVAILABLE)

12441-205-000

Unavailable

9

GEAR, TACHOMETER DRIVE

14100-205-030

Unavailable

10

CAMSHAFT (NOT AVAILABLE) | Use from Engine SN 4000001

14101-206-000

Unavailable

11

ARM, VALVE ROCKER (NOT AVAILABLE) | Use up to Engine SN 5001560 This part replaces 14431-200-000.

14431-206-000

Unavailable

11

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-206-000

Unavailable

12

PIN, ROCKER ARM CLAMP (NOT AVAILABLE)

14451-200-000

Unavailable

13

COLLAR, ROCKER ARM SIDE (NOT AVAILABLE)

14491-200-000

Unavailable

14

VALVE, IN. (NOT AVAILABLE)

14711-200-020

$44.34

15

VALVE, EX. (NOT AVAILABLE)

14721-205-000

Unavailable

16

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-200-000

Unavailable

17

SPRING, VALVE (INNER) (NOT AVAILABLE) | Use up to Engine SN 5013352

14761-200-000

Unavailable

18

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-011-000

Unavailable

19

SEAT, VALVE SPRING (NOT AVAILABLE) | Use up to Engine SN 5013352

14775-200-000

Unavailable

20

COTTER, VALVE

14781-001-004

$4.95

20

COTTER, VALVE

14781-001-010

$5.66

21

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

21

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

21

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

22

TUBE, COIL WIRE RUBBER (NOT AVAILABLE)

32762-200-010

Unavailable

23

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

23

SCREW, TAPPET ADJ.

90012-333-000

$2.75

24

BOLT, SEALING (12MM)

90081-205-000

Unavailable

25

NUT, TAPPET ADJ.

90206-001-000

$1.66

26

NUT, SEALING (20MM) (NOT AVAILABLE)

90241-205-000

Unavailable

27

WASHER, SEALING (12MM) (NOT AVAILABLE)

90451-205-000

Unavailable

28

CIRCLIP, OUTER (10MM) This part replaces 90601-200-000.

94510-10000

$1.49

28

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

29

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

29

SCREW, PAN (6X20)

93500-06020-0A

$1.49

30

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 2101301 to 5019831 This part replaces 98066-58710.

98066-58717

$2.44

30

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 2101301 to 5019831 This part replaces 98066-58714.

98066-58717

$2.44

30

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 2101301 to 5019831

98066-58717

$2.44

30

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 2101301 to 5019831 This part replaces 98066-58717-00.

98066-58717

$2.44

30

SPARK PLUG (D10HS) (NGK) (NOT AVAILABLE) | Use up to Engine SN 2100300 This part replaces 98066-60710.

98066-60714

Unavailable

30

SPARK PLUG (D10HS) (NGK) (NOT AVAILABLE) | Use up to Engine SN 2100300

98066-60714

Unavailable
