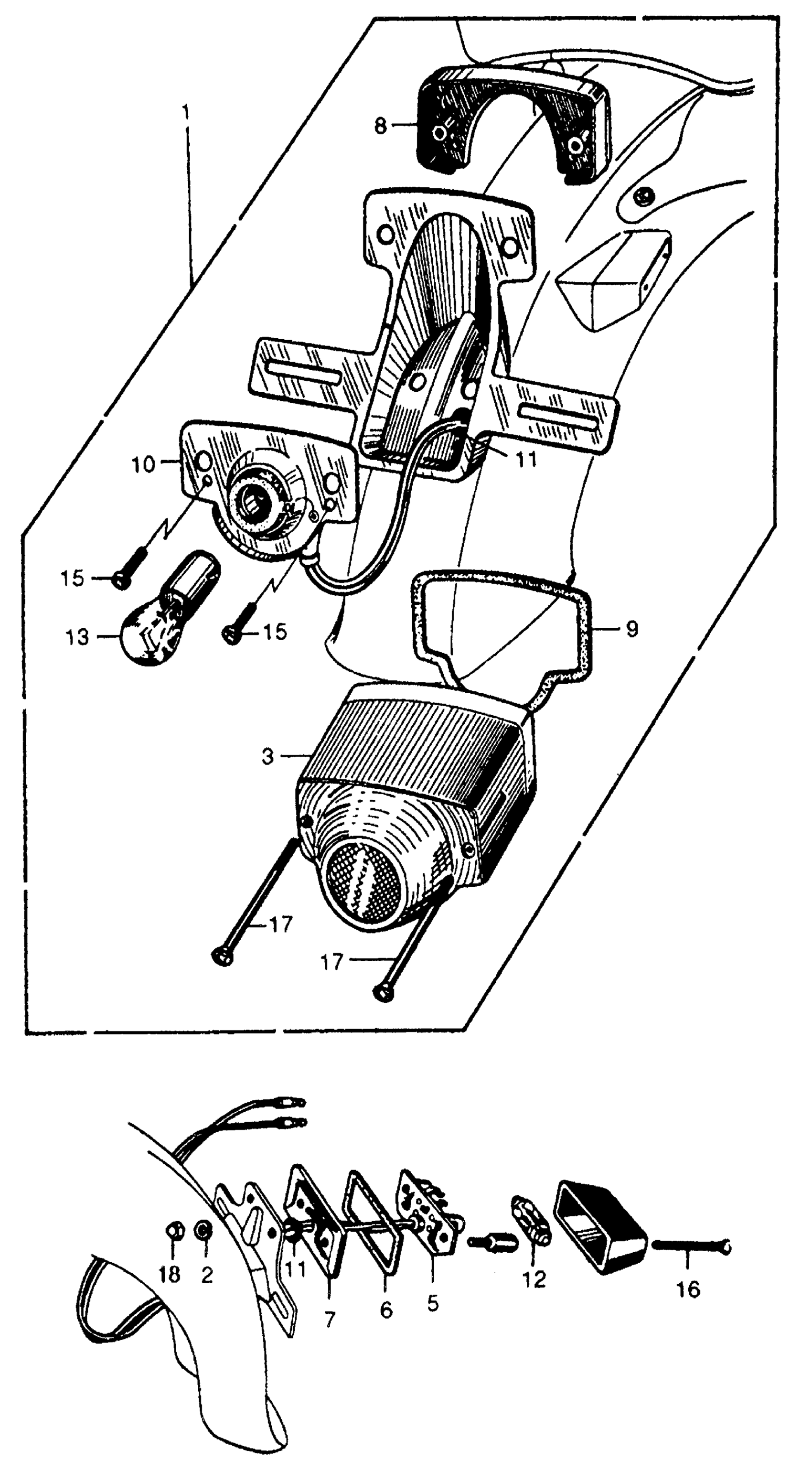

Honda CA77A MOTORCYCLE, JPN, VIN# CA77-100001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-268-601

Unavailable

2

WASHER, SPRING (4MM)

94111-04000

$1.49

3

LENS, TAILLIGHT

33701-268-680

Unavailable

5

SOCKET, TAILLIGHT (NOT AVAILABLE)

33703-262-000

Unavailable

6

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33704-255-000

Unavailable

7

PLATE, TAILLIGHT LENS HOLDER (NOT AVAILABLE)

33705-262-000

Unavailable

8

PLATE, TAILLIGHT LENS HOLDER

33705-268-670

Unavailable

9

GASKET, TAILLIGHT LENS

33709-268-810

Unavailable

10

SOCKET, TAILLIGHT (NA USE ALT:33700-262-810)

33710-262-820

Unavailable

10

SOCKET, TAILLIGHT (NOT AVAILABLE)

33710-268-610

Unavailable

11

GROMMET B, TAILLIGHT CABLE (NOT AVAILABLE)

33714-268-000

Unavailable

12

BULB, TAILLIGHT (12V8/4W) (STANLEY) (NOT AVAILABLE)

34906-259-000

Unavailable

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

15

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

15

SCREW, PAN (4X10)

93500-04010-0A

$1.49

15

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

17

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

17

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

17

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

17

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98

18

NUT, CAP (4MM) (NOT AVAILABLE)

94021-04020

Unavailable
