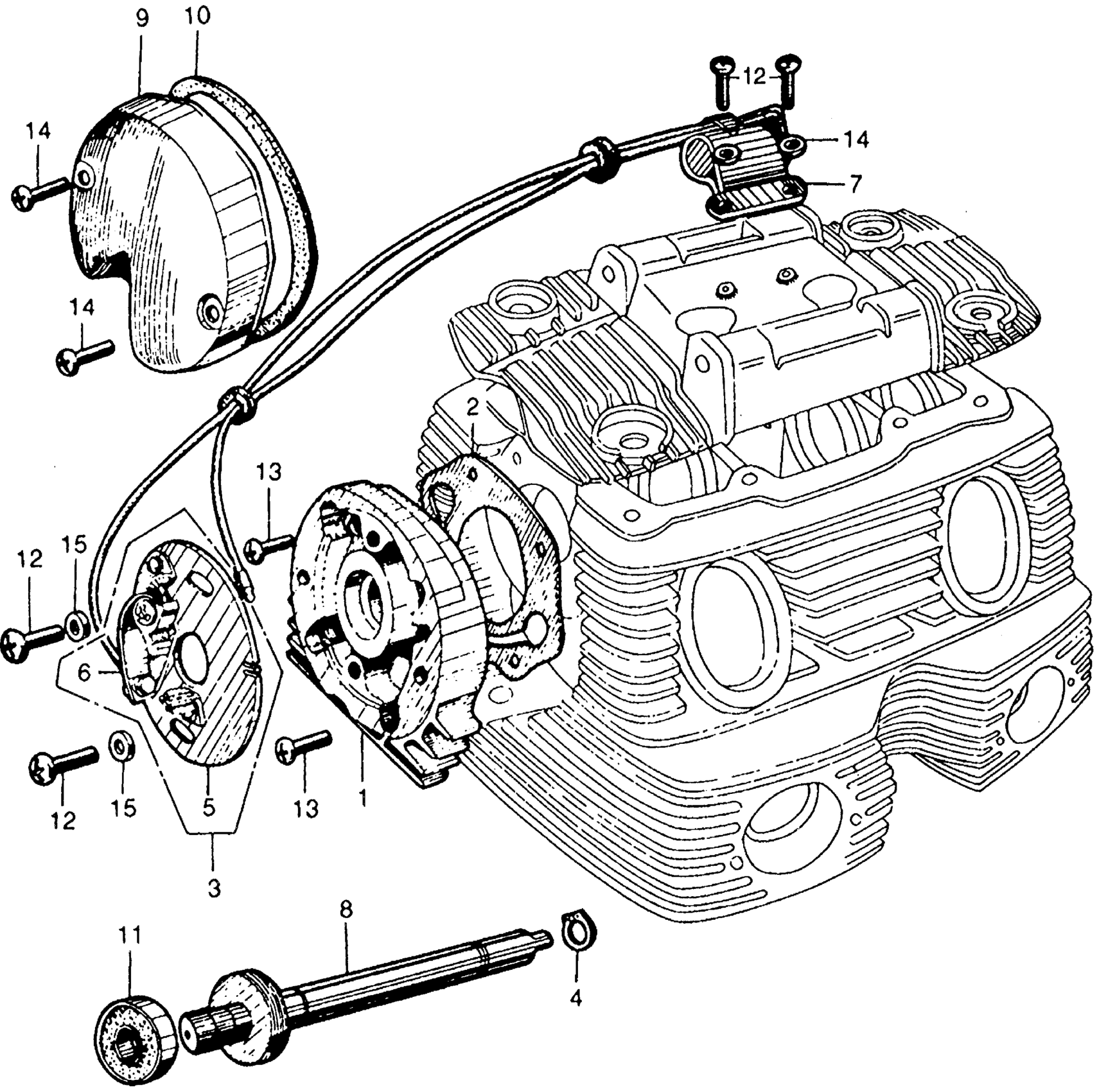

Honda CA77A MOTORCYCLE, JPN, VIN# CA77-100001 POINTS Diagram

#

Description
Price

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use up to Engine SN 0111400 This part replaces 12331-259-030.

12331-259-040

Unavailable

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 0210001 to 0210100

12331-259-040

Unavailable

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 0210101

12331-268-020

Unavailable

1

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 0312556 This part replaces 12331-268-030.

12331-268-020

Unavailable

2

GASKET, CYLINDER HEAD SIDE COVER (NOT AVAILABLE)

12391-258-000

Unavailable

3

POINTS ASSY. (NOT AVAILABLE) This part replaces 30200-259-043.

30200-259-044

Unavailable

3

POINTS ASSY. (NOT AVAILABLE)

30200-259-044

Unavailable

4

SET-RING (11MM) (NOT AVAILABLE)

90601-259-000

$3.59

5

PLATE, POINTS BASE (KOKUSAN DENKI) (NOT AVAILABLE)

30201-259-003

Unavailable

5

PLATE, POINTS BASE (DENSO)

30201-259-004

Unavailable

6

POINTS (KOKUSAN DENKI)

30202-259-003

Unavailable

6

POINTS (DENSO) (NOT AVAILABLE)

30202-259-004

Unavailable

7

CONDENSER (NOT AVAILABLE) | Use up to Engine SN 0110435

30250-259-014

Unavailable

7

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0110436 to 0110925 This part replaces 30250-259-024.

30250-259-044

Unavailable

7

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0110436 to 0110925 This part replaces 30250-259-034.

30250-259-044

Unavailable

7

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0110926 to 0111400 This part replaces 30250-259-043.

30250-259-044

Unavailable

7

CONDENSER (NOT AVAILABLE) | Use from Engine SN 0110926

30250-259-044

Unavailable

8

SHAFT, POINTS (NOT AVAILABLE)

30310-259-030

Unavailable

9

COVER, POINT | Use up to Engine SN 0111400 This part replaces 30371-259-010.

30371-268-010

Unavailable

9

COVER, POINT | Use from Engine SN 0210001 This part replaces 30371-259-020.

30371-268-020

Unavailable

9

COVER, POINT | Use up to Engine SN 0111400

30371-268-010

Unavailable

9

COVER, POINT | Use from Engine SN 0210001

30371-268-020

Unavailable

10

GASKET, POINTS COVER (NOT AVAILABLE) | Use up to Engine SN 0111400

30391-259-010

Unavailable

10

GASKET, POINTS COVER (NOT AVAILABLE) | Use from Engine SN 0210001

30391-259-020

Unavailable

11

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

11

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

11

OIL SEAL (16X28X7)

91204-259-003

$5.60

11

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

12

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

12

SCREW, PAN (5X12)

93500-05012-0A

$1.49

13

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

13

SCREW, PAN (6X18)

93500-06018-0A

$1.49

14

SCREW, OVAL (5X30)

93700-05030

Unavailable

15

WASHER, PLAIN (5MM)

94101-05000

$1.49
