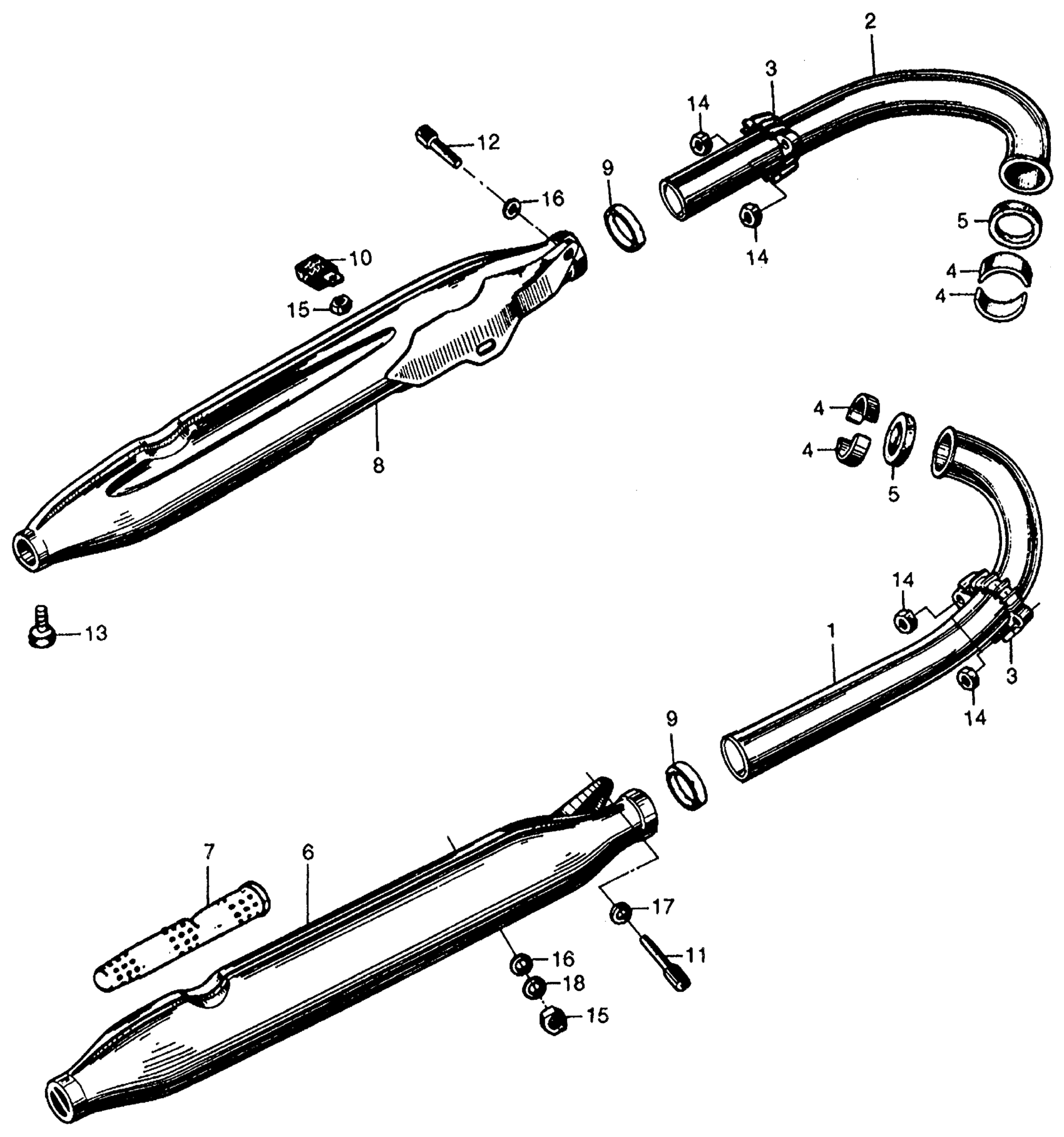

Honda CA77A MOTORCYCLE, JPN, VIN# CA77-100001 MUFFLER Diagram

#

Description
Price

1

PIPE, R. EX. (NOT AVAILABLE)

18210-259-000

Unavailable

2

PIPE, L. EX. (NOT AVAILABLE)

18220-259-000

Unavailable

3

JOINT, EX. PIPE | Use up to Frame SN 1036469

18231-259-000

Unavailable

3

JOINT, EX. PIPE | Use from Frame SN 1036470

18231-268-000

Unavailable

4

COLLAR, EX. PIPE JOINT (NOT AVAILABLE) | Use up to Frame SN 1036469

18233-259-000

Unavailable

4

COLLAR, EX. PIPE JOINT (NOT AVAILABLE) | Use from Frame SN 1036470

18233-273-000

Unavailable

5

GASKET, EX. PIPE

18291-MM5-860

$5.17

5

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

6

MUFFLER, R. (NOT AVAILABLE)

183A1-259-020

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) This part replaces 18310-259-020.

183A1-259-020

Unavailable

6

MUFFLER, R. (NOT AVAILABLE) | Use up to Frame SN 1036469 This part replaces 18310-259-027.

183A1-259-020

Unavailable

7

MUFFLER, DIFFUSER (NOT AVAILABLE) | Use up to Frame SN 1036469

18311-259-010

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 0312350 to 1036469 This part replaces 18033-259-030.

18033-259-037

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 0312350 to 1036469

18033-259-037

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use up to Frame SN 0010650 This part replaces 18330-259-010.

18033-259-037

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use up to Frame SN 0010650 This part replaces 18330-259-017.

18033-259-037

Unavailable

8

MUFFLER, L. (NOT AVAILABLE) | Use from Frame SN 0010651 to 0312349 This part replaces 18330-259-020.

18400-272-000

Unavailable

8

MUFFLER (NOT AVAILABLE) | Use from Frame SN 0312350 to 1036469 This part replaces 18330-259-030.

18033-259-037

Unavailable

8

MUFFLER, L. (NOT AVAILABLE) | Use from Frame SN 0010651 to 0312349

18400-272-000

Unavailable

9

GASKET, MUFFLER (NOT AVAILABLE) | Use from Frame SN 0312350 to 1036469

18391-254-010

Unavailable

9

GASKET, MUFFLER (NOT AVAILABLE) | Use up to Frame SN 0312349

18391-259-000

Unavailable

10

RUBBER, SIDE STAND STOPPER (NOT AVAILABLE)

50543-259-000

Unavailable

11

BOLT, R. MUFFLER SETTING (NOT AVAILABLE)

90157-259-000

Unavailable

12

BOLT, L. MUFFLER SETTING (NOT AVAILABLE) | Use up to Frame SN 1036469

90158-259-000

Unavailable

12

BOLT, L. MUFFLER SETTING (NOT AVAILABLE) | Use from Frame SN 1036470

90158-271-000

Unavailable

13

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

13

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

13

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

15

NUT, HEX. (10MM)

94030-10000

$1.49

15

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

16

WASHER, PLAIN (10MM)

94101-10000

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

WASHER, SPRING (8MM)

94111-10000

$1.49
