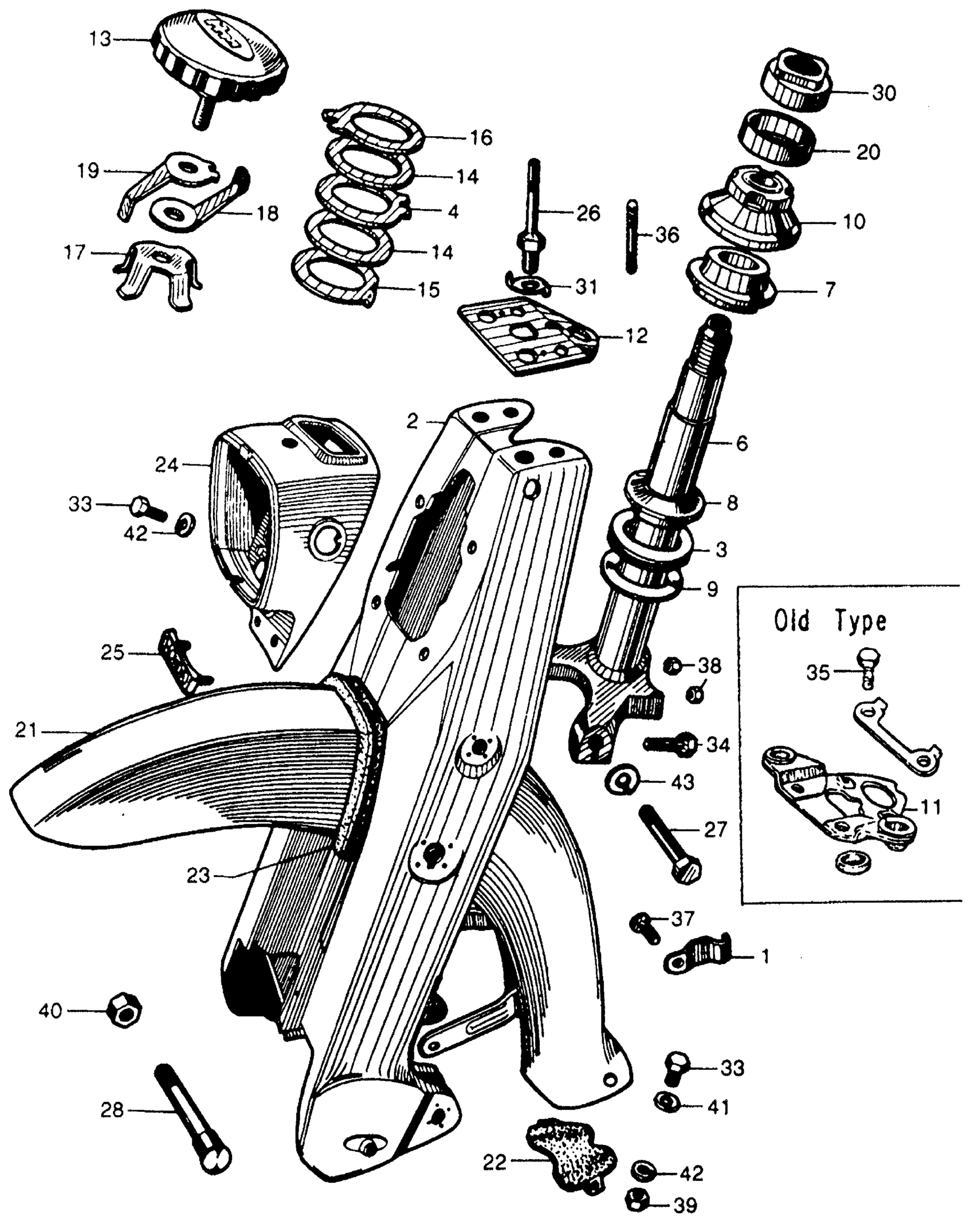

Honda CA77A MOTORCYCLE, JPN, VIN# CA77-100001 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

CLIP, SPEEDOMETER CABLE (NOT AVAILABLE)

44852-253-000

Unavailable

2

FORK, FR. (NOT AVAILABLE)

51100-271-000Z

Unavailable

3

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

3

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

4

PLATE, STEERING DAMPER PRESSURE (NOT AVAILABLE)

52769-250-010

Unavailable

6

STEM, STEERING (NOT AVAILABLE) | Use up to Frame SN 0010900

53200-257-000Z

Unavailable

6

STEM, STEERING *NH1* (BLACK) | Use from Frame SN 0010901

53200-259-000B

Unavailable

7

RACE, STEERING CONE (LOWER) (NOT AVAILABLE)

53211-253-305

Unavailable

8

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

8

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

8

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

9

BUSHING, FR. FORK (LOWER) (NOT AVAILABLE)

51215-250-000

Unavailable

10

THREAD, STEERING HEAD TOP

53220-250-010

Unavailable

11

PLATE, TOP BRIDGE | Use up to Frame SN 0020902

53230-257-000Z

Unavailable

12

PLATE, TOP BRIDGE

53231-271-000Z

Unavailable

13

KNOB, STEERING DAMPER (NOT AVAILABLE)

53740-257-000

Unavailable

14

DISK, FRICTION STEERING DAMPER (NOT AVAILABLE)

53751-250-000

Unavailable

15

PLATE, STEERING DAMPER (LOWER) (NOT AVAILABLE)

53761-250-030

Unavailable

16

PLATE, STEERING DAMPER (LOWER) (NOT AVAILABLE)

53762-250-020

Unavailable

17

SPRING, STEERING DAMPER (NOT AVAILABLE)

53763-258-000

Unavailable

18

LOCK, STEERING KNOB (NOT AVAILABLE)

53765-257-000

Unavailable

19

LOCK, STEERING DAMPER PLATE (NOT AVAILABLE)

53767-258-000

Unavailable

20

RING, FRICTION STEERING DAMPER (NOT AVAILABLE)

53768-250-000

Unavailable

21

FENDER, FR. (NOT AVAILABLE)

61100-271-000Z

Unavailable

22

SPLASH GUARD, FR. (NOT AVAILABLE)

61114-250-000

Unavailable

23

GASKET, FR. FENDER (NOT AVAILABLE) | Use up to Frame SN 0020902

61191-250-000

Unavailable

23

GASKET, FR. FENDER (NOT AVAILABLE)

61191-271-000

Unavailable

24

CASE, HEADLIGHT (NOT AVAILABLE) | Use up to Frame SN 0314731 This part replaces 61301-262-000Z.

61301-271-000Z

Unavailable

24

CASE, HEADLIGHT (NOT AVAILABLE)

61301-271-000Z

Unavailable

25

EMBLEM, HEADLIGHT CASE (NOT AVAILABLE)

87101-271-000

Unavailable

26

BOLT, HANDLEBAR HOLDER SETTING (NOT AVAILABLE) | Use up to Frame SN 1025331

90117-257-000

Unavailable

26

BOLT, HANDLEBAR HOLDER SETTING (NOT AVAILABLE) | Use from Frame SN 1025332

90117-271-000

Unavailable

27

BOLT, FR. FORK SUPPORTING (NOT AVAILABLE)

90123-250-010

Unavailable

28

BOLT, FR. FORK (UPPER) (NOT AVAILABLE)

90147-250-000

Unavailable

30

NUT, STEERING STEM (NOT AVAILABLE)

90304-250-020

Unavailable

31

WASHER, TOP BRIDGE (NOT AVAILABLE)

90532-257-000

Unavailable

33

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

33

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

33

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

34

BOLT, HEX. (8X30) This part replaces 92000-08030.

92101-08030-0A

$1.49

34

BOLT, HEX. (8X30) This part replaces 92000-08030-0A.

92101-08030-0A

$1.49

34

BOLT, HEX. (8X30) This part replaces 92100-08030-0A.

92101-08030-0A

$1.49

34

BOLT, HEX. (8X30)

92101-08030-0A

$1.49

35

BOLT, HEX. (12X25) This part replaces 92000-12025.

92101-12025-0A

$2.43

35

BOLT, HEX. (12X25) This part replaces 92000-12025-0A.

92101-12025-0A

$2.43

35

BOLT, HEX. (12X25)

92101-12025-0A

$2.43

36

BOLT, CAP (8X58) (NOT AVAILABLE) | Use from Frame SN 0020903

92500-08058-02

Unavailable

36

BOLT, STUD (8X60) (NOT AVAILABLE) This part replaces 92700-08060.

92700-08060-0B

Unavailable

36

BOLT, STUD (8X60) (NOT AVAILABLE) | Use up to Frame SN 0020902

92700-08060-0B

Unavailable

37

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

37

SCREW, PAN (5X10)

93500-05010-0A

$1.49

37

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

37

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

38

NUT, HEX. (4MM) This part replaces 94001-04000.

94001-04000-0S

$1.49

38

NUT, HEX. (4MM)

94001-04000-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM)

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

40

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

40

NUT, HEX. (10MM)

94030-10000

$1.49

40

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

41

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

41

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

41

WASHER, PLAIN (6MM)

94101-06800

$1.49

42

WASHER, SPRING (6MM)

94111-06000

$1.49

43

WASHER, SPRING (12MM)

94111-12000

$1.49
