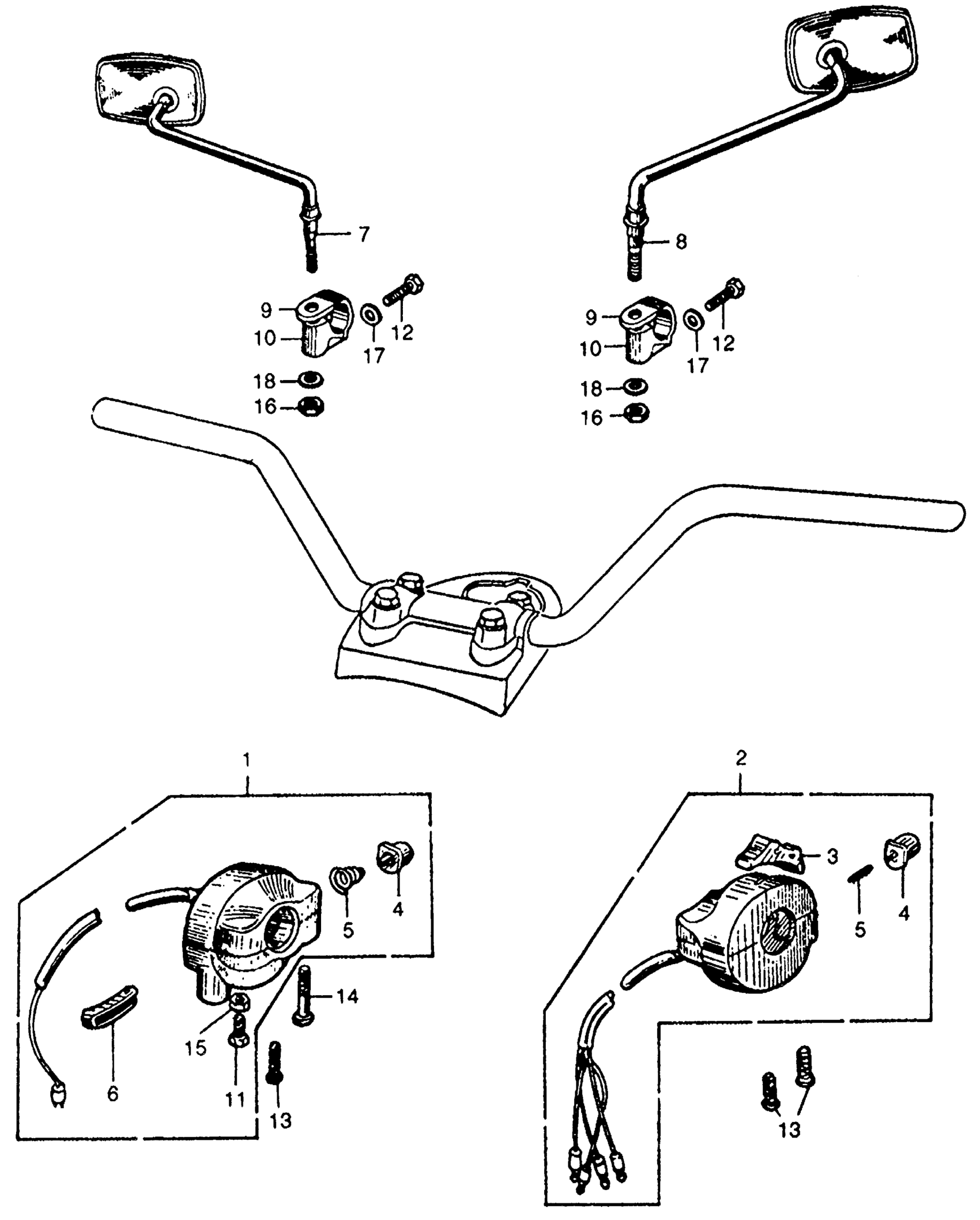

Honda CA77A MOTORCYCLE, JPN, VIN# CA77-100001 DIMMER SWITCH + STARTER SWITCH (1) + MIRRORS Diagram

#

Description
Price

1

SWITCH ASSY., STARTER (NOT AVAILABLE)

35250-281-000

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-212-000.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-223-000.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-257-010.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-268-810.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-271-000.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-272-000.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895 This part replaces 35300-281-000.

35300-284-810

Unavailable

2

SWITCH, DIMMER (NOT AVAILABLE) | Use up to Frame SN 0310895

35300-284-810

Unavailable

3

KNOB, DIMMER SWITCH | Use up to Frame SN 0310895

35316-259-300

Unavailable

4

BUTTON, HORN SWITCH PUSH | Use up to Frame SN 0310895

35317-259-300

Unavailable

5

SPRING, BUTTON | Use up to Frame SN 0310895

35318-259-000

$5.33

6

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE) | Use up to Frame SN 0310895

53163-205-010

Unavailable

7

MIRROR, R.

88110-041-000

$41.02

7

MIRROR, R. This part replaces 88110-200-000.

88110-041-000

$41.02

7

MIRROR, R. (NOT AVAILABLE) | Use up to Frame SN 0314731

88110-257-810

Unavailable

7

MIRROR, R. This part replaces 88110-263-000.

88110-041-000

$41.02

8

MIRROR, L.

88120-041-811

Unavailable

8

MIRROR, L. This part replaces 88120-200-810.

88120-041-811

Unavailable

8

MIRROR, L. (NOT AVAILABLE) | Use up to Frame SN 0314731

88120-257-810

Unavailable

8

MIRROR, L. This part replaces 88120-263-810.

88120-041-811

Unavailable

9

BRACKET, MIRROR (UPPER) (NOT AVAILABLE) | Use up to Frame SN 0314731

88131-257-810

Unavailable

10

BRACKET, MIRROR (LOWER) (NOT AVAILABLE) | Use up to Frame SN 0314731

88132-257-810

Unavailable

11

SCREW, THROTTLE GRIP ADJUSTING (NOT AVAILABLE) | Use up to Frame SN 0310895

90124-268-000

Unavailable

12

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

12

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

13

SCREW, PAN (5X16)

93500-05016-0B

$1.49

13

SCREW, PAN (5X16) This part replaces 93500-05016-02.

93500-05016-0B

$1.49

14

SCREW, PAN (5X25)

93500-05025-0B

$1.49

14

SCREW, PAN (5X25) This part replaces 93500-05025-02.

93500-05025-0B

$1.49

15

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

15

NUT, HEX. (5MM)

94001-05000-0S

$2.74

16

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

16

NUT, HEX. (8MM)

94030-08000

$1.49

16

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, PLAIN (8MM)

94101-08000

$1.49
