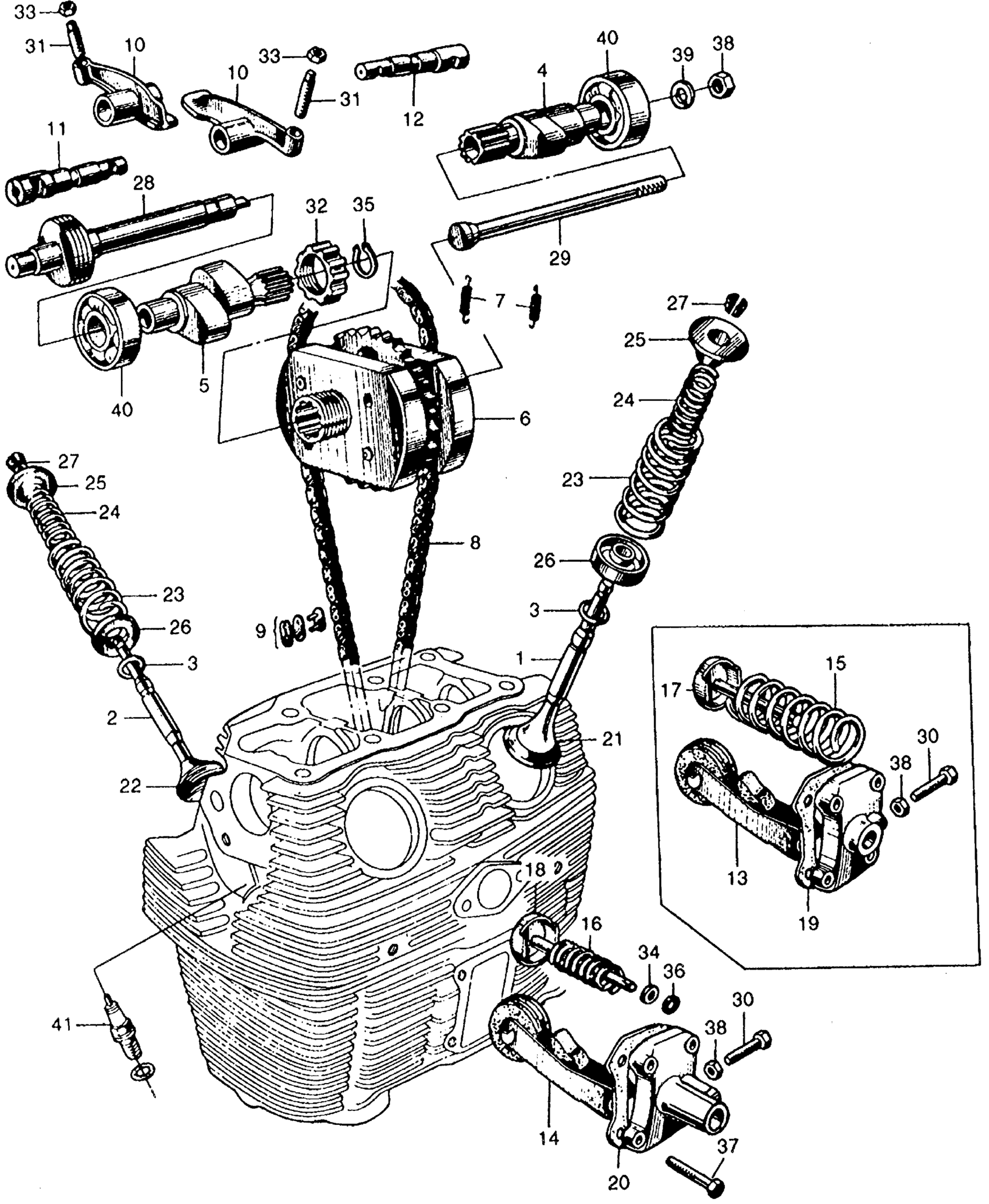

Honda CA77A MOTORCYCLE, JPN, VIN# CA77-100001 CAMSHAFT + VALVE + CAM CHAIN Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-259-000

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-259-000

Unavailable

3

CLIP, VALVE GUIDE

12211-250-310

$4.39

4

CAMSHAFT, R. (NOT AVAILABLE) | Use from Engine SN 0110001 to 0210000

14111-259-020

Unavailable

4

CAMSHAFT, R. (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109000

14111-259-030

Unavailable

4

CAMSHAFT, R. (NOT AVAILABLE) | Use from Engine SN 1000001 This part replaces 14111-259-040.

14111-259-050

Unavailable

4

CAMSHAFT, R. (NOT AVAILABLE) | Use from Engine SN 1000001

14111-259-050

Unavailable

5

CAMSHAFT, L. (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109000 This part replaces 14121-259-030.

14121-259-040

Unavailable

5

CAMSHAFT, L. (NOT AVAILABLE) | Use from Engine SN 0210001

14121-259-040

Unavailable

6

SPROCKET, CAM (NOT AVAILABLE)

14320-259-040

Unavailable

7

SPRING, GOVERNOR (NOT AVAILABLE)

14329-259-310

Unavailable

8

CHAIN, CAM (DK219, 94L) (NOT AVAILABLE)

14401-259-000

Unavailable

8

CHAIN, CAM (DK219, 94L) (NOT AVAILABLE) This part replaces 14401-259-003.

14401-259-000

Unavailable

9

JOINT, CAM CHAIN (DK219)

14411-259-000

Unavailable

10

ARM, VALVE ROCKER

14431-268-305

Unavailable

11

PIN, IN. ROCKER ARM (NOT AVAILABLE)

14451-259-010

$105.15

12

PIN, EX. ROCKER ARM (NOT AVAILABLE)

14461-259-010

$105.15

13

TENSION, CAM CHAIN (NOT AVAILABLE) | Use up to Engine SN 1036506

14500-259-000

Unavailable

14

TENSION, CAM CHAIN | Use from Engine SN 1036507 This part replaces 14500-259-010.

14500-268-020

Unavailable

14

TENSION, CAM CHAIN | Use from Engine SN 1036507

14500-268-020

Unavailable

15

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 1036506

14541-258-010

Unavailable

16

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 1036507

14541-259-000

Unavailable

17

BAR, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 1036506

14551-259-000

Unavailable

18

BAR, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 1036507

14551-259-010

Unavailable

19

GASKET | Use up to Engine SN 1036506 This part replaces 14591-258-000.

14591-258-306

Unavailable

20

GASKET, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 1036507

14591-259-000

Unavailable

21

VALVE, IN. (NOT AVAILABLE)

14711-259-010

$49.93

22

VALVE, EX. | Use up to Engine SN 1025860 This part replaces 14721-258-000.

14721-268-000

Unavailable

22

VALVE, EX. (NOT AVAILABLE)

14721-259-000

Unavailable

22

VALVE, EX.

14721-268-000

Unavailable

23

SPRING, VALVE (OUTER)

14751-259-010

$19.25

24

SPRING, VALVE (INNER) (NOT AVAILABLE) This part replaces 14761-258-020.

14761-265-010

$14.18

24

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-259-010

Unavailable

24

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-265-010

$14.18

25

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-259-000

Unavailable

26

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-259-000

Unavailable

27

COTTER, VALVE

14781-253-010

Unavailable

28

SHAFT, POINTS (NOT AVAILABLE) | Use up to Engine SN 0403384

30310-259-030

Unavailable

28

SHAFT, POINTS | Use from Engine SN 0403385

30310-259-040

Unavailable

29

BOLT, CAMSHAFT LOCK (NOT AVAILABLE)

90008-259-000

Unavailable

30

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-259-000

Unavailable

31

SCREW, TAPPET ADJ. (NOT AVAILABLE)

90012-258-000

Unavailable

32

NUT, CAMSHAFT LOCKING (NOT AVAILABLE) | Use up to Engine SN 0213875

90205-259-000

Unavailable

32

NUT, CAMSHAFT LOCKING | Use from Engine SN 0213876

90205-259-010

Unavailable

33

NUT, TAPPET ADJ.

90206-250-000

$2.94

34

WASHER (8MM) (NOT AVAILABLE) | Use from Engine SN 1036507 This part replaces 90445-259-000.

90443-844-000

$1.49

35

SET-RING (11MM) (NOT AVAILABLE)

90601-259-000

$3.59

36

O-RING (7.4X2.4MM) (NOT AVAILABLE)

91306-259-000

Unavailable

37

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

37

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

38

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM)

94001-06200-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

39

WASHER, SPRING (6MM)

94111-06000

$1.49

40

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

40

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

41

SPARK PLUG (C10H) (NGK) (NOT AVAILABLE)

98056-60410

Unavailable

41

SPARK PLUG (D10HS) (NGK) (NOT AVAILABLE) This part replaces 98066-60710.

98066-60714

Unavailable

41

SPARK PLUG (D10HS) (NGK) (NOT AVAILABLE)

98066-60714

Unavailable
