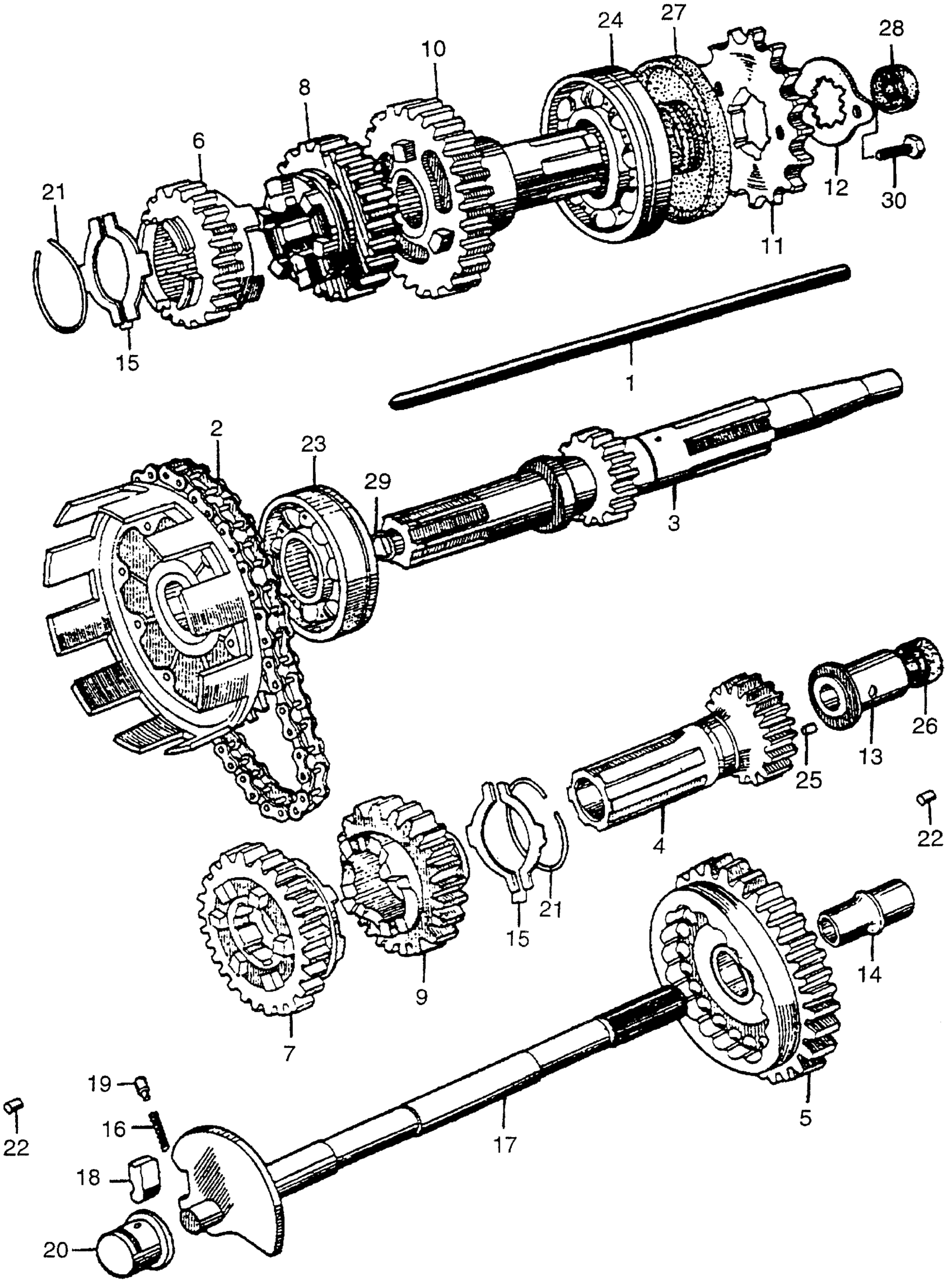

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 TRANSMISSION Diagram

#

Description
Price

1

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-259-010

Unavailable

2

CHAIN, PRIMARY DRIVE (NOT AVAILABLE)

23120-268-000

Unavailable

3

MAINSHAFT, TRANSMISSION (16T) (NOT AVAILABLE)

23211-259-010

Unavailable

4

COUNTERSHAFT (21T) (NOT AVAILABLE)

23221-255-000

Unavailable

5

GEAR, LOW (35T) (NOT AVAILABLE) | Use up to Engine SN 1000330

23420-253-000

Unavailable

5

GEAR (35T) | Use from Engine SN 1000331

23420-253-020

Unavailable

6

GEAR, SECOND MAINSHAFT (23T)

23430-262-000

Unavailable

7

GEAR, SECOND COUNTERSHAFT (28T) (NOT AVAILABLE) This part replaces 23441-250-010.

23441-250-020

Unavailable

7

GEAR, SECOND COUNTERSHAFT (28T) (NOT AVAILABLE)

23441-250-020

Unavailable

8

GEAR, THIRD MAINSHAFT (27T) This part replaces 23451-250-010.

23451-250-020

Unavailable

8

GEAR, THIRD MAINSHAFT (27T)

23451-250-020

Unavailable

9

GEAR, THIRD COUNTERSHAFT (24T)

23461-262-000

Unavailable

10

GEAR, TOP (30T)

23470-264-010

Unavailable

11

SPROCKET, DRIVE (14T) (NOT AVAILABLE) This part replaces 23801-259-000.

23801-259-010

Unavailable

11

SPROCKET, DRIVE (14T) (NOT AVAILABLE)

23801-259-010

Unavailable

12

PLATE, DRIVE SPROCKET (NOT AVAILABLE) This part replaces 23811-259-000.

23811-259-010

Unavailable

12

PLATE, DRIVE SPROCKET (NOT AVAILABLE)

23811-259-010

Unavailable

13

BUSHING (14MM) (NOT AVAILABLE)

23931-259-010

Unavailable

14

BUSHING C (14MM) (NOT AVAILABLE) | Use up to Engine SN 1000330

23933-253-000

Unavailable

14

BUSHING C (14MM) (NOT AVAILABLE) | Use from Engine SN 1000331

23933-259-010

Unavailable

15

COTTER, GEAR (NOT AVAILABLE)

23941-250-010

Unavailable

15

COTTER, GEAR (NOT AVAILABLE) This part replaces 23941-250-315.

23941-259-305

Unavailable

15

COTTER, GEAR (NOT AVAILABLE)

23941-259-305

Unavailable

15

COTTER, GEAR (NOT AVAILABLE)

23943-259-305

Unavailable

16

SPRING, KICK SPINDLE PAWL (NOT AVAILABLE)

28228-250-010

Unavailable

17

SPINDLE, KICK STARTER

28250-259-000

Unavailable

17

SPINDLE, KICK STARTER | Use up to Engine SN 1000330 This part replaces 28251-259-000.

28250-259-000

Unavailable

18

PAWL, SPINDLE (NOT AVAILABLE)

28255-250-020

Unavailable

19

PIN, KICK SPINDLE PAWL (NOT AVAILABLE)

28256-250-000

Unavailable

20

BUSHING, KICK SPINDLE METAL (NOT AVAILABLE)

28258-259-010

Unavailable

21

CIRCLIP (22MM) (NOT AVAILABLE)

90602-250-000

Unavailable

22

PIN, KNOCK (7X12) (NOT AVAILABLE)

90705-259-020

Unavailable

23

BEARING, RADIAL BALL (6305) (NTN CORP.) This part replaces 91003-259-000.

91003-KY2-003

Unavailable

24

BEARING, RADIAL BALL (6206) (NOT AVAILABLE) This part replaces 91004-259-000.

91006-422-004

Unavailable

25

ROLLER (5X6.25)

91102-253-000

Unavailable

26

OIL SEAL (14X25X7)

91202-250-000

Unavailable

27

OIL SEAL (30X62X8)

91203-259-000

Unavailable

28

OIL SEAL (8216) (TC-TYPE)

91205-259-000

Unavailable

29

O-RING (12.5X2.2)

91303-634-010

$5.69

29

O-RING (12.5X2.2) This part replaces 91305-259-000.

91303-634-010

$5.69

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
