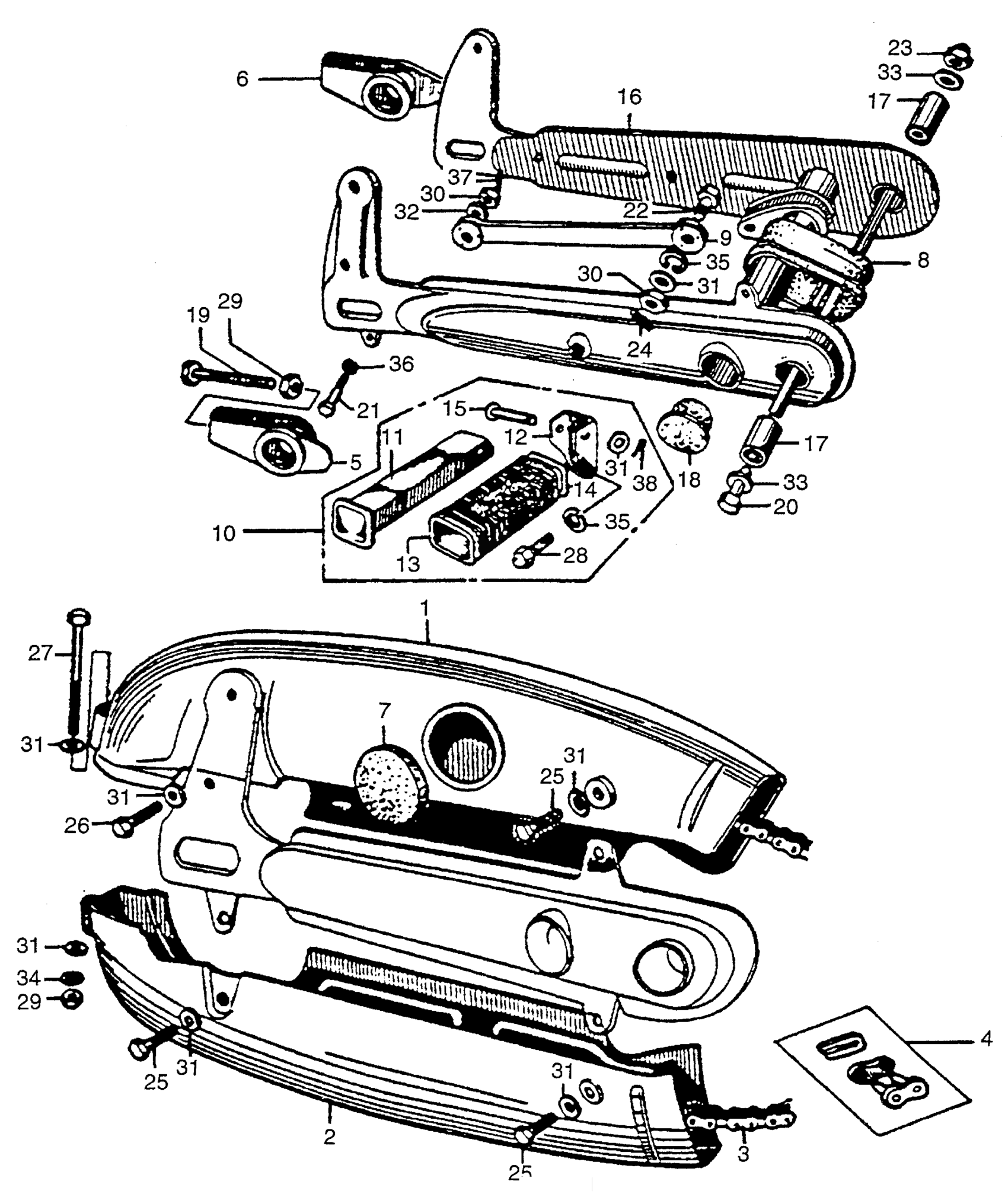

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (UPPER) (NOT AVAILABLE) | Use up to Frame SN 1000330

40510-253-000Z

Unavailable

1

CASE, DRIVE CHAIN (UPPER) (NOT AVAILABLE) | Use from Frame SN 1000331

40510-271-000Z

Unavailable

2

CASE, DRIVE CHAIN (LOWER) (NOT AVAILABLE) | Use up to Frame SN 1000330

40520-253-000Z

Unavailable

2

CASE, DRIVE CHAIN (LOWER) (NOT AVAILABLE) | Use from Frame SN 1000331

40520-271-000Z

Unavailable

3

CHAIN, DRIVE (DK525 96L) (NOT AVAILABLE)

40530-255-000

Unavailable

4

MASTER LINK (NOT AVAILABLE)

40531-253-000

Unavailable

5

ADJUSTER, R. DRIVE CHAIN (NOT AVAILABLE)

40543-253-010

Unavailable

6

ADJUSTER, L. DRIVE CHAIN (NOT AVAILABLE)

40544-253-010

Unavailable

6

ADJUSTER, L. DRIVE CHAIN (NOT AVAILABLE)

40544-271-000

Unavailable

7

CAP, CHAIN CASE (NOT AVAILABLE)

40545-250-000

Unavailable

8

GASKET, DRIVE CHAIN CASE (NOT AVAILABLE)

40591-259-000

Unavailable

9

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43432-253-000

Unavailable

10

STEP ASSY., PILLION (NOT AVAILABLE) | Use up to Frame SN 1000330

50700-257-010

Unavailable

10

STEP ASSY., PILLION (NOT AVAILABLE) | Use from Frame SN 1000331

50700-272-000

Unavailable

11

BAR B, PILLION STEP | Use up to Frame SN 1000330 This part replaces 50701-024-010.

95015-62000

$30.68

11

BAR, PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000331

50706-257-000

Unavailable

11

BAR B, PILLION STEP | Use up to Frame SN 1000330 This part replaces 50715-283-000.

95015-62000

$30.68

11

BAR B, PILLION STEP | Use up to Frame SN 1000330

95015-62000

$30.68

12

STAY, PILLION | Use up to Frame SN 1000330 This part replaces 50702-257-010.

50702-256-000

Unavailable

13

RUBBER, PILLION STEP | Use up to Frame SN 1000330 This part replaces 50705-024-000.

95011-31000

$7.16

13

RUBBER, PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000331

50718-257-000

Unavailable

13

RUBBER, PILLION STEP | Use up to Frame SN 1000330 This part replaces 50731-024-000.

95011-31000

$7.16

13

RUBBER, PILLION STEP | Use up to Frame SN 1000330

95011-31000

$7.16

14

WASHER, FOOTPEG | Use up to Frame SN 1000330 This part replaces 50712-024-000.

95015-91000

$1.31

14

SEAT, PILLION STEP RUBBER (NOT AVAILABLE) | Use from Frame SN 1000331

50716-257-000

Unavailable

14

WASHER, FOOTPEG | Use up to Frame SN 1000330

95015-91000

$1.31

15

PIN, PILLION STEP (NOT AVAILABLE) | Use up to Frame SN 1000330

50713-257-000

Unavailable

15

PIN A, PILLION STEP | Use from Frame SN 1000331 This part replaces 50715-024-000.

95015-81000

$2.21

15

PIN A, PILLION STEP | Use from Frame SN 1000331

95015-81000

$2.21

16

SWINGARM | Use up to Frame SN 1000330

52100-255-020Z

Unavailable

16

SWINGARM | Use from Frame SN 1000331

52100-272-000Z

Unavailable

17

BUSH, RUBBER SWINGARM PIVOT (N/A: SEE ASSEMBLY)

52119-250-000

Unavailable

18

CAP, SIDE CROSSMEMBER (NOT AVAILABLE)

52161-253-000

Unavailable

19

BOLT, CHAIN ADJUST

90119-253-000

$15.23

20

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-250-000

Unavailable

21

BOLT, SWINGARM PANEL STOPPER (NOT AVAILABLE)

90127-253-000

Unavailable

22

BOLT, SWINGARM BRAKE STOPPER (NOT AVAILABLE)

90133-253-010

Unavailable

23

NUT, SWINGARM (NOT AVAILABLE)

90308-250-000

Unavailable

24

CLIP, LATCH (10MM) (NOT AVAILABLE)

90652-253-000

Unavailable

25

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92000-06016-0B.

92101-06016-0B

$1.49

26

BOLT, HEX. (6X16) This part replaces 92000-06016-02.

92101-06016-0B

$1.49

26

BOLT, HEX. (6X16)

92101-06016-0B

$1.49

27

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

27

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

27

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

28

BOLT, CAP (10X20) This part replaces 92500-10020-02.

92500-10020-0B

Unavailable

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

30

NUT, HEX. (10MM)

94002-10000-0S

$4.06

30

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, PLAIN (10MM)

94101-10000

$1.49

33

WASHER, PLAIN (12MM)

94101-12000

$1.49

34

WASHER, SPRING (6MM)

94111-06000

$1.49

35

WASHER, SPRING (8MM)

94111-10000

$1.49

36

WASHER, SPRING (12MM)

94111-12000

$1.49

37

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

37

PIN, COTTER (1.6X25)

94201-16250

$1.49

38

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$1.49

38

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

38

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$1.49

38

PIN, COTTER (1.6X25)

94201-16250

$1.49
