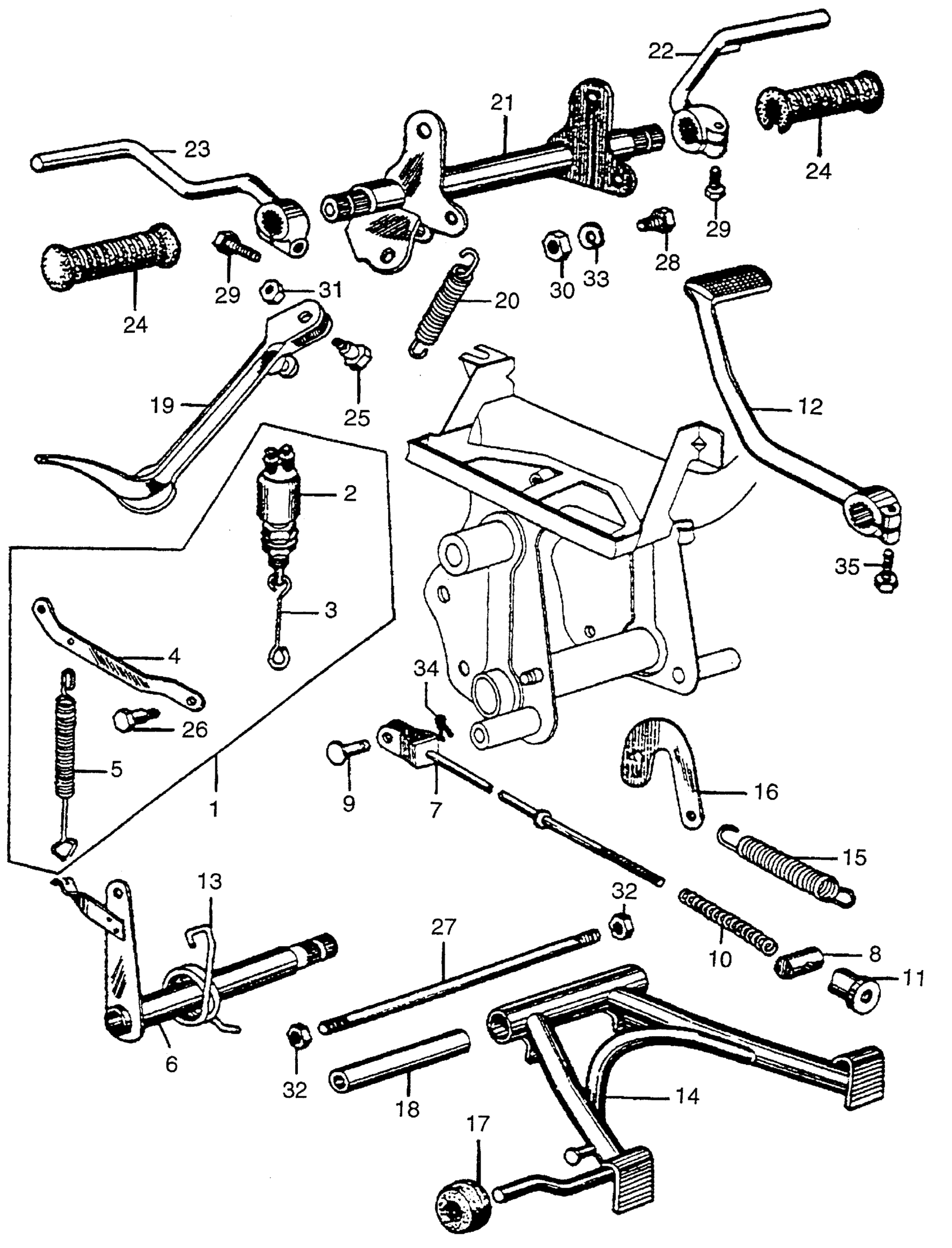

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 STAND Diagram

#

Description
Price

1

SWITCH ASSY., STOP LAMP (NOT AVAILABLE) This part replaces 35350-259-000.

35350-271-000

Unavailable

1

SWITCH ASSY., STOP LAMP (NOT AVAILABLE)

35350-271-000

Unavailable

2

SWITCH ASSY., STOP LAMP (NOT AVAILABLE)

35351-259-000

Unavailable

3

ROD, STOP SWITCH (NOT AVAILABLE)

35355-259-000

Unavailable

4

ARM, STOP SWITCH (NOT AVAILABLE)

35356-259-000

Unavailable

5

SPRING, STOP SWITCH (NOT AVAILABLE) | Use up to Frame SN 1000330

35357-253-000

Unavailable

5

SPRING, STOP SWITCH (NOT AVAILABLE) | Use from Frame SN 1000331

35357-271-000

Unavailable

6

SPINDLE, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 1000330

43440-259-010

Unavailable

6

SPINDLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1000331

43440-271-000

Unavailable

7

ROD, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 0310200

43450-259-000

Unavailable

7

ROD, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0310201

43450-259-010

Unavailable

8

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

8

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

8

JOINT, BRAKE ARM

95015-32001

$1.49

9

PIN, BRAKE ROD JOINT (NOT AVAILABLE)

43471-259-000

Unavailable

10

SPRING, RR. BRAKE (NOT AVAILABLE)

43472-259-000

Unavailable

11

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

11

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

12

PEDAL, BRAKE (NOT AVAILABLE)

46500-272-000

Unavailable

13

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-259-000

Unavailable

13

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-259-010

Unavailable

14

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-272-000B

Unavailable

15

SPRING, MAIN STAND (NOT AVAILABLE)

50522-250-000

Unavailable

16

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-259-000

Unavailable

17

RUBBER, MAIN STAND STOPPER (NOT AVAILABLE)

50524-259-000

Unavailable

18

COLLAR, MAIN STAND DISTANCE (NOT AVAILABLE)

50525-259-000

Unavailable

19

BAR, SIDE STAND (NOT AVAILABLE)

50530-259-000

Unavailable

20

SPRING, SIDE STAND (NOT AVAILABLE)

50542-259-000

Unavailable

21

FIXING, STEP BAR *NH1* (BLACK) (NOT AVAILABLE)

50610-259-010B

Unavailable

22

BAR, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50630-259-010B

Unavailable

23

BAR, L. STEP *NH1* (BLACK)

50640-259-010B

Unavailable

24

RUBBER, STEP

50661-259-000

$16.23

25

BOLT, SIDE STAND PIVOT (NOT AVAILABLE)

90108-259-000

Unavailable

26

SCREW, STOP SWITCH ARM PIVOT (NOT AVAILABLE)

90128-250-000

Unavailable

27

BOLT, MAIN STAND ANCHOR (NOT AVAILABLE)

90151-259-000

Unavailable

28

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

28

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

28

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

28

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

29

BOLT, HEX. (8X28) This part replaces 92000-08028.

92101-08028-0A

$1.80

29

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

29

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

30

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

30

NUT, HEX. (8MM)

94030-08000

$1.49

30

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

31

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

31

NUT, HEX. (10MM)

94030-10000

$1.49

31

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

32

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

32

NUT, HEX. (10MM)

94002-10000-0S

$4.06

32

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

33

WASHER, SPRING (8MM)

94111-08000

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49

35

BOLT, HEX. (8X25) (NOT AVAILABLE) This part replaces 95100-08025.

95100-08025-00

Unavailable

35

BOLT, HEX. (8X25) (NOT AVAILABLE)

95100-08025-00

Unavailable
