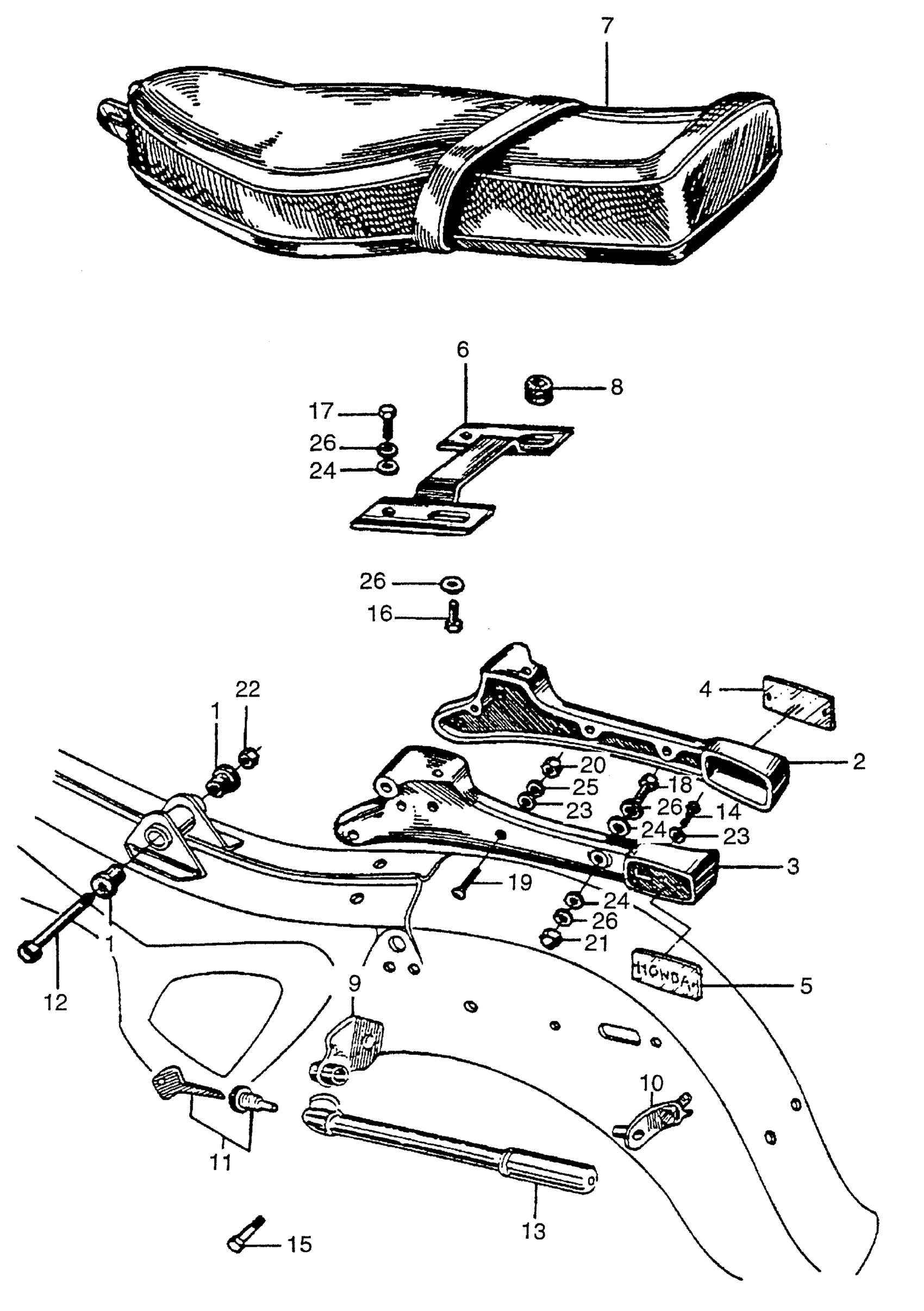

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 SEAT Diagram
#
Description
Price
1
BUSHING, SEAT PIVOT (NOT AVAILABLE)
50090-259-300
Unavailable
2
METAL, R. LUGGAGE CARRIER SUPPORTING (NOT AVAILABLE) | Use up to Frame SN 0311110
50303-250-050
Unavailable
2
METAL, R. LUGGAGE CARRIER SUPPORTING (NOT AVAILABLE) | Use from Frame SN 0311111
50303-271-000
Unavailable
3
METAL, L. LUGGAGE CARRIER SUPPORTING (NOT AVAILABLE)
50306-250-050
Unavailable
3
METAL, L. LUGGAGE CARRIER SUPPORTING (NOT AVAILABLE)
50306-271-000
Unavailable
4
CAP, R. LUGGAGE CARRIER SUPPORTING (NOT AVAILABLE)
50307-272-010
Unavailable
5
CAP, L. LUGGAGE CARRIER SUPPORTING (NOT AVAILABLE)
50308-272-010
Unavailable
6
STAY, SEAT SETTING (NOT AVAILABLE)
77124-254-010
Unavailable
7
SEAT *B2L* (BLUE) (NOT AVAILABLE) | Use up to Frame SN 0311110 This part replaces 77200-259-810D.
77200-259-810ZC
Unavailable
7
SEAT *R2L* (SCARLET) (NOT AVAILABLE) | Use up to Frame SN 0311110 This part replaces 77200-259-810E.
77200-259-810ZB
Unavailable
7
SEAT *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
77200-259-810Q
Unavailable
7
SEAT *R2L* (SCARLET) (NOT AVAILABLE) | Use up to Frame SN 0311110
77200-259-810ZB
Unavailable
7
SEAT *B2L* (BLUE) (NOT AVAILABLE) | Use up to Frame SN 0311110
77200-259-810ZC
Unavailable
7
SEAT *NH1L* (BLACK) (NOT AVAILABLE) | Use from Frame SN 0311111
77200-272-010A
Unavailable
7
SEAT *B2L* (BLUE) (NOT AVAILABLE) | Use from Frame SN 0311111 This part replaces 77200-272-010D.
77200-272-010ZC
Unavailable
7
SEAT *R2L* (SCARLET) (NOT AVAILABLE) | Use from Frame SN 0311111 This part replaces 77200-272-010E.
77200-259-810ZB
Unavailable
7
SEAT *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE) | Use from Frame SN 0311111
77200-272-010Q
Unavailable
7
SEAT *R2L* (SCARLET) (NOT AVAILABLE) | Use from Frame SN 0311111 This part replaces 77200-272-010ZB.
77200-259-810ZB
Unavailable
7
SEAT *B2L* (BLUE) (NOT AVAILABLE) | Use from Frame SN 0311111
77200-272-010ZC
Unavailable
8
COLLAR, SEAT SETTING (NOT AVAILABLE) | Use from Frame SN 0311111
77226-272-010
Unavailable
9
PLATE, FR. AIR PUMP SETTING (NOT AVAILABLE)
89421-253-000
Unavailable
10
PLATE, FR. AIR PUMP SETTING (NOT AVAILABLE)
89422-253-000
Unavailable
11
KEY ASSY., PUMP (NOT AVAILABLE)
89423-253-000
Unavailable
12
PIN, SEAT PIVOT (NOT AVAILABLE) | Use up to Frame SN 0311110
90101-254-000
Unavailable
12
BOLT, SEAT SETTING (NOT AVAILABLE) | Use from Frame SN 0311111
90101-272-000
Unavailable
13
TIRE, PUMP This part replaces 08105-25900.
0Y105-25900
Unavailable
