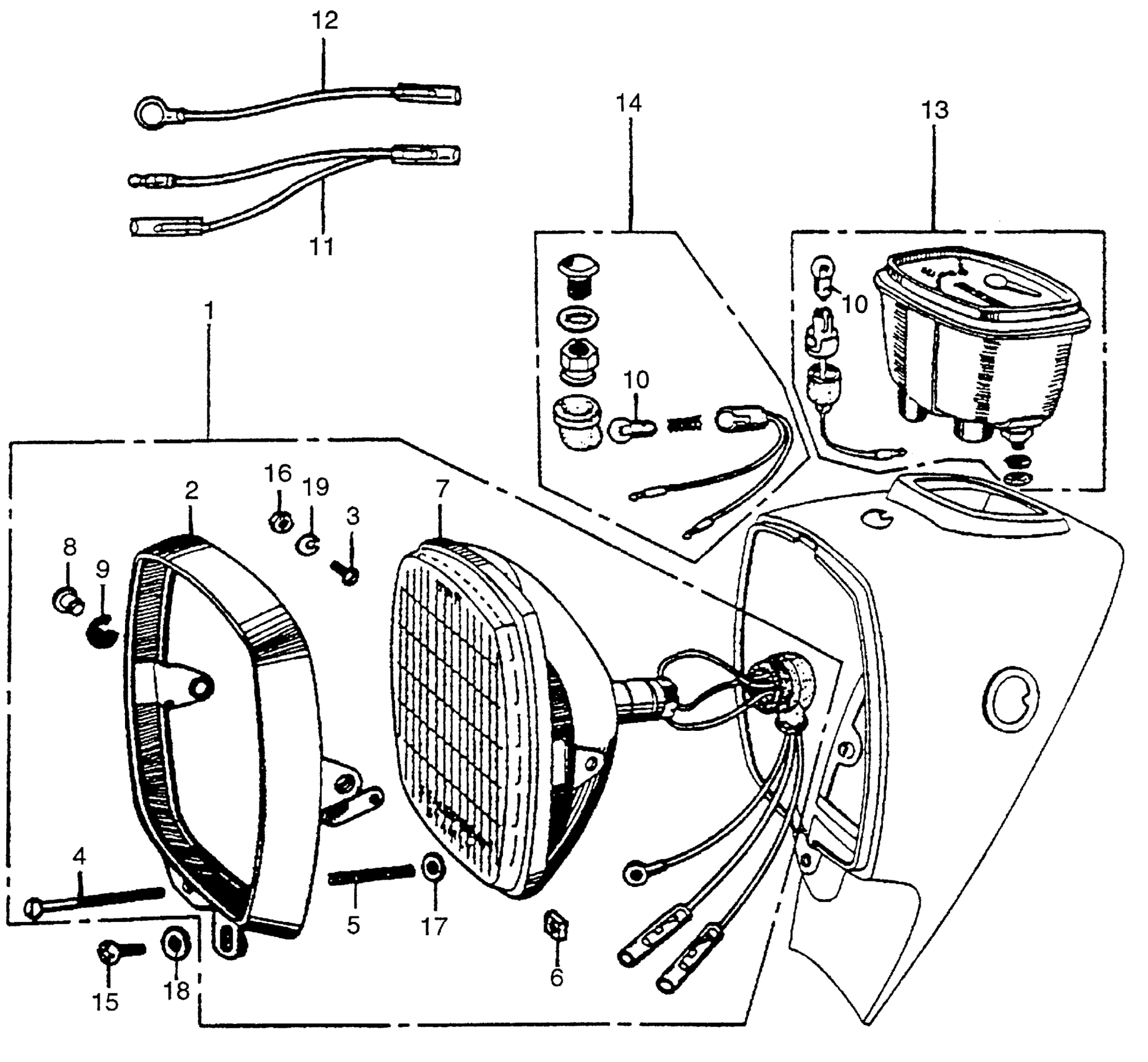

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 1000330

33100-262-000

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1000331 This part replaces 33100-272-000.

33100-262-000

Unavailable

1

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1000331 This part replaces 33120-272-003.

33100-262-000

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE) | Use up to Frame SN 1000330

33101-262-000

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 1000331 This part replaces 33101-272-003.

33101-262-000

Unavailable

3

SCREW (3MM) (NOT AVAILABLE)

33102-200-003

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE) | Use from Frame SN 1000331 This part replaces 33102-243-670.

33103-200-020

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ.

33103-200-020

Unavailable

4

SCREW, HEADLIGHT BEAM ADJ. (NOT AVAILABLE) | Use from Frame SN 1000331 This part replaces 33103-272-003.

33103-200-020

Unavailable

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

6

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE)

33117-200-023

Unavailable

7

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-262-000

Unavailable

7

HEADLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 1000330 This part replaces 33100-272-000.

33100-262-000

Unavailable

7

HEADLIGHT ASSY. (NOT AVAILABLE) | Use up to Frame SN 1000330 This part replaces 33120-262-000.

33100-262-000

Unavailable

7

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33120-272-003.

33100-262-000

Unavailable

8

SCREW, HEADLIGHT (NOT AVAILABLE) This part replaces 33125-200-020.

33125-200-030

Unavailable

9

NUT, UNIT HOLDER (NOT AVAILABLE)

33128-200-023

Unavailable

9

NUT, UNIT HOLDER | Use from Frame SN 1000331

33128-200-033

Unavailable

10

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

11

WIRE A, PILOT LAMP (NOT AVAILABLE)

35451-262-305

Unavailable

12

SUB-WIRE B, BEAM PILOT (NOT AVAILABLE)

35463-262-305

Unavailable

13

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 1006899 This part replaces 33720-272-010.

37200-272-000

Unavailable

13

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 1006899 This part replaces 37200-262-000.

37200-272-000

Unavailable

13

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 1006899 This part replaces 37200-267-000.

37200-272-000

Unavailable

13

SPEEDOMETER ASSY. (NOT AVAILABLE) | Use from Frame SN 1006900 to 1006899

37200-272-000

Unavailable

14

LAMP ASSY., PILOT (NOT AVAILABLE)

37700-259-000

Unavailable

15

SCREW, PAN (6X16) (SOURCE: VINTAGE PARTS INC.)

93500-06016-02

Unavailable

16

NUT, HEX. (3MM) (SOURCE: VINTAGE PARTS INC.)

94001-03000

Unavailable

16

NUT, HEX. (3MM)

94001-03000-0S

$1.49

17

WASHER, PLAIN (4MM)

94101-04000

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (3MM)

94111-03000

$1.49
