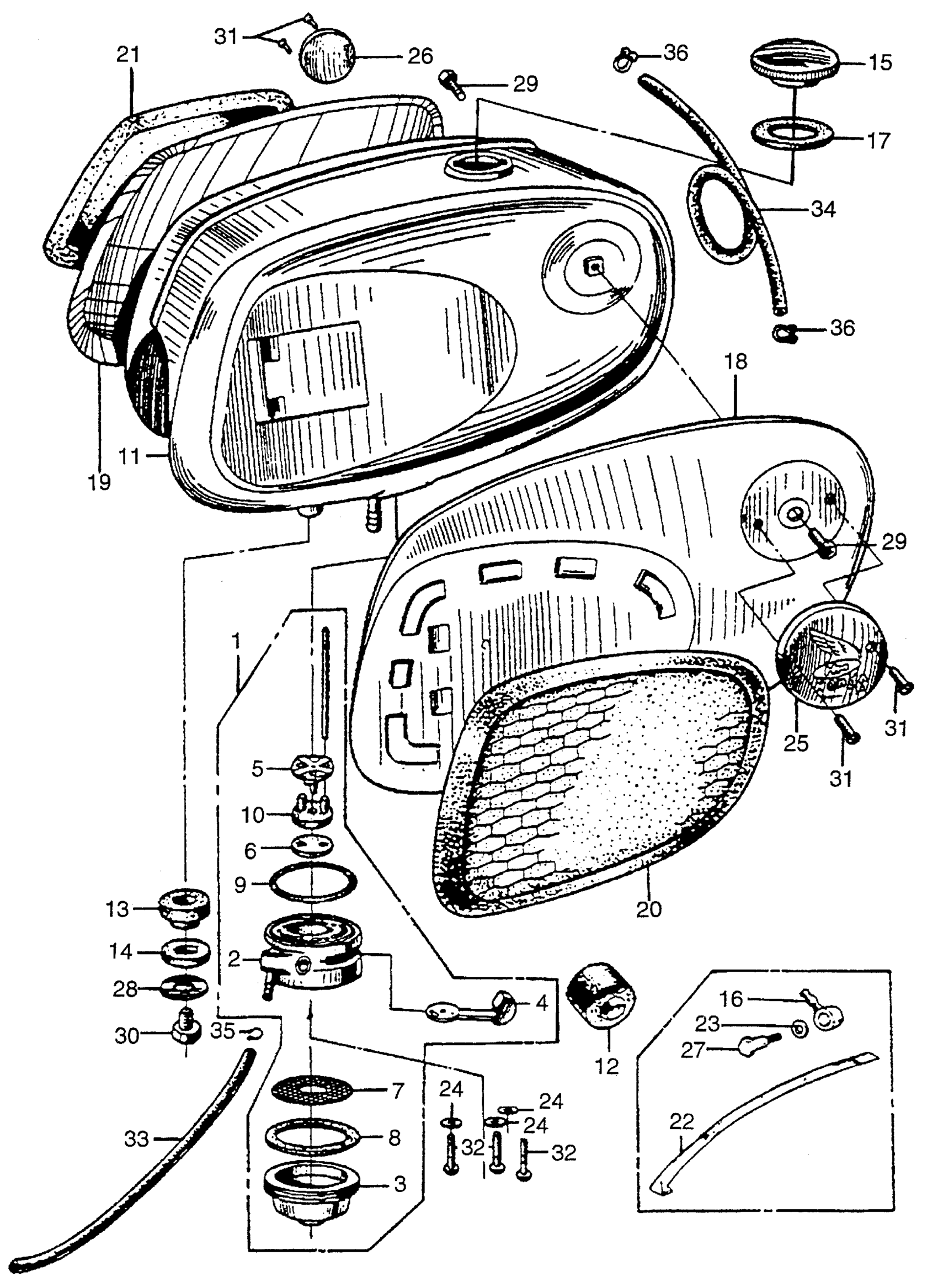

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-257-000

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-259-010.

16950-257-000

Unavailable

2

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16951-259-010.

16950-257-000

Unavailable

3

CAP, FUEL STRAINER (NOT AVAILABLE)

16952-257-000

Unavailable

4

LEVER, PETCOCK (NOT AVAILABLE)

16953-250-010

Unavailable

5

PLATE, PETCOCK (NOT AVAILABLE)

16954-250-000

Unavailable

6

GASKET B, PETCOCK

16956-250-010

$16.21

7

SCREEN, FUEL STRAINER (NOT AVAILABLE)

16957-250-010

Unavailable

8

GASKET, FUEL STRAINER CAP

16958-250-010

Unavailable

9

GASKET, PETCOCK

16959-250-000

Unavailable

10

GASKET A, PETCOCK

16995-250-020

$12.75

11

TANK, FUEL | Use up to Frame SN 0311110

17500-259-040B

Unavailable

11

TANK, FUEL | Use up to Frame SN 0311110 This part replaces 17500-259-040Z.

17500-259-040B

Unavailable

11

TANK, FUEL (NOT AVAILABLE) | Use from Frame SN 0311111

17500-271-000Z

Unavailable

12

RUBBER, FUEL TANK (NOT AVAILABLE)

17611-259-000

Unavailable

13

RUBBER A, RR. FUEL TANK (NOT AVAILABLE)

17613-259-000

Unavailable

14

RUBBER B, RR. FUEL TANK (NOT AVAILABLE) | Use from Frame SN 0311111

17614-259-000

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-259-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

16

JOINT, FUEL FEED TUBE (NOT AVAILABLE)

17625-250-000

Unavailable

17

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

17

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

17

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

18

COVER, R. FUEL TANK COVER | Use up to Frame SN 0311110

17640-259-020

Unavailable

18

COVER, R. FUEL TANK SIDE (NOT AVAILABLE) | Use from Frame SN 0311111

17640-271-000

Unavailable

19

COVER, L. FUEL TANK SIDE | Use up to Frame SN 0311110

17650-259-020

Unavailable

19

COVER, L. FUEL TANK SIDE (NOT AVAILABLE) | Use from Frame SN 0311111

17650-271-000

Unavailable

20

RUBBER, R. KNEE GRIP (NOT AVAILABLE) | Use up to Frame SN 0311110

17661-259-000

Unavailable

20

RUBBER, R. KNEE GRIP (NOT AVAILABLE) | Use from Frame SN 0311111

17661-271-000

Unavailable

21

RUBBER, L. KNEE GRIP (NOT AVAILABLE) | Use from Frame SN 0311111

17662-271-000

Unavailable

22

ORNAMENT, FUEL TANK (NOT AVAILABLE) | Use up to Frame SN 0311110

17691-259-010

Unavailable

23

GASKET, FUEL FEED TUBE (NOT AVAILABLE)

17791-250-000

Unavailable

24

GASKET, PETCOCK

17993-250-000

$5.90

25

EMBLEM, R. FUEL TANK This part replaces 87121-215-000.

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK This part replaces 87121-224-000.

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK This part replaces 87121-230-000.

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK This part replaces 87121-237-680.

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK This part replaces 87121-259-810.

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK This part replaces 87121-266-010.

87121-230-010

Unavailable

25

EMBLEM, R. FUEL TANK This part replaces 87121-279-810.

87121-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-215-000.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-224-000.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-230-000.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-237-680.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-259-810.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-266-000.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-266-010.

87122-230-010

Unavailable

26

EMBLEM, L. FUEL TANK This part replaces 87122-279-810.

87122-230-010

Unavailable

27

BOLT, FUEL TUBE JOINT (NOT AVAILABLE) | Use up to Frame SN 0020350

90168-250-010

Unavailable

28

WASHER (10.5MM) (NOT AVAILABLE)

90529-250-000

Unavailable

29

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

29

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

29

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

30

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92000-08012.

92100-08012-0A

Unavailable

30

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92000-08012-0A.

92100-08012-0A

Unavailable

30

BOLT, HEX. (8X12) (NOT AVAILABLE)

92100-08012-0A

Unavailable

30

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92200-08012-0A.

92100-08012-0A

Unavailable

31

SCREW, PAN (3X10) (NOT AVAILABLE)

93500-03010-0B

Unavailable

31

SCREW, PAN (3X10) (NOT AVAILABLE) This part replaces 93500-03010-02.

93500-03010-0B

Unavailable

32

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 15761-045-000.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 16968-205-222.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 16968-205-322.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50000.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50000-90.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50100.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50180.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50200.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50250.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50620.

95001-55000-40

Unavailable

33

TUBE (5.5X350) | Use from Frame SN 0020351 This part replaces 95001-50830.

95001-55000-40

Unavailable

33

BULK HOSE, FUEL (5.5X3000) (5.5X350) | Use from Frame SN 0020351

95001-55003-60M

$47.32

34

TUBE (7X224) (NOT AVAILABLE) | Use up to Frame SN 0020350

95001-70000

Unavailable

35

CLIP, TUBE (C9)

95002-50000

$1.49

36

CLIP, TUBE (C11)

95002-70000

$1.56
