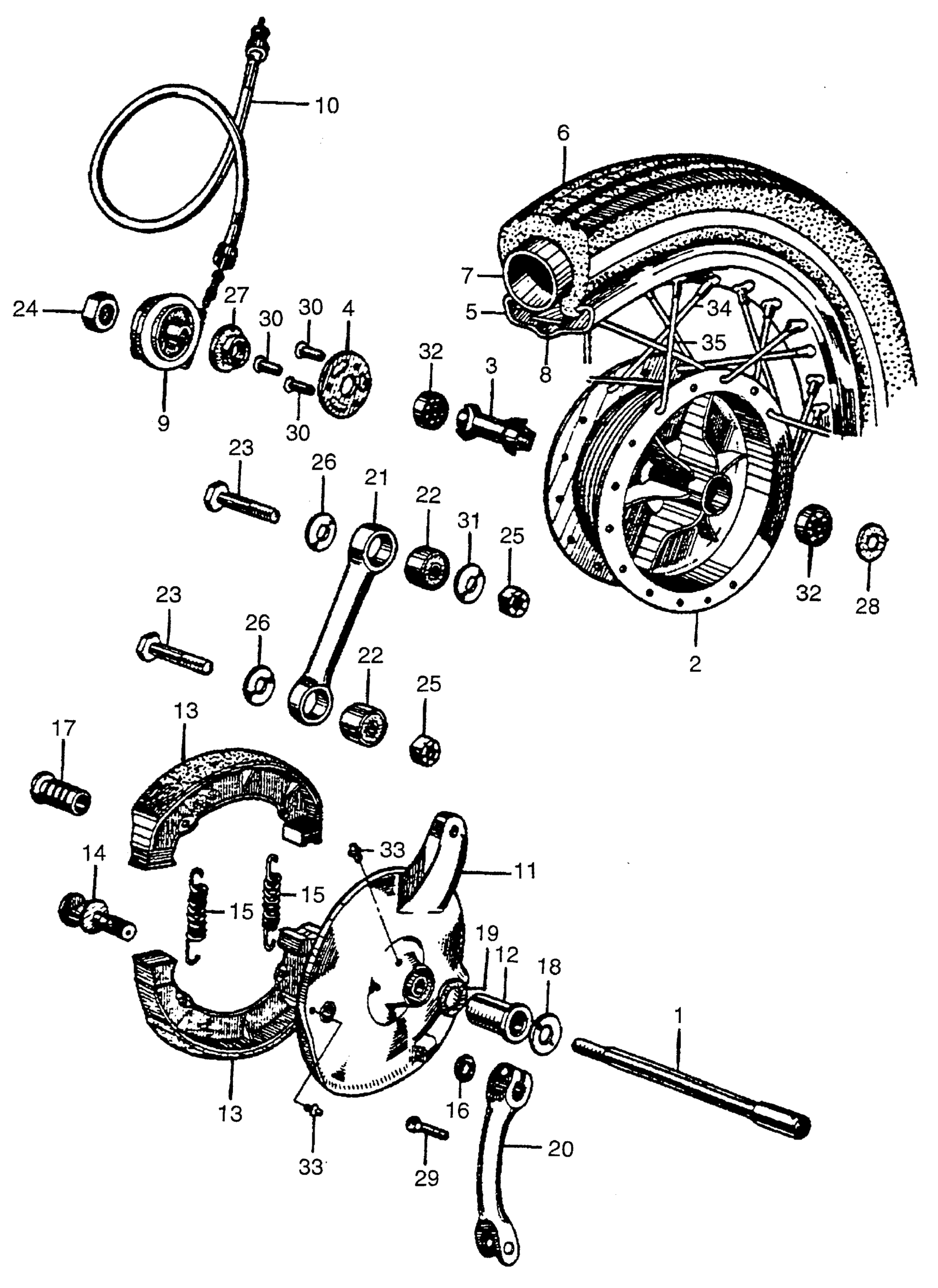

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 FRONT WHEEL Diagram

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-253-000

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 0311560

44601-253-010

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0311561

44601-259-000

Unavailable

COLLAR, FR. DISTANCE AXLE

44620-253-000

Unavailable

RETAINER, FR. WHEEL | Use up to Frame SN 0120100

44641-253-000

Unavailable

RETAINER, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0120101

44641-259-000

Unavailable

RIM, FR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 0311560 This part replaces 44701-253-020.

44701-259-000

Unavailable

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0311561

44701-259-000

Unavailable

TIRE, FR. WHEEL (3.25-16) (BLACK WALL) (NITTO) (NOT AVAILABLE)

44711-250-000

Unavailable

TIRE, FR. WHEEL (3.25-16) (BLACK WALL) (NITTO) (NOT AVAILABLE) This part replaces 44711-259-010.

44711-250-000

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 0Y400-41900.

42712-167-005

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 08400-41900.

42712-167-005

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 42712-167-003.

42712-167-005

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC)

42712-167-005

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 44712-200-000.

42712-167-005

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 44712-250-000.

42712-167-005

Unavailable

FLAP, TIRE (NOT AVAILABLE)

44713-250-000

Unavailable

BOX, SPEEDOMETER GEAR (NOT AVAILABLE) | Use up to Frame SN 0020100

44800-253-010

Unavailable

BOX, SPEEDOMETER GEAR (NOT AVAILABLE) | Use from Frame SN 0020100

44800-259-000

Unavailable

CABLE, SPEEDOMETER (NOT AVAILABLE)

44830-250-000

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 0311560

45100-262-000

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0311561

45100-262-010

Unavailable

SLEEVE, FR. BRAKE PANEL (NOT AVAILABLE)

45101-253-310

Unavailable

SHOE, FR. BRAKE This part replaces 45120-253-010.

45120-253-306

Unavailable

CAM, FR. BRAKE (NOT AVAILABLE)

45131-253-000

Unavailable

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-253-000

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

SPACER, FR. PANEL BRAKE (NOT AVAILABLE)

45141-253-010

Unavailable

CAP, FR. PANEL DUST (NOT AVAILABLE) | Use up to Frame SN 0400789

45142-250-000

Unavailable

CAP, FR. BRAKE PANEL DUST (NOT AVAILABLE) | Use from Frame SN 0400790

45142-271-000

Unavailable

RING, FR. BRAKE PANEL FELT (NOT AVAILABLE) | Use up to Frame SN 0400789

45143-222-000

Unavailable

DUST SEAL, FR. BRAKE PANEL (NOT AVAILABLE) | Use from Frame SN 0400790

45435-271-000

Unavailable

ARM, FR. BRAKE (NOT AVAILABLE)

45410-259-000

Unavailable

LINK, FR. BRAKE TORQUE

45431-250-000

Unavailable

BUSH, STOPPER ARM RUBBER (NOT AVAILABLE)

45437-254-330

Unavailable

BOLT, FR. BRAKE TORQUE (NOT AVAILABLE)

90126-250-000

Unavailable

NUT, FR. AXLE (NOT AVAILABLE)

90305-250-000

Unavailable

NUT, SELF-LOCK (10MM) This part replaces 90351-250-000.

90351-268-000

$2.87

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

WASHER (10.5MM) (NOT AVAILABLE)

90529-250-000

Unavailable

OIL SEAL (24X35X8) (NOT AVAILABLE) | Use from Frame SN 0020100

90752-250-000

Unavailable

OIL SEAL (50X64X8) (NOT AVAILABLE)

91251-250-000

Unavailable

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20)

93404-06020-08

$1.62

BOLT-WASHER (6X20) This part replaces 93414-06020-08.

93404-06020-08

$1.62

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

FITTING, GREASE (A.45)

96201-30001

$1.49

SPOKE A, FR.

97259-41102-1

Unavailable

SPOKE B, FR.

97875-41100-1

Unavailable
