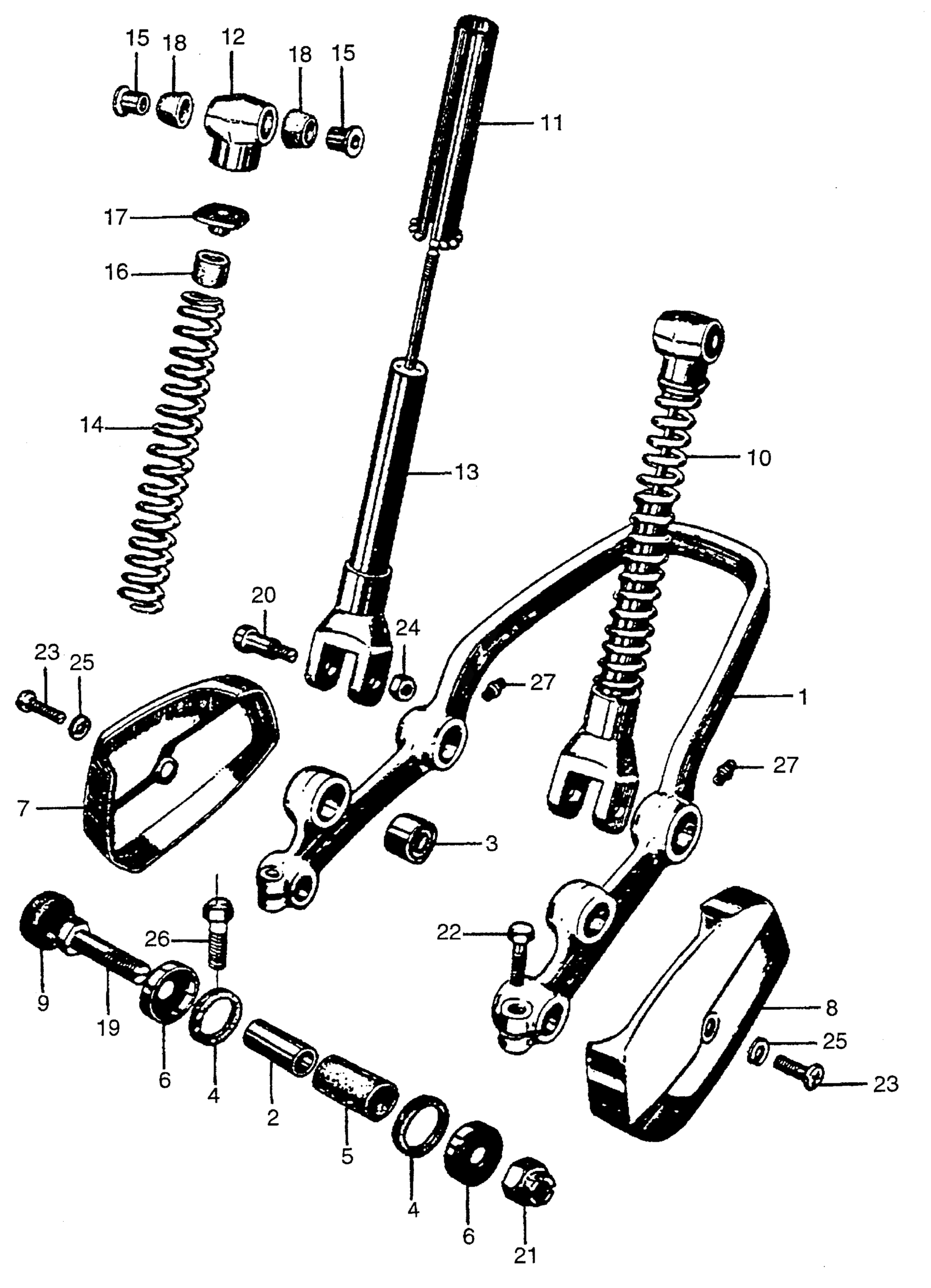

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 FRONT CUSHION Diagram

#

Description
Price

1

ARM, FR. SUSPENSION (NOT AVAILABLE)

51210-253-000

Unavailable

2

BUSHING, FR. ARM PIVOT (NOT AVAILABLE)

51214-253-300

Unavailable

3

BUSHING, FR. FORK (LOWER) (NOT AVAILABLE)

51215-250-000

Unavailable

4

DUST SEAL, FR. ARM PIVOT (NOT AVAILABLE)

51232-250-000

Unavailable

5

COLLAR, FR. ARM PIVOT (NOT AVAILABLE)

51331-250-000

Unavailable

6

CAP, FR. ARM PIVOT DUST SEAL (NOT AVAILABLE)

51333-250-000

Unavailable

7

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE)

51344-250-000

Unavailable

8

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE)

51345-250-000

Unavailable

9

RUBBER A, FR. FORK (NOT AVAILABLE)

51349-250-000

Unavailable

10

FORK ASSY., R. FR. | Use up to Frame SN 0100759

51400-259-000

Unavailable

10

FORK ASSY., R. FR. (NOT AVAILABLE) | Use from Frame SN 0100760

51400-259-010

Unavailable

11

GUIDE, FR. SPRING (NOT AVAILABLE)

51409-250-010

Unavailable

12

METAL, FR. FORK (UPPER)

51410-250-010

Unavailable

12

METAL, FR. FORK (UPPER) This part replaces 51410-259-010.

51410-250-010

Unavailable

13

METAL, FR. FORK (LOWER) (NOT AVAILABLE) This part replaces 51420-259-000.

51420-259-010

Unavailable

13

METAL, FR. FORK (LOWER) (NOT AVAILABLE)

51420-259-010

Unavailable

14

SPRING, FR. FORK (NOT AVAILABLE) | Use up to Frame SN 0100759

51457-259-000

Unavailable

14

SPRING, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0100760

51457-259-010

Unavailable

15

COLLAR, FR. FORK (UPPER) (NOT AVAILABLE)

51510-250-000

Unavailable

16

RUBBER, FR. FORK STOPPER

51519-250-010

Unavailable

17

NUT, FR. FORK | Use up to Frame SN 0100759

51538-250-000

Unavailable

17

NUT, FR. FORK | Use from Frame SN 0100760

51538-250-010

Unavailable

18

BUSH, FORK RUBBER

51632-250-000

Unavailable

19

BOLT, FR. ARM PIVOT (NOT AVAILABLE)

90125-250-020

Unavailable

20

BOLT, FR. FORK (LOWER) (NOT AVAILABLE)

90149-250-000

Unavailable

21

NUT, LOCK (12MM)

90353-250-000

Unavailable

22

BOLT, HEX. (8X30) This part replaces 92000-08030.

92101-08030-0A

$1.49

22

BOLT, HEX. (8X30) This part replaces 92000-08030-0A.

92101-08030-0A

$1.49

22

BOLT, HEX. (8X30) This part replaces 92100-08030-0A.

92101-08030-0A

$1.49

22

BOLT, HEX. (8X30)

92101-08030-0A

$1.49

23

SCREW, PAN (6X12) This part replaces 33114-200-000.

93500-06012-0B

$1.49

23

SCREW, PAN (6X12) This part replaces 33127-259-222.

93500-06012-0B

$1.49

23

SCREW, PAN (6X12)

93500-06012-0B

$1.49

23

SCREW, PAN (6X12) This part replaces 93500-06012-02.

93500-06012-0B

$1.49

24

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

24

NUT, HEX. (10MM)

94002-10000-0S

$4.06

24

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

BOLT, HEX. (8X25) (NOT AVAILABLE) This part replaces 95100-08025.

95100-08025-00

Unavailable

26

BOLT, HEX. (8X25) (NOT AVAILABLE)

95100-08025-00

Unavailable

27

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

27

FITTING, GREASE (A.45)

96201-30001

$1.49
