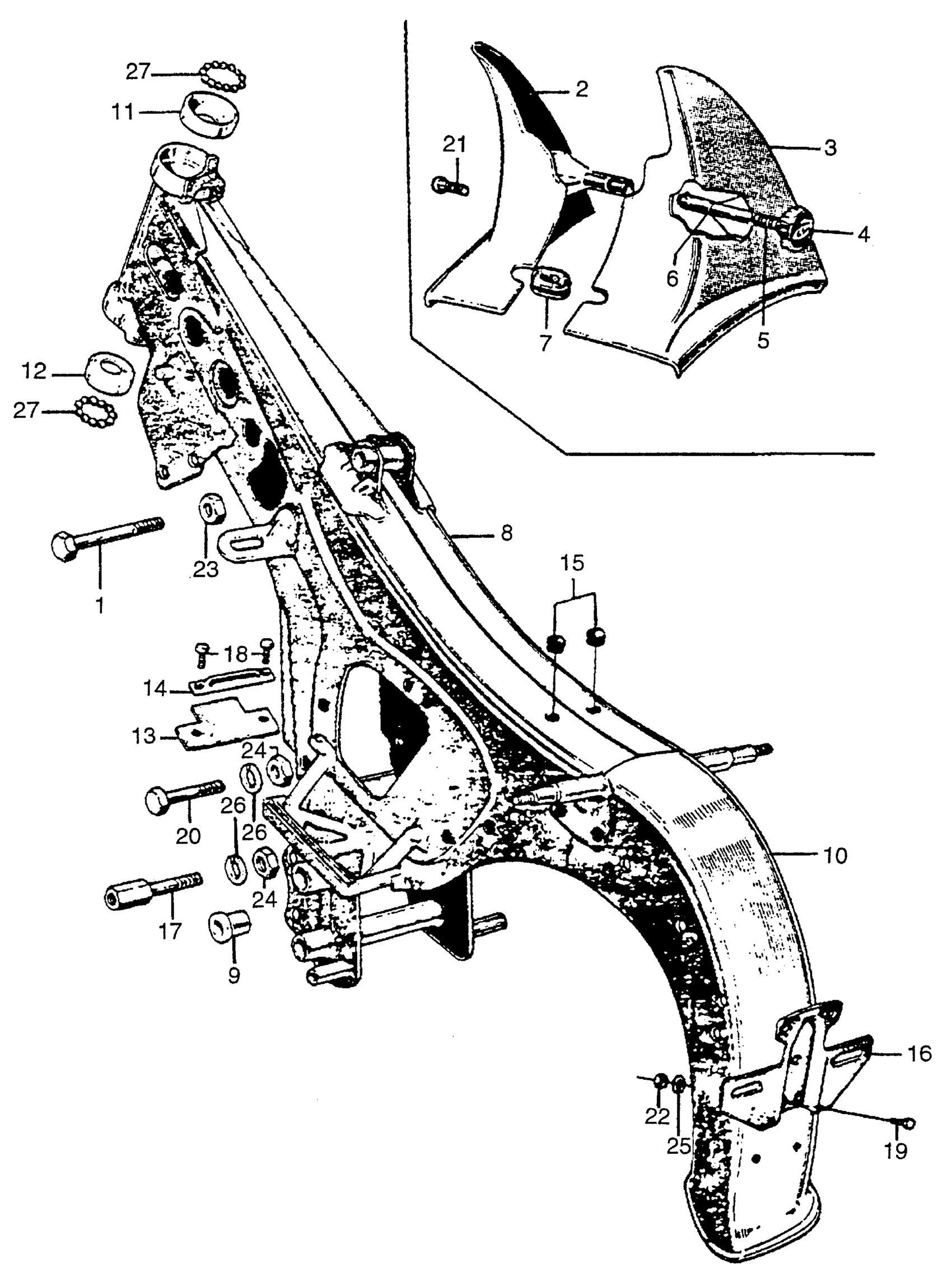

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 FRAME Diagram

#

Description
Price

1

BOLT, ENGINE HANGER (NOT AVAILABLE)

90105-259-000

Unavailable

2

SHIELD, R. FRAME DUST (NOT AVAILABLE)

17260-259-020

Unavailable

3

SHIELD, L. FRAME DUST (NOT AVAILABLE)

17361-259-030

Unavailable

4

LATCH, FRAME DUST SHIELD (NOT AVAILABLE)

17362-259-000

Unavailable

5

SPRING, STOPPER (NOT AVAILABLE)

17364-259-300

Unavailable

6

CONNECTOR, DUST SEAL (NOT AVAILABLE)

17494-259-000

Unavailable

7

GROMMET, IGNITION CABLE (NOT AVAILABLE)

32989-258-000

Unavailable

8

FRAME | Use up to Frame SN 0010150

50100-262-000Z

Unavailable

8

FRAME | Use up to Frame SN 0311110

50100-262-010Z

Unavailable

8

FRAME | Use up to Frame SN 1000330

50100-271-000Z

Unavailable

8

FRAME | Use from Frame SN 1000331

50100-271-010Z

Unavailable

9

BUSH, SWINGARM PIVOT BOLT (NOT AVAILABLE)

50101-250-320

Unavailable

10

FENDER, RR. (NOT AVAILABLE) | Use up to Frame SN 0311110

50206-262-000Z

Unavailable

10

FENDER, RR. (NOT AVAILABLE) | Use from Frame SN 0311111

50206-271-000Z

Unavailable

11

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$22.12

11

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

11

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

11

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

11

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$22.12

11

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$22.12

12

RACE, STEERING BALL (LOWER) (NOT AVAILABLE)

50302-250-305

Unavailable

13

SPLASH GUARD, FRAME (NOT AVAILABLE)

50311-259-000

Unavailable

14

HOLDER, FRAME SPLASH GUARD (NOT AVAILABLE)

50314-259-000

Unavailable

15

PLUG, FRAME HOLE (NOT AVAILABLE)

50317-254-600

Unavailable

16

BRACKET, LICENSE PLATE (NOT AVAILABLE) This part replaces 84701-271-000Z.

84701-271-305Z

Unavailable

16

BRACKET, LICENSE PLATE (NOT AVAILABLE)

84701-271-305Z

Unavailable

17

BOLT, RR. ENGINE SUPPORT (NOT AVAILABLE) | Use from Frame SN 1000331

90116-271-000

Unavailable

18

BOLT, HEX. (4X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-04012.

92101-04012-0A

Unavailable

18

BOLT, HEX. (4X12) (SOURCE: VINTAGE PARTS INC.)

92101-04012-0A

Unavailable

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

BOLT, HEX. (10X48) (NOT AVAILABLE)

92000-10048

Unavailable

21

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

21

SCREW, PAN (6X20)

93500-06020-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

23

NUT, HEX. (8MM)

94030-08000

$1.49

23

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

24

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

24

NUT, HEX. (10MM)

94030-10000

$1.49

24

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
