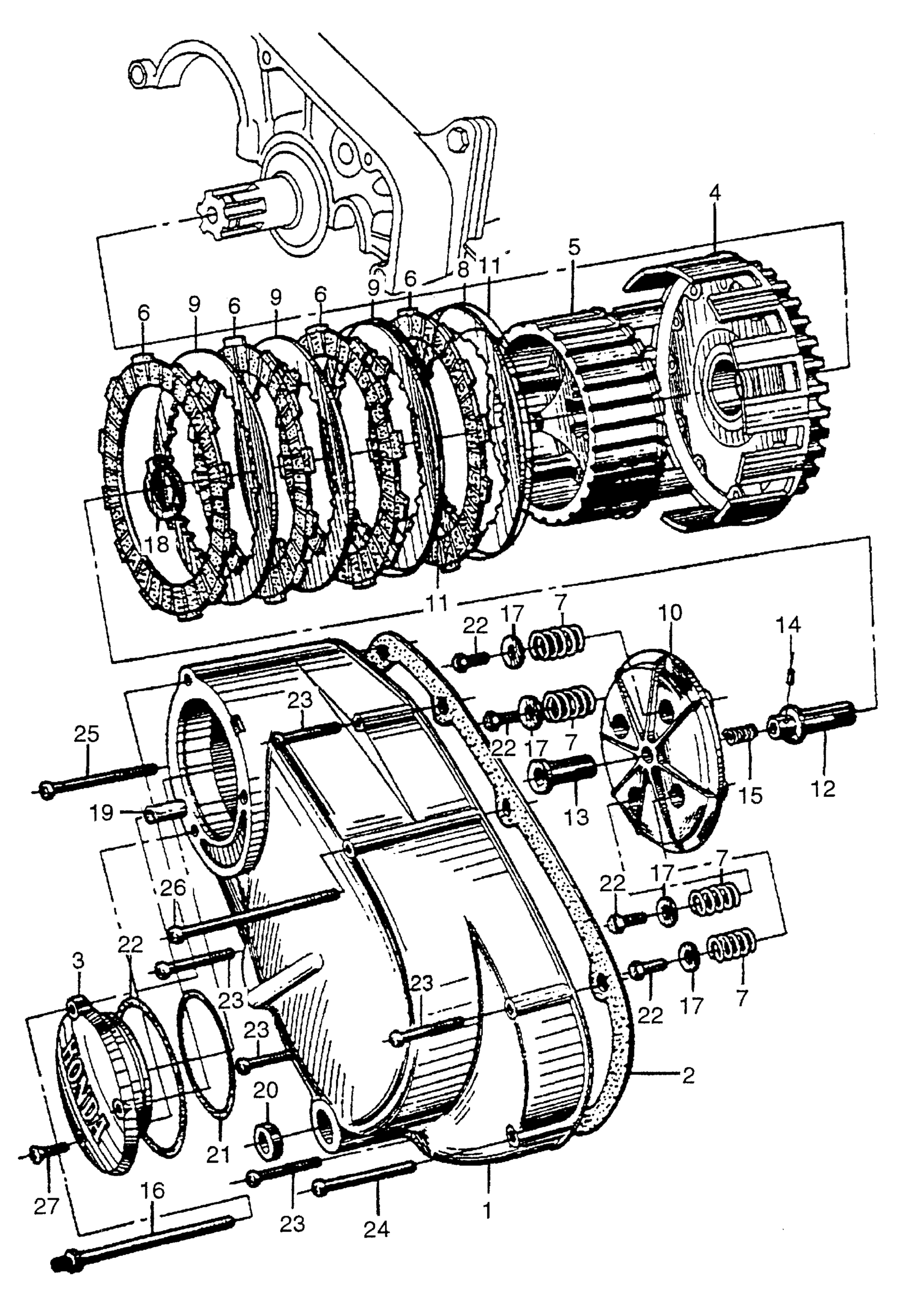

Honda CA72A MOTORCYCLE, JPN, VIN# C72-100001 CLUTCH + LEFT CRANKCASE COVER Diagram

#

Description
Price

NI

DISK A, CLUTCH

22211-259-000

Unavailable

NI

SPRING, CLUTCH FREE (NOT AVAILABLE) | Use up to Engine SN 0210350

22411-259-000

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11340-259-010.

11340-259-020

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 0100760

11340-259-020

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 0100761

11340-259-030

Unavailable

2

GASKET, COVER This part replaces 11395-259-000.

11395-259-306

Unavailable

2

GASKET, COVER

11395-259-306

Unavailable

3

COVER, OIL FILTER | Use up to Engine SN 0100760

15481-259-010

Unavailable

3

COVER, OIL FILTER (NOT AVAILABLE) | Use from Engine SN 0100761

15481-259-020

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 1001230

22100-259-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 1001231

22100-259-010

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use up to Engine SN 1001230 This part replaces 22121-259-000.

22121-259-030

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use up to Engine SN 1001230 This part replaces 22121-259-010.

22121-259-030

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use up to Engine SN 1001230 This part replaces 22121-259-020.

22121-259-030

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use up to Engine SN 1001230

22121-259-030

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 1001231 This part replaces 22121-268-030.

22121-268-040

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE)

22121-268-040

Unavailable

6

DISK A, CLUTCH | Use up to Engine SN 1000330 This part replaces 22201-259-020.

22211-259-000

Unavailable

6

DISK, CLUTCH FRICTION | Use from Engine SN 1000331

22201-268-020

Unavailable

6

DISK A, CLUTCH | Use up to Engine SN 1000330

22211-259-000

Unavailable

7

SPRING, CLUTCH (NOT AVAILABLE)

22401-259-010

Unavailable

8

PLATE, CLUTCH | Use up to Engine SN 1000331 This part replaces 22311-259-010.

22321-GHB-811

$12.02

8

PLATE A, CLUTCH (NOT AVAILABLE) | Use from Engine SN 1000332 This part replaces 22311-268-000.

22311-286-000

Unavailable

8

PLATE, CLUTCH | Use up to Engine SN 1000331 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH This part replaces 22311-259-010.

22321-GHB-811

$12.02

9

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH This part replaces 22321-259-000.

22321-GHB-811

$12.02

10

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-259-000

Unavailable

11

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE)

22431-259-000

Unavailable

12

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-259-020

Unavailable

13

METAL, OIL GUIDE (NOT AVAILABLE)

25571-259-010

Unavailable

14

PIN, OIL GUIDE METAL (NOT AVAILABLE)

25572-259-000

Unavailable

15

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

25573-259-000

Unavailable

16

BOLT (NOT AVAILABLE)

90089-259-000

Unavailable

17

WASHER (6X19)

90481-259-000

Unavailable

18

CIRCLIP (OUTER) (25MM) This part replaces 90602-259-000.

90602-259-010

$6.16

18

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

19

PIN A, DOWEL (8X12) This part replaces 90701-001-000.

94301-08120

$2.19

19

PIN A, DOWEL (8X12)

94301-08120

$2.19

20

OIL SEAL (14X25X7)

91202-250-000

Unavailable

21

O-RING (57X3) (NOT AVAILABLE) | Use up to Engine SN 0100760

91301-259-000

Unavailable

21

O-RING (74.5X3) (NOT AVAILABLE) This part replaces 91301-259-010.

91309-700-010

Unavailable

21

O-RING (79.4X3.1) This part replaces 91302-259-000.

91303-PH8-010

Unavailable

21

O-RING (79.4X3.1)

91303-PH8-010

Unavailable

21

O-RING (74.5X3) (NOT AVAILABLE) | Use from Engine SN 0100761

91309-700-010

Unavailable

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

23

SCREW, PAN (6X35)

93500-06035-0A

$1.49

24

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

24

SCREW, PAN (6X45)

93500-06045-0A

$1.49

25

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

25

SCREW, PAN (6X60)

93500-06060-0A

$1.49

26

SCREW, PAN (6X75) This part replaces 93500-06075.

93500-06075-0A

$1.73

26

SCREW, PAN (6X75)

93500-06075-0A

$1.73

27

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

27

SCREW, OVAL (6X16)

93700-06016-0A

$1.49
