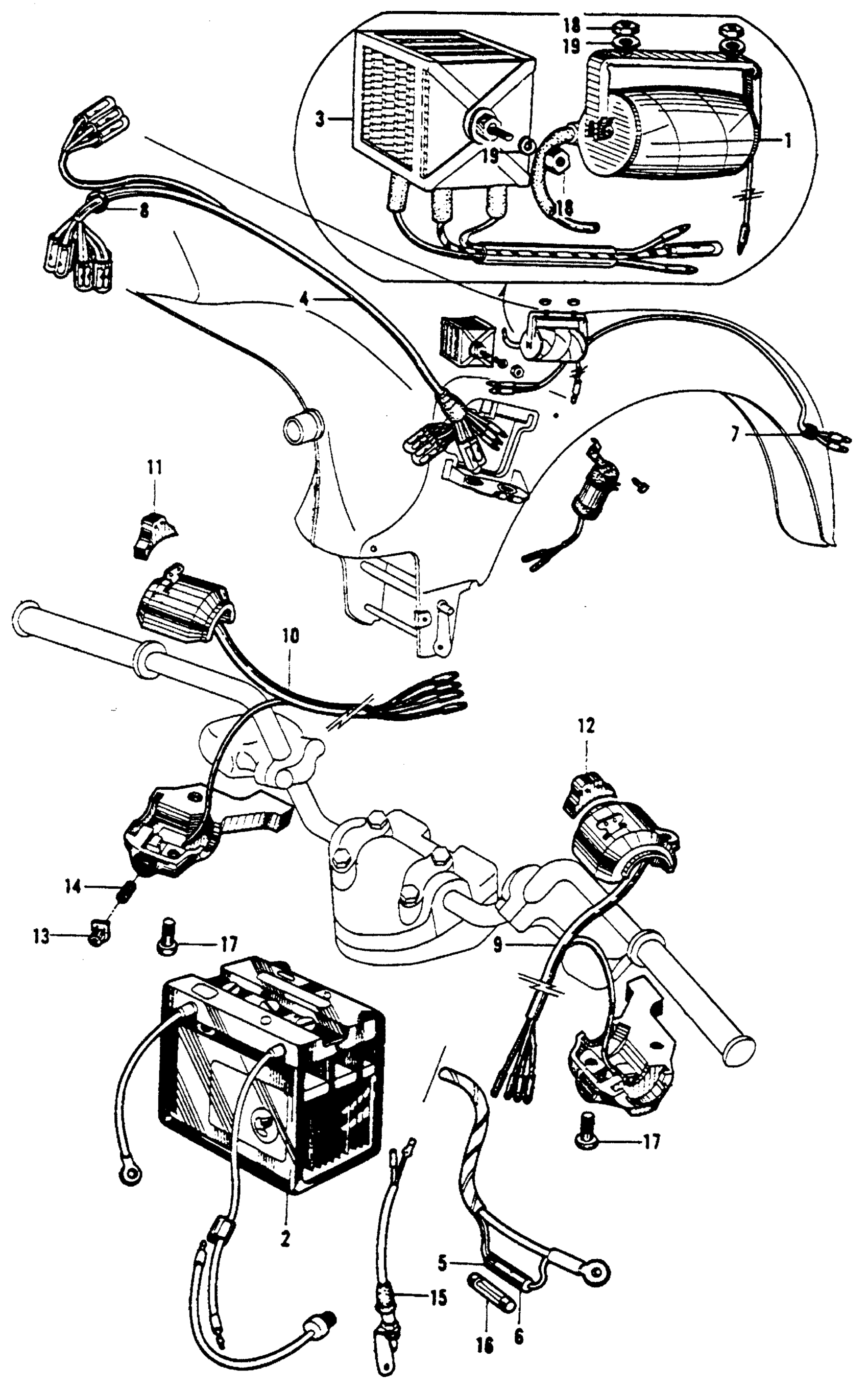

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 WIRE HARNESS + HORN TURN SIGNAL SWITCH Diagram

#

Description
Price

1

COIL ASSY IGN This part replaces 30500-030-014.

30500-030-405

Unavailable

2

BATTERY ASSY. This part replaces 31500-030-000.

31500-052-681

Unavailable

2

BATTERY ASSY.

31500-052-681

Unavailable

3

RECTIFIER ASSY., SELENIUM This part replaces 31700-030-000.

31700-030-006

Unavailable

3

RECTIFIER ASSY., SELENIUM

31700-030-006

Unavailable

4

WIRE HARNESS (NOT AVAILABLE)

32100-030-000

Unavailable

4

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-030-010.

32100-030-000

Unavailable

4

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-030-810.

32100-030-000

Unavailable

5

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

6

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

7

GROMMET, TAILLIGHT WIRE (NOT AVAILABLE)

32982-011-000

Unavailable

8

GROMMET, WIRE HARNESS

32983-011-000

$3.31

9

SWITCH ASSY., LIGHTING DIMMER (NOT AVAILABLE)

35250-030-810

Unavailable

10

SWITCH ASSY., HORN DIMMER (LOWER) (NOT AVAILABLE) | Use up to Frame SN 173387 This part replaces 35300-030-000.

35300-030-040

Unavailable

10

SWITCH ASSY., HORN DIMMER (LOWER) (NOT AVAILABLE) This part replaces 35300-030-030.

35300-030-040

Unavailable

10

SWITCH ASSY., HORN DIMMER (LOWER) (NOT AVAILABLE)

35300-030-040

Unavailable

11

KNOB, DIMMER SWITCH (NOT AVAILABLE)

35316-259-300

Unavailable

12

KNOB, DIMMER SWITCH (NOT AVAILABLE)

35316-259-300

Unavailable

13

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

14

SPRING, BUTTON This part replaces 35253-205-222.

35318-259-000

$5.33

14

SPRING, BUTTON This part replaces 35313-205-222.

35318-259-000

$5.33

14

SPRING, BUTTON This part replaces 35313-268-222.

35318-259-000

$5.33

14

SPRING, BUTTON

35318-259-000

$5.33

14

SPRING, BUTTON This part replaces 35319-001-300.

35318-259-000

$5.33

15

COVER, STOP SWITCH TERMINAL (NOT AVAILABLE)

35361-011-000

Unavailable

16

FUSE A (10A) This part replaces 38201-030-000.

98200-11000

$1.80

16

FUSE A (10A)

98200-11000

$1.80

17

SCREW, PAN (5X20) This part replaces 93500-05020.

93500-05020-0A

$1.49

17

SCREW, PAN (5X20)

93500-05020-0A

$1.49

17

SCREW, PAN (5X20) This part replaces 93520-05020.

93500-05020-0A

$1.49

17

SCREW, PAN (5X20) This part replaces 93520-05020-0A.

93500-05020-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49
