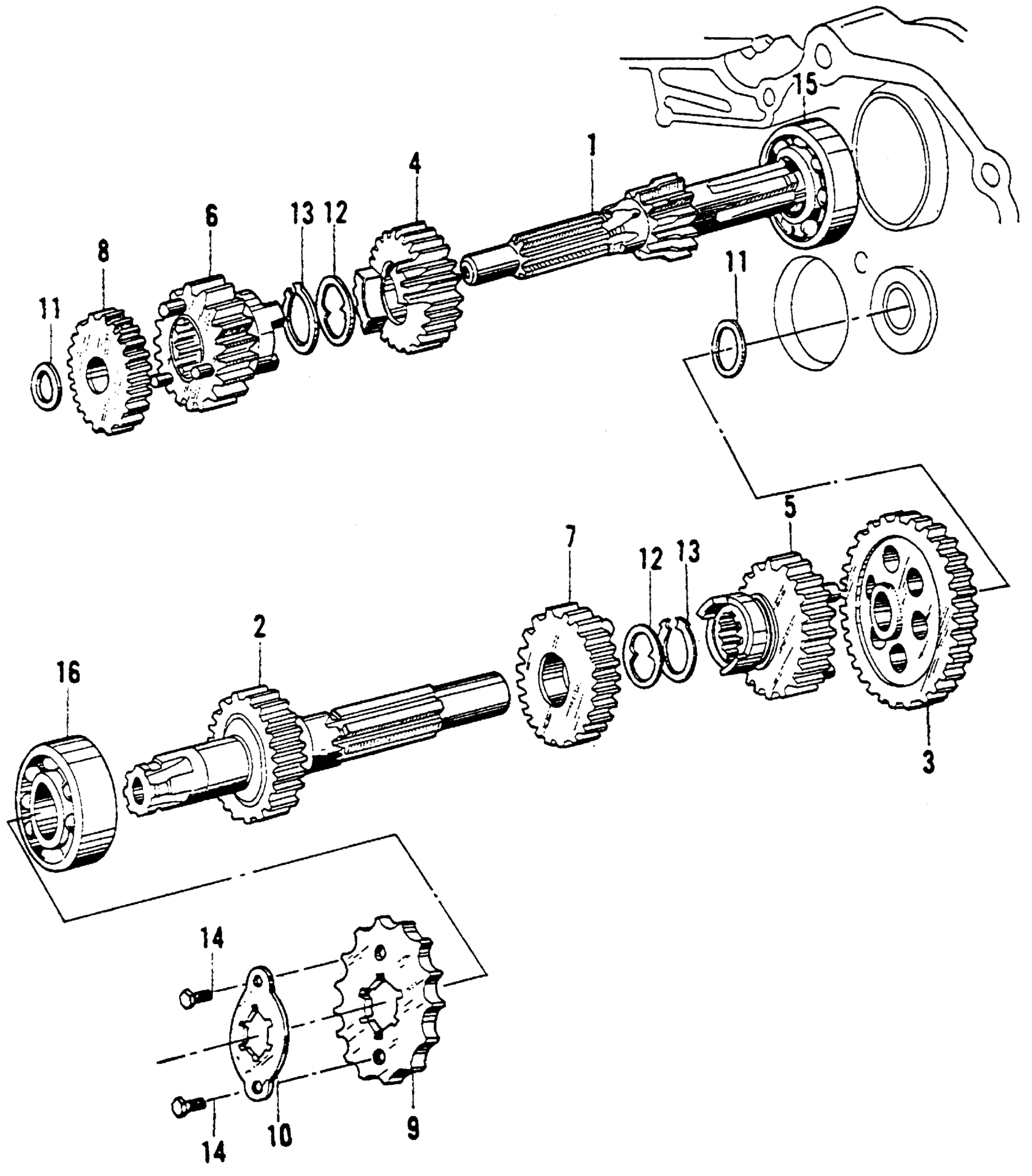

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-030-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-030-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) This part replaces 23421-028-000.

23421-096-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) | Use up to Engine SN 282774 This part replaces 23421-028-000.

23421-096-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) | Use up to Engine SN 282774 This part replaces 23421-028-810.

23421-096-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T) | Use up to Engine SN 282774 This part replaces 23421-030-000.

23421-096-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T)

23421-096-000

Unavailable

4

GEAR, SECOND MAINSHAFT (NOT AVAILABLE)

23431-030-000

Unavailable

5

GEAR, SECOND COUNTERSHAFT | Use up to Engine SN 103280 This part replaces 23441-030-000.

23441-030-020

Unavailable

5

GEAR, SECOND COUNTERSHAFT (NOT AVAILABLE) | Use up to Engine SN 288258

23441-030-020

Unavailable

6

GEAR, THIRD MAINSHAFT (NOT AVAILABLE)

23451-030-000

Unavailable

7

GEAR, THIRD COUNTERSHAFT (NOT AVAILABLE)

23461-030-000

Unavailable

8

GEAR, TOP MAINSHAFT (NOT AVAILABLE)

23471-030-000

Unavailable

9

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

9

SPROCKET, DRIVE (15T) This part replaces 23801-030-811.

23801-KC6-000

Unavailable

9

SPROCKET, DRIVE (15T) This part replaces 23801-200-010.

23801-KC6-000

Unavailable

9

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

10

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE)

23811-206-000

Unavailable

11

WASHER, THRUST (14MM)

90451-001-000

$3.67

12

WASHER, SPLINE (18MM) (NOT AVAILABLE)

90461-030-000

Unavailable

13

CIRCLIP (18MM)

90601-030-000

$1.77

14

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

15

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

15

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

16

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

16

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
