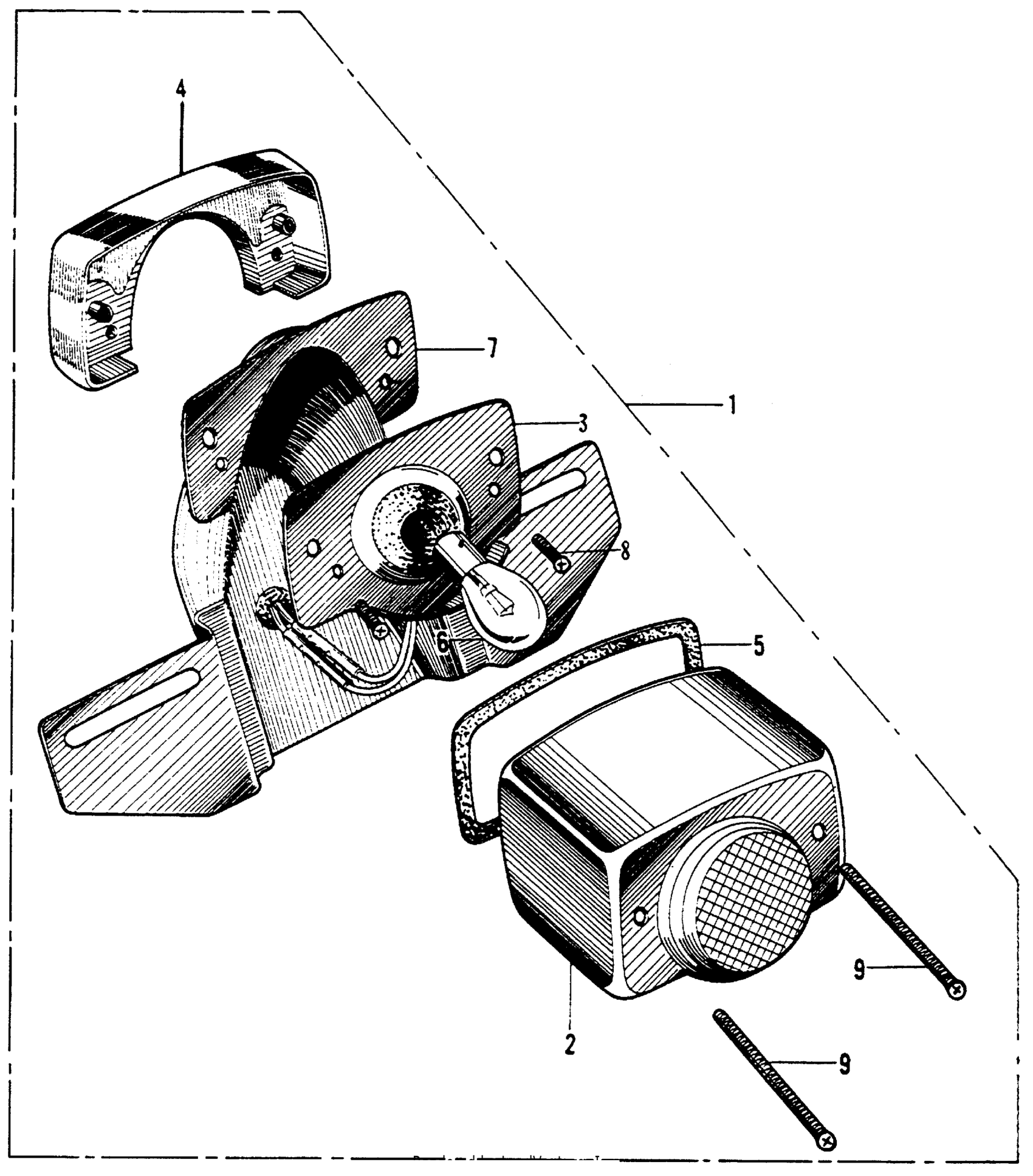

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-030-810

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE)

33701-268-680

Unavailable

3

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE)

33703-030-600

Unavailable

4

PLATE, TAILLIGHT LENS HOLDER (NOT AVAILABLE)

33705-268-670

Unavailable

5

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33709-268-810

Unavailable

6

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

7

BRACKET, NUMBER (NOT AVAILABLE)

84701-030-810

Unavailable

8

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

8

SCREW, PAN (4X10)

93500-04010-0A

$1.49

8

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

9

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

9

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

9

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

9

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98
