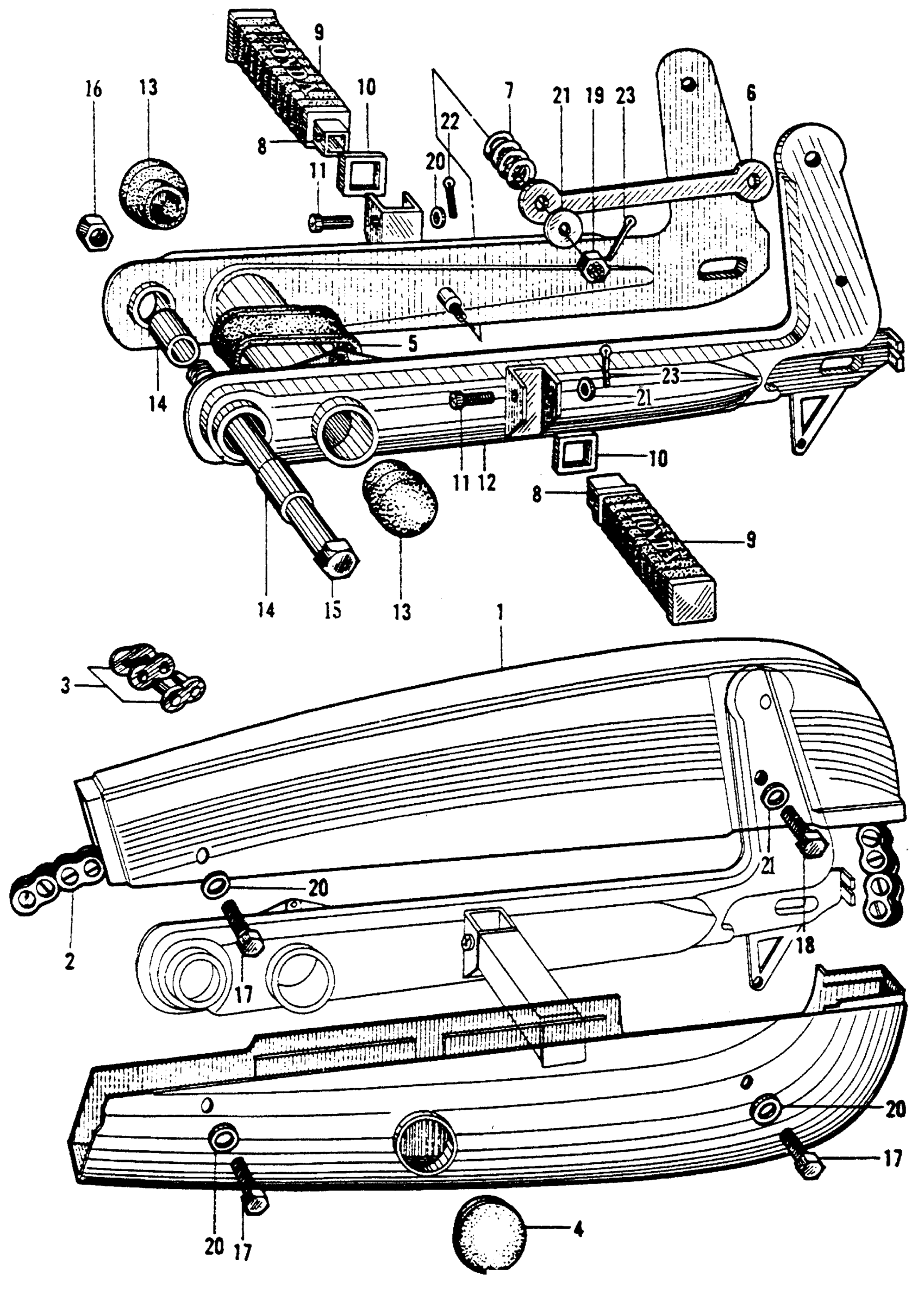

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 SWINGARM + CHAINCASE Diagram

#

Description
Price

1

CASE, HALF DRIVE CHAIN (UPPER) (NOT AVAILABLE)

40510-030-000Z

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO)

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-028-013.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-030-810.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-030-812.

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-459-000.

405W3-KA8-505

Unavailable

3

MASTER LINK This part replaces 40531-205-003.

40531-205-013

Unavailable

3

MASTER LINK

40531-205-013

Unavailable

3

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

4

CAP, CHAIN CASE PEEP HOLE

40545-001-000

$3.41

4

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000B.

40545-001-000

$3.41

4

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000ZC.

40545-001-000

$3.41

4

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-141-000.

40545-001-000

$3.41

5

GASKET, DRIVE CHAIN CASE

40591-041-000

Unavailable

6

ARM, TORQUE LINK (NOT AVAILABLE)

43431-001-020

Unavailable

7

SPRING, STOPPER ARM

43434-250-000

$1.83

8

BAR B, PILLION STEP This part replaces 50701-024-010.

95015-62000

$30.31

8

BAR B, PILLION STEP This part replaces 50715-283-000.

95015-62000

$30.31

8

BAR B, PILLION STEP

95015-62000

$30.31

9

RUBBER, PILLION STEP This part replaces 50705-024-000.

95011-31000

$6.87

9

RUBBER, PILLION STEP This part replaces 50731-024-000.

95011-31000

$6.87

9

RUBBER, PILLION STEP

95011-31000

$6.87

10

WASHER, FOOTPEG This part replaces 50712-024-000.

95015-91000

$1.19

10

WASHER, FOOTPEG

95015-91000

$1.19

11

PIN A, PILLION STEP This part replaces 50715-024-000.

95015-81000

$2.01

11

PIN A, PILLION STEP

95015-81000

$2.01

12

SWINGARM (NOT AVAILABLE)

52100-030-010Z

Unavailable

13

CAP, CROSSMEMBER SIDE *NH1* (BLACK) (NOT AVAILABLE)

52161-001-010B

Unavailable

14

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$10.43

15

BOLT, SWINGARM PIVOT This part replaces 90121-030-000.

90121-092-671

Unavailable

15

BOLT, SWINGARM PIVOT This part replaces 90121-041-000.

90121-092-671

Unavailable

15

BOLT, SWINGARM PIVOT This part replaces 90121-092-670.

90121-092-671

Unavailable

15

BOLT, SWINGARM PIVOT

90121-092-671

Unavailable

16

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

17

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.32

17

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.32

17

BOLT, HEX. (6X6)

92101-06006-0A

$1.32

18

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.33

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.33

18

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.33

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.33

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.33

18

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.33

19

NUT, SELF-LOCK (8MM) This part replaces 94011-08000.

94011-08000-0S

$9.59

19

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.59

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

20

WASHER, PLAIN (6MM)

94101-06800

Unavailable

21

WASHER, PLAIN (8MM)

94101-08000

$0.75

22

PIN, SPLIT (1.6X12)

94201-16120

$0.94

23

PIN, SPLIT (2.0X15)

94201-20150

$0.94
