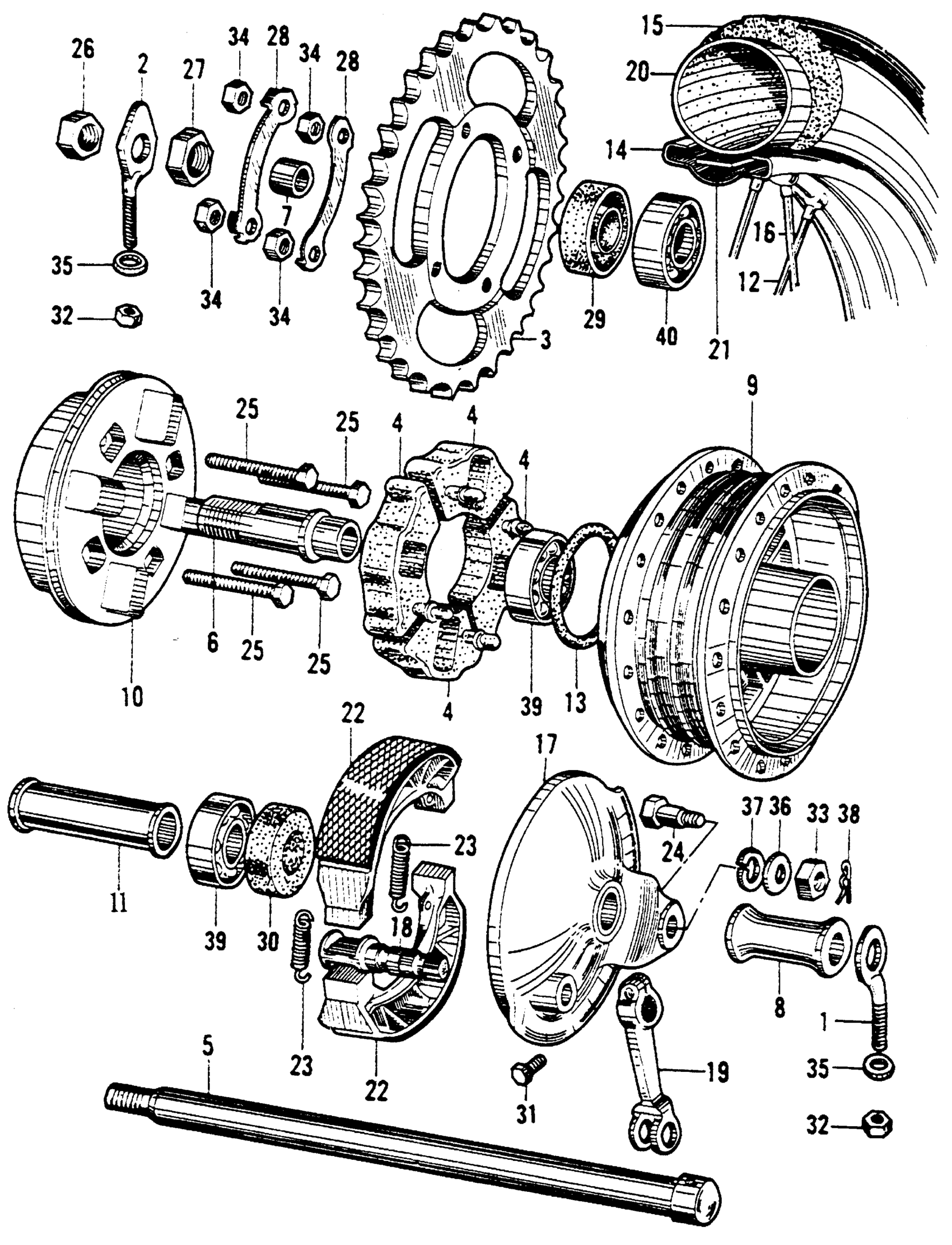

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER A, R. CHAIN This part replaces 40543-030-000.

95014-10100

$5.54

1

ADJUSTER A, R. CHAIN This part replaces 40543-032-000.

95014-10100

$5.54

1

ADJUSTER A, R. CHAIN This part replaces 40543-051-000.

95014-10100

$5.54

1

ADJUSTER A, R. CHAIN

95014-10100

$5.54

2

ADJUSTER, L. CHAIN This part replaces 40544-035-000.

95014-10020

$5.54

2

ADJUSTER, L. CHAIN

95014-10020

$5.54

3

SPROCKET, FINAL DRIVEN (NOT AVAILABLE) This part replaces 41201-030-000.

41201-096-700

Unavailable

3

SPROCKET, FINAL DRIVEN (NOT AVAILABLE)

41201-096-700

Unavailable

4

DAMPER, RR. WHEEL This part replaces 41241-001-040.

41241-001-050

$7.31

4

DAMPER, RR. WHEEL

41241-001-050

$7.31

5

AXLE, RR. WHEEL This part replaces 42301-001-000.

42301-121-760

Unavailable

5

AXLE, RR. WHEEL This part replaces 42301-041-020.

42301-121-760

Unavailable

5

AXLE, RR. WHEEL This part replaces 42301-041-030.

42301-121-760

Unavailable

5

AXLE, RR. WHEEL

42301-121-760

Unavailable

6

SLEEVE, RR. WHEEL AXLE (NOT AVAILABLE)

42303-001-020

Unavailable

7

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE)

42304-030-000

Unavailable

8

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-001-000

Unavailable

9

HUB, RR. WHEEL This part replaces 42601-001-060.

42601-001-070

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42601-001-070

Unavailable

10

FLANGE, FINAL DRIVE (NOT AVAILABLE)

42610-030-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42620-001-010

Unavailable

12

SPOKE B, RR.

42638-001-020

$4.66

13

O-RING (40.5X3) (NIPPON DUST KEEPER) This part replaces 42653-001-000.

42653-001-004

$2.39

13

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

14

RIM, RR. WHEEL This part replaces 42701-030-003.

42701-102-794

$77.20

14

RIM, RR. WHEEL This part replaces 42701-030-006.

42701-102-794

$77.20

14

RIM, RR. WHEEL This part replaces 42701-102-791.

42701-102-794

$77.20

14

RIM, RR. WHEEL This part replaces 42701-102-793.

42701-102-794

$77.20

14

RIM, RR. WHEEL This part replaces 44701-030-000.

42701-102-794

$77.20

14

RIM, RR. WHEEL This part replaces 44701-030-003.

42701-102-794

$77.20

14

RIM, RR. WHEEL This part replaces 44701-102-791.

42701-102-794

$77.20

15

TIRE, RR. WHEEL (2.50-17) (4PR/38L) (IRC) This part replaces 42711-030-000.

42711-087-741

Unavailable

15

TIRE, RR. WHEEL (2.50-17) (4PR/38L) (IRC) This part replaces 42711-052-009.

42711-087-741

Unavailable

15

TIRE, RR. WHEEL (2.50-17) (4PR/38L) (IRC) This part replaces 42711-052-016.

42711-087-741

Unavailable

16

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

16

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

17

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-001-050

Unavailable

18

CAM, RR. BRAKE (NOT AVAILABLE)

43141-001-000

Unavailable

18

CAM, RR. BRAKE (NOT AVAILABLE) This part replaces 43141-028-000.

43141-001-000

Unavailable

19

ARM, RR. BRAKE (NOT AVAILABLE)

43411-011-000

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

20

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

21

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

21

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

22

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

23

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

23

SPRING, BRAKE SHOE

45133-028-000

$2.03

24

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

24

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

25

BOLT, SPROCKET

90128-001-030

Unavailable

26

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

27

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

28

WASHER, TOP BRIDGE TONGUED

90522-001-000

Unavailable

28

WASHER, TONGUED (8MM) (SOURCE: VINTAGE PARTS INC.)

94108-11000

Unavailable

29

OIL SEAL (23X40X6) (NOT AVAILABLE)

91253-030-000

Unavailable

30

OIL SEAL (18X37X7) (NOT AVAILABLE)

91254-001-000

Unavailable

31

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

31

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

31

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

31

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

33

NUT, HEX. (8MM)

94030-08000

$1.49

33

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

34

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

34

NUT, HEX. (8MM)

94031-08000

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

35

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

35

WASHER, PLAIN (6MM)

94101-06800

$1.49

36

WASHER, PLAIN (8MM)

94101-08000

$1.49

37

WASHER, SPRING (10MM)

94111-10000

$1.49

38

PIN, LOCK (8MM)

94251-08000

$1.49

39

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

39

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

39

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

40

BEARING, RADIAL BALL (6203) This part replaces 96120-62030.

96120-62030-00

$17.70

40

BEARING, RADIAL BALL (6203)

96120-62030-00

$17.70
