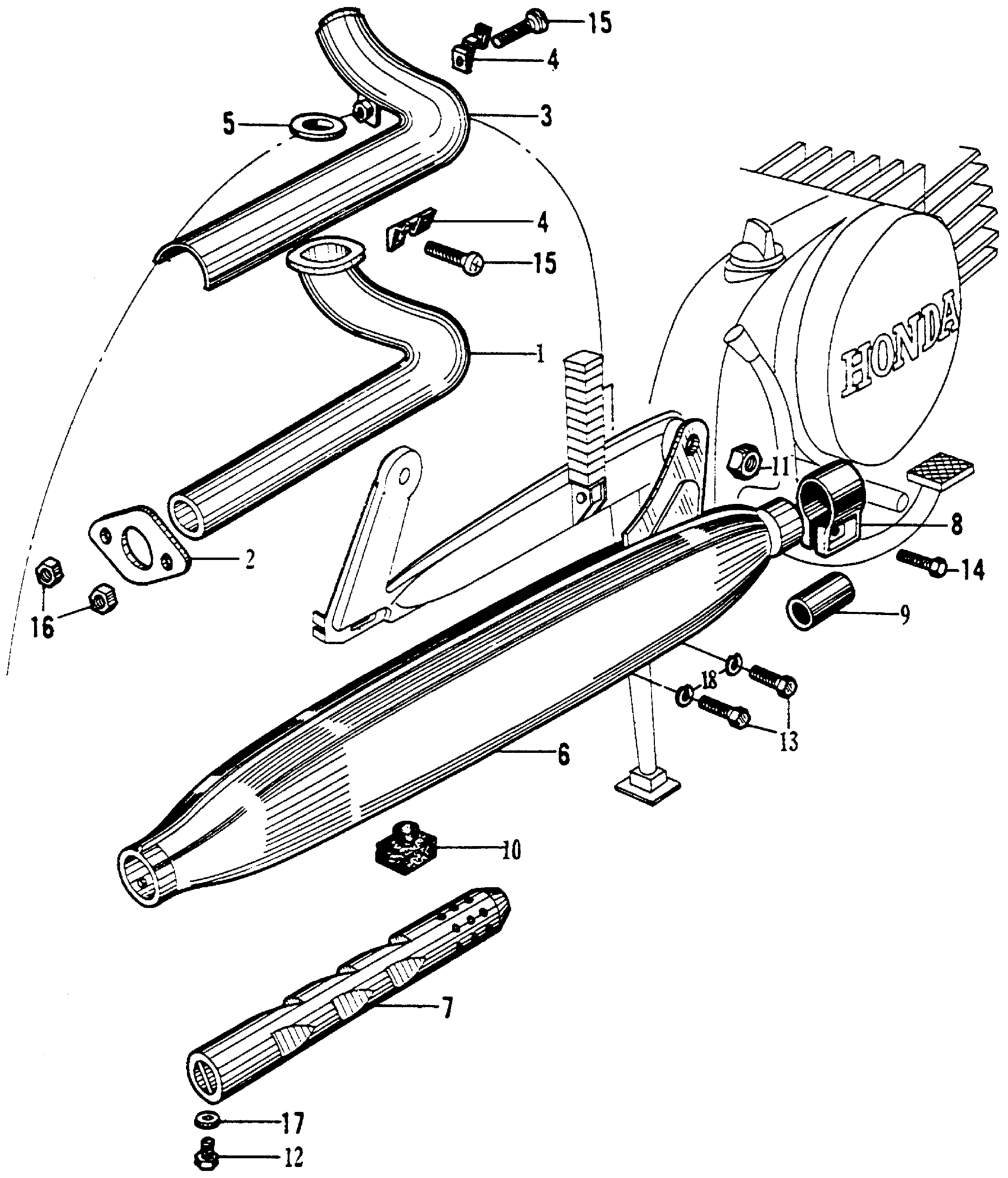

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 MUFFLER Diagram

#

Description
Price

1

MUFFLER (NOT AVAILABLE)

18200-013-000

Unavailable

2

JOINT, EX. PIPE (NOT AVAILABLE)

18231-001-020

Unavailable

3

COVER, EX. PIPE (NOT AVAILABLE)

18240-030-000

Unavailable

4

BAND B, EX. COVER MOUNT

18272-220-000

Unavailable

5

GASKET, EX. PIPE

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

5

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

6

MUFFLER (NOT AVAILABLE)

183A0-030-010

Unavailable

6

MUFFLER (NOT AVAILABLE) | Use up to Frame SN 106233 This part replaces 18300-030-000.

183A0-030-010

Unavailable

6

MUFFLER (NOT AVAILABLE) This part replaces 18300-030-010.

183A0-030-010

Unavailable

6

MUFFLER (NOT AVAILABLE) This part replaces 18300-030-017.

183A0-030-010

Unavailable

7

PIPE, DIFFUSER (NOT AVAILABLE) This part replaces 18311-030-000.

18311-070-000

Unavailable

7

PIPE, DIFFUSER (NOT AVAILABLE)

18311-070-000

Unavailable

8

BAND, EX. DIFFUSER (NOT AVAILABLE)

18371-030-000

Unavailable

9

GASKET, MUFFLER | Use up to Frame SN 106233

18391-HB7-000

$11.62

9

GASKET, MUFFLER | Use up to Frame SN 106233 This part replaces 18391-030-000.

18391-HB7-000

$11.62

10

RUBBER A, STAND STOPPER This part replaces 50524-001-000.

95011-61000

$1.49

10

RUBBER A, STAND STOPPER

95011-61000

$1.49

11

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

12

BOLT, HEX. (5X10) This part replaces 92000-05010-02.

92101-05010-0B

Unavailable

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

14

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

15

SCREW, PAN (5X14) This part replaces 93500-05014.

93500-05014-0A

$1.49

15

SCREW, PAN (5X14)

93500-05014-0A

$1.49

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, PLAIN (5MM)

94101-05000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49
