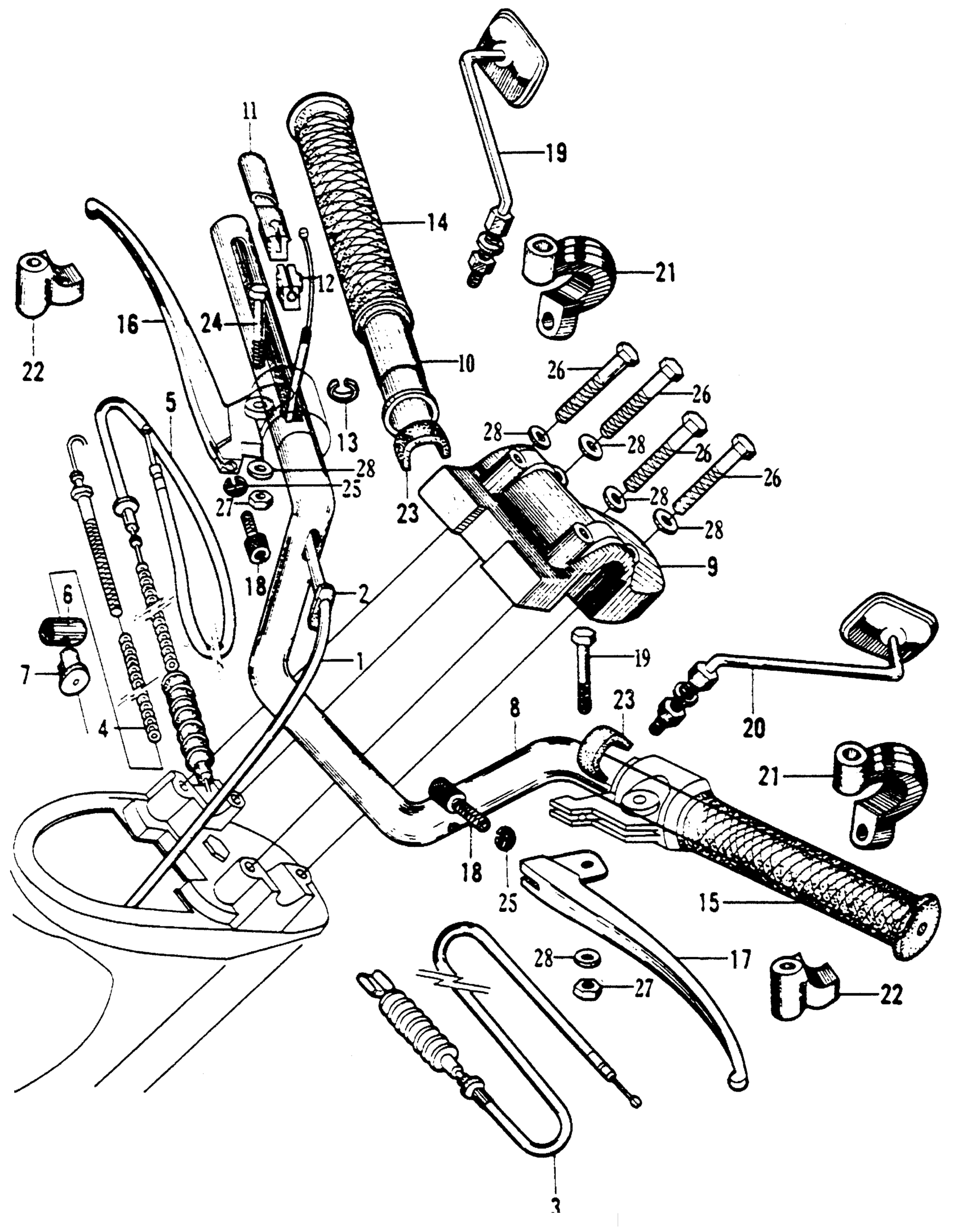

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-030-000.

17910-052-680

Unavailable

1

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-035-810.

17910-052-680

Unavailable

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-052-680

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

CABLE, CLUTCH (NOT AVAILABLE)

22870-030-000

Unavailable

4

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

5

CABLE FR BRAKE This part replaces 45450-028-680.

45450-128-P00

Unavailable

5

CABLE FR BRAKE This part replaces 45450-030-000.

45450-128-P00

Unavailable

5

CABLE FR BRAKE This part replaces 45450-098-660.

45450-128-P00

Unavailable

5

CABLE FR BRAKE This part replaces 45450-098-661.

45450-128-P00

Unavailable

6

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM

95015-31001

$1.53

7

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

8

HANDLEBAR This part replaces 53100-030-610.

53100-030-000

Unavailable

9

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE)

53131-030-000

Unavailable

10

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-011-000

Unavailable

11

HINGE, THROTTLE GRIP (NOT AVAILABLE)

53161-001-000

$5.49

12

HOLDER, THROTTLE CABLE (NOT AVAILABLE)

53162-011-000

Unavailable

13

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE)

53163-001-000

Unavailable

14

RUBBER, HANDLE GRIP This part replaces 53165-011-000.

53010-011-000

Unavailable

15

RUBBER, HANDLE GRIP This part replaces 53166-011-000.

53010-011-000

Unavailable

16

LEVER, R. HANDLEBAR This part replaces 53175-030-000.

53175-052-010

Unavailable

17

LEVER, L. HANDLEBAR (NOT AVAILABLE) | Use up to Frame SN 173387

53178-030-000

Unavailable

17

LEVER, L. HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 173388

53178-030-030

Unavailable

18

BOLT, RR. BRAKE CABLE ADJUSTING (NOT AVAILABLE)

53192-030-000

Unavailable

19

MIRROR, R. This part replaces 88110-001-000.

88110-001-305

Unavailable

19

MIRROR, R.

88110-001-305

Unavailable

19

MIRROR, R. This part replaces 88110-011-000.

88110-001-305

Unavailable

19

MIRROR, R. This part replaces 88120-001-810.

88110-001-305

Unavailable

19

MIRROR, R. This part replaces 88120-011-810.

88110-001-305

Unavailable

20

MIRROR, R.

88110-001-305

Unavailable

20

MIRROR, R. This part replaces 88120-001-810.

88110-001-305

Unavailable

20

MIRROR, R. This part replaces 88120-011-810.

88110-001-305

Unavailable

21

BRACKET, MIRROR (UPPER) (NOT AVAILABLE)

88131-011-020

Unavailable

22

BRACKET, MIRROR (LOWER) (NOT AVAILABLE)

88132-011-020

Unavailable

23

GASKET, MIRROR (NOT AVAILABLE)

88191-011-000

Unavailable

24

SCREW, HANDLE LEVER PIVOT (NOT AVAILABLE) | Use up to Frame SN 173387

90114-011-000

Unavailable

24

SCREW, HANDLE LEVER PIVOT (NOT AVAILABLE) | Use from Frame SN 173388

90114-030-010

Unavailable

25

NUT, FIXING This part replaces 90321-268-000.

90321-315-670

$7.31

25

NUT, FIXING

90321-315-670

$7.31

25

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

26

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

26

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49
