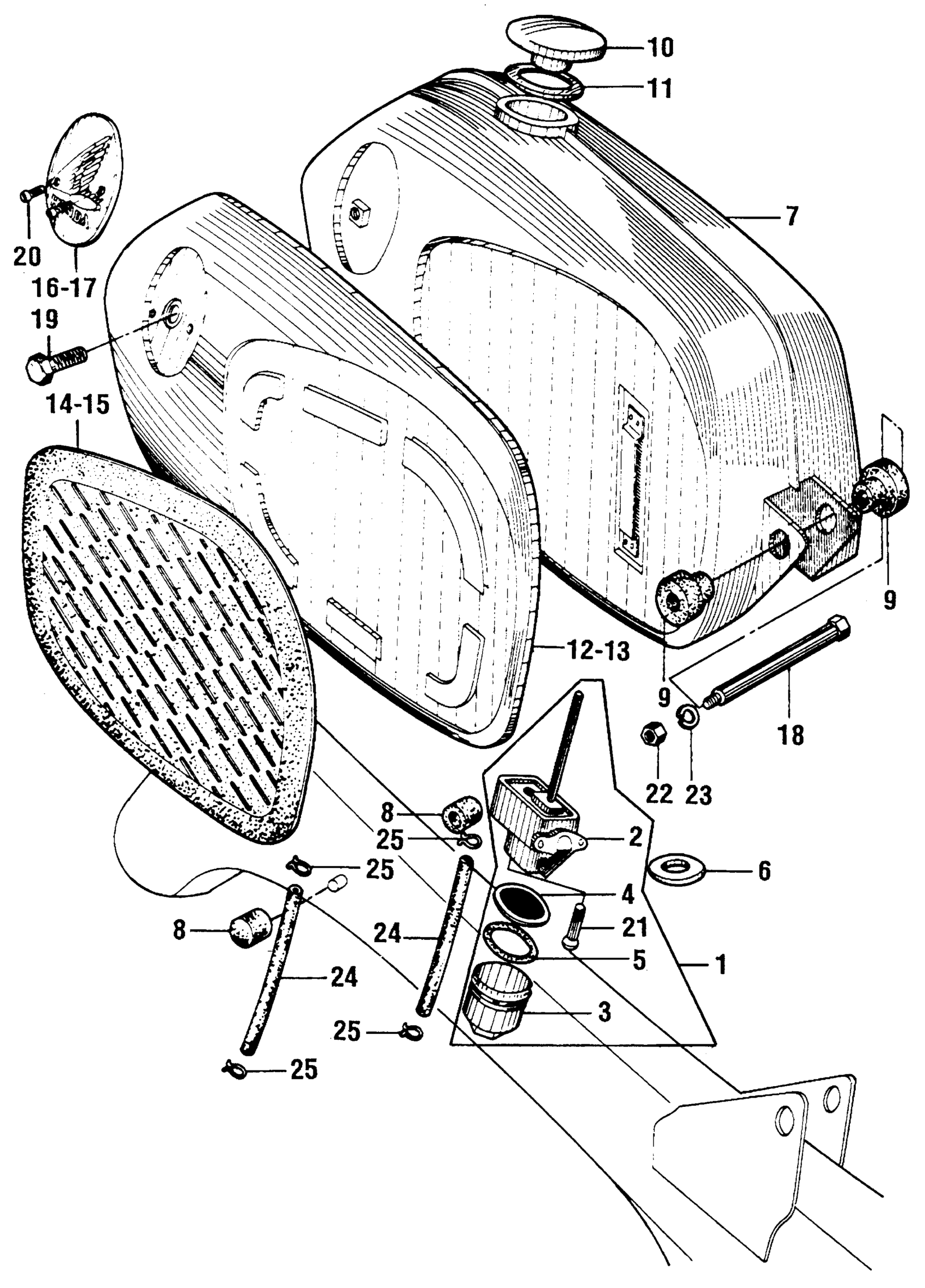

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-011-000

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-011-020

Unavailable

3

CUP, FUEL STRAINER This part replaces 16952-011-010.

16952-028-000

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

4

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$16.22

4

SCREEN, FUEL STRAINER

16957-028-000

$16.22

4

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$16.22

5

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

5

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

5

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

6

GASKET, PETCOCK BODY

16993-011-000

Unavailable

7

TANK, FUEL (NOT AVAILABLE)

17500-030-000Z

Unavailable

8

RUBBER, FR. FUEL TANK This part replaces 17611-011-000.

17611-051-000

$4.89

8

RUBBER, FR. FUEL TANK

17611-051-000

$4.89

9

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-030-000

Unavailable

10

CAP FUEL This part replaces 17620-035-000.

17620-035-405

Unavailable

11

GASKET, FUEL FILLER CAP This part replaces 17631-253-000.

17631-253-010

Unavailable

11

GASKET, FUEL FILLER CAP

17631-253-010

Unavailable

12

COVER, R. SIDE FUEL TANK (NOT AVAILABLE)

17640-030-000

Unavailable

12

COVER, R. This part replaces 17640-030-010.

17640-030-020

Unavailable

13

COVER, L. SIDE FUEL TANK (NOT AVAILABLE)

17650-030-000

Unavailable

13

COVER, L. | Use from Frame SN 277768 This part replaces 17650-030-010.

17650-030-020

Unavailable

14

RUBBER, R. KNEE GRIP (NOT AVAILABLE)

17661-030-000

Unavailable

15

RUBBER, L. KNEE GRIP (NOT AVAILABLE)

17662-030-000

Unavailable

16

EMBLEM, L. FUEL TANK

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87121-030-000.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87121-056-000.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87121-200-020.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87121-201-010.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87121-217-000.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87122-030-000.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87122-056-000.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87122-200-020.

87020-070-010

$35.02

16

EMBLEM, L. FUEL TANK This part replaces 87122-217-000.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87121-056-000.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87121-200-020.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87121-201-010.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87121-217-000.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87122-030-000.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87122-056-000.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87122-200-020.

87020-070-010

$35.02

17

EMBLEM, L. FUEL TANK This part replaces 87122-217-000.

87020-070-010

$35.02

18

BOLT, FUEL TANK FIXING (NOT AVAILABLE)

90119-030-000

Unavailable

19

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

19

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

20

SCREW, PAN (3X8) (NOT AVAILABLE)

93500-03008-0B

Unavailable

20

SCREW, PAN (3X8) (NOT AVAILABLE)

93500-03008-02

Unavailable

21

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

21

SCREW, PAN (6X16)

93500-06016-0A

$1.49

21

CLIP, TUBE (C8)

95002-45000

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

TUBE (4.5) This part replaces 95001-45000.

95001-45000-40

Unavailable

24

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$36.67

24

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45085.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45105.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45118.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45120.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45130.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45140.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45150.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45180.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45190.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45210.

95001-45000-40

Unavailable

24

TUBE (4.5) This part replaces 95001-45475.

95001-45000-40

Unavailable

25

CLIP, TUBE (C8)

95002-45000

$1.49
