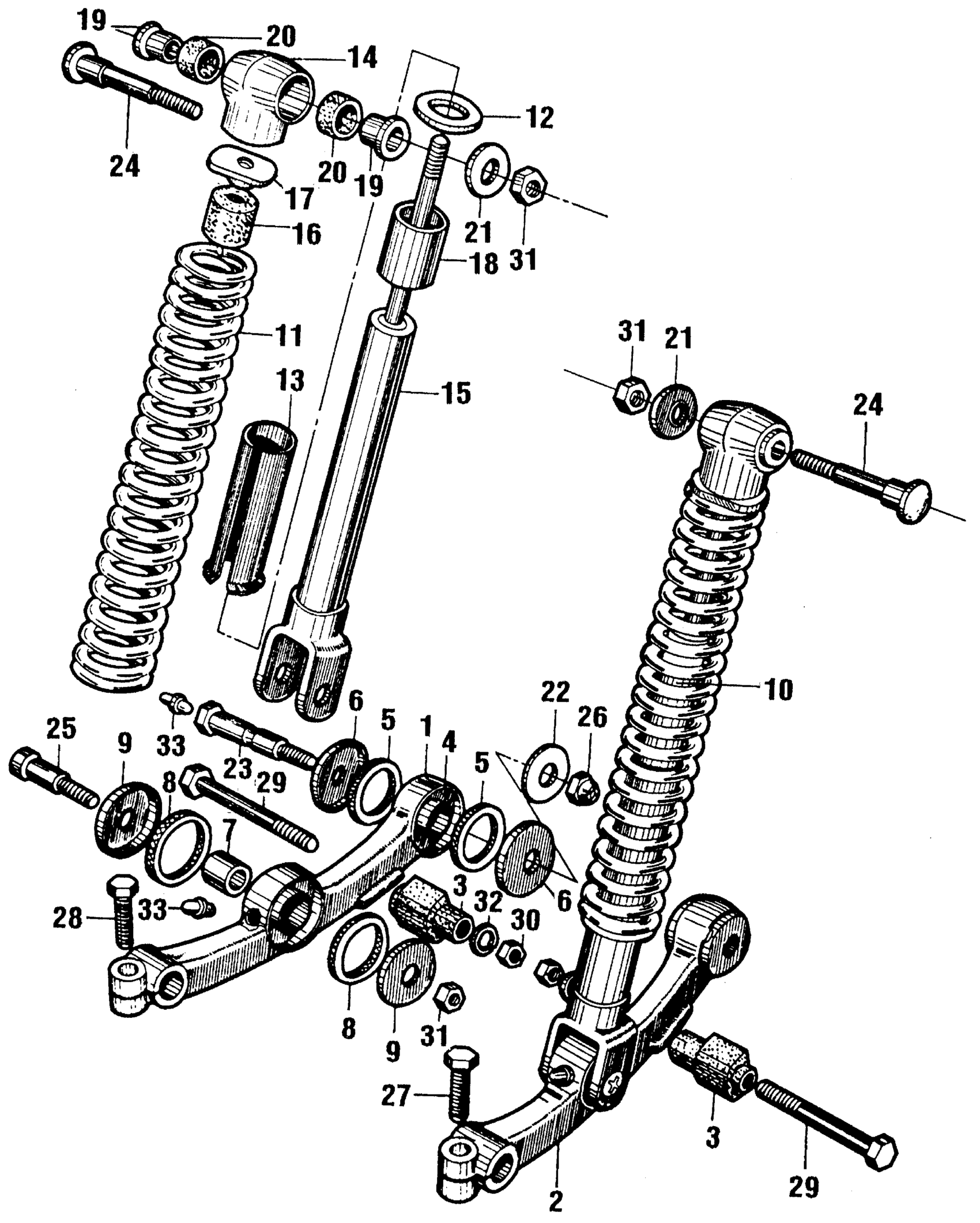

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

ARM, R. FR. FORK (NOT AVAILABLE)

51210-030-000

Unavailable

2

ARM, L. FR. FORK (NOT AVAILABLE)

51220-030-000

Unavailable

3

STOPPER, FR. ARM REBOUND (NOT AVAILABLE)

51251-001-000

Unavailable

4

COLLAR, FR. ARM PIVOT (NOT AVAILABLE)

51331-001-000

Unavailable

5

DUST SEAL, FR. ARM PIVOT

51332-001-000

Unavailable

6

CAP, FR. ARM PIVOT DUST SEAL

51333-001-000

Unavailable

7

COLLAR, FR. FORK DISTANCE (LOWER) (NOT AVAILABLE)

51334-001-000

Unavailable

8

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

9

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

10

SHOCK ABSORBER ASSY., FR. (NOT AVAILABLE) | Use up to Frame SN 26910

51400-030-000

Unavailable

10

SHOCK ABSORBER ASSY., FR. (NOT AVAILABLE) | Use from Frame SN 286911

51400-034-000

Unavailable

11

SPRING, FR. FORK (NOT AVAILABLE) | Use up to Frame SN 184648 This part replaces 51401-030-000.

51401-030-010

Unavailable

11

SPRING, FR. FORK (NOT AVAILABLE) | Use up to Frame SN 286910

51401-030-010

Unavailable

11

SPRING, FR. FORK (NOT AVAILABLE) | Use from Frame SN 286911

51410-034-000

Unavailable

12

SEAT, FR. FORK SPRING (NOT AVAILABLE)

51407-001-000

Unavailable

13

GUIDE, FR. FORK SPRING (NOT AVAILABLE)

51409-001-020

Unavailable

14

METAL, FR. FORK (UPPER) (NOT AVAILABLE)

51410-001-040

Unavailable

15

METAL, FR. DAMPER (LOWER) (NOT AVAILABLE)

51420-030-000

Unavailable

16

RUBBER, FR. FORK STOPPER (NOT AVAILABLE)

51475-030-000

Unavailable

17

NUT, FR. FORK LOCK (LOWER) (NOT AVAILABLE)

51482-001-020

Unavailable

18

COLLAR, FR. FORK (OUTER) (NOT AVAILABLE) | Use up to Frame SN 184648

51486-030-000

Unavailable

18

COLLAR, FR. FORK (OUTER) (NOT AVAILABLE) | Use from Frame SN 184649

51486-030-010

Unavailable

19

COLLAR, FR. FORK (UPPER) (NOT AVAILABLE)

51488-001-000

Unavailable

20

BUSH, FR. FORK (NOT AVAILABLE)

51489-001-000

Unavailable

21

METAL, FR. FENDER FIXING (UPPER) (NOT AVAILABLE) | Use up to Frame SN 264338 This part replaces 61117-001-000.

61117-001-010

Unavailable

21

METAL, FR. FENDER FIXING (UPPER) (NOT AVAILABLE) | Use up to Frame SN 264338

61117-001-010

Unavailable

22

METAL, FR. FENDER FIXING (LOWER) | Use from Frame SN 264339 This part replaces 61142-001-000.

61142-001-010

$3.03

22

METAL, FR. FENDER FIXING (LOWER) | Use from Frame SN 264339

61142-001-010

$3.03

23

BOLT, FR. ARM (NOT AVAILABLE)

90125-001-000

Unavailable

24

BOLT, FR. SHOCK (UPPER) (NOT AVAILABLE)

90147-001-000

Unavailable

25

BOLT, FR. SHOCK (LOWER) (NOT AVAILABLE)

90149-001-010

Unavailable

26

NUT, SELF-LOCK (8MM)

90349-001-000

$2.83

27

BOLT, HEX. (8X22) This part replaces 90061-030-000.

92101-08022-0A

Unavailable

27

BOLT, HEX. (8X22) This part replaces 92000-08022.

92101-08022-0A

Unavailable

27

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

28

BOLT, HEX. (8X28) This part replaces 92000-08028.

92101-08028-0A

$1.80

28

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

28

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

29

BOLT, HEX. (8X45) This part replaces 92000-08044.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45) This part replaces 92000-08045.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45) This part replaces 92000-08045-00.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45) This part replaces 92000-08046.

92101-08045-0A

$2.13

29

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

30

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

30

NUT, HEX. (8MM)

94030-08000

$1.49

30

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

31

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

31

NUT, HEX. (8MM)

94031-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

33

FITTING, GREASE (A.45)

96201-30001

$1.49
