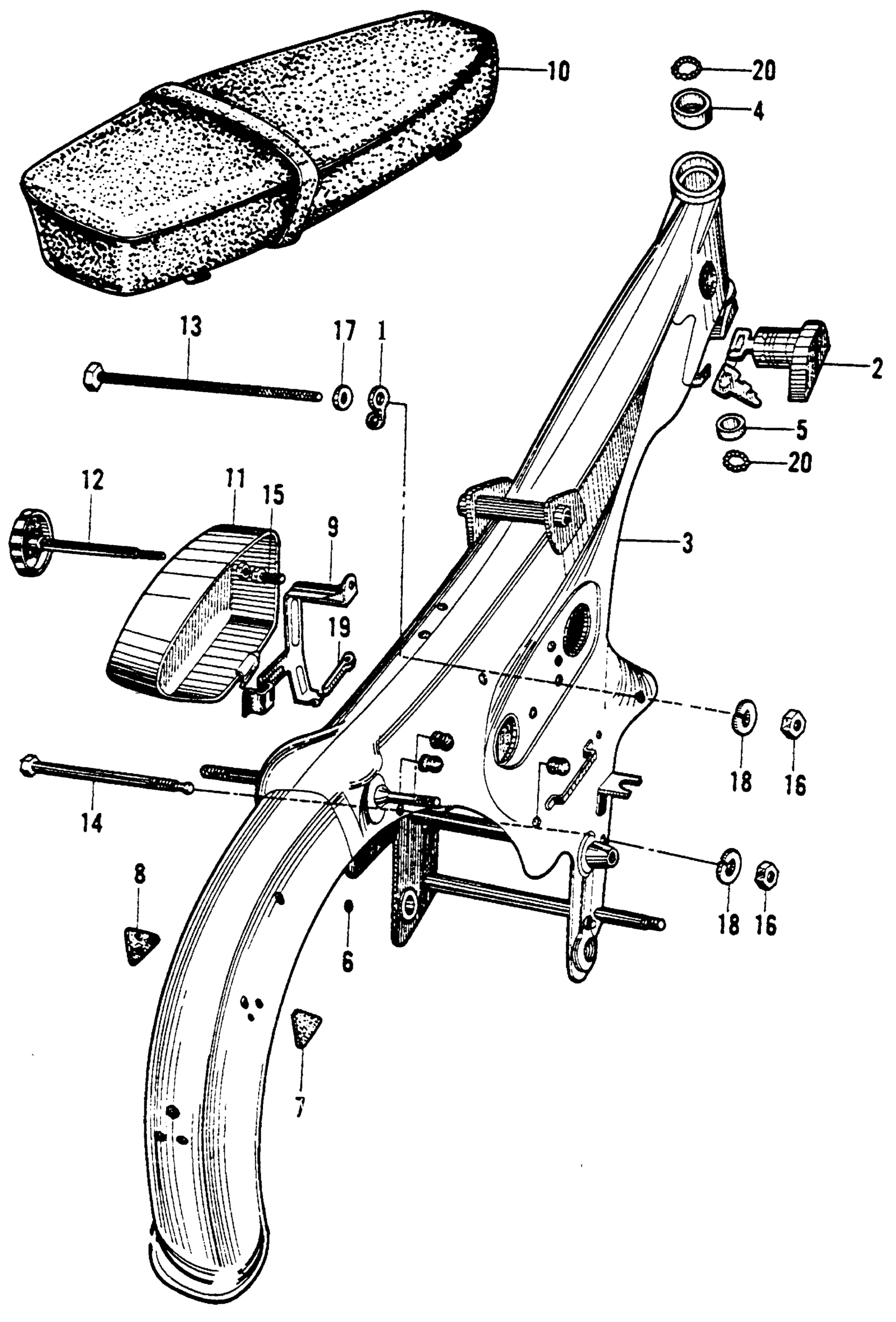

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 FRAME + SEAT Diagram

#

Description
Price

1

CLIP, OVERFLOW TUBE (NOT AVAILABLE) This part replaces 17258-030-000.

17258-035-000

Unavailable

1

CLIP, OVERFLOW TUBE (NOT AVAILABLE)

17258-035-000

Unavailable

2

SWITCH ASSY., COMBINATION WITH HANDLE LOCK (NOT AVAILABLE)

35010-030-010

Unavailable

3

FRAME (NOT AVAILABLE)

50100-030-000Z

Unavailable

4

RACE, STEERING BALL This part replaces 50301-030-305.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

4

RACE, STEERING BALL

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-918-000.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50302-030-305.

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING BALL

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50302-030-305.

50301-041-010

$12.39

6

CAP, FENDER HOLE (NOT AVAILABLE)

50323-011-000

Unavailable

7

GROMMET, R. RR. FENDER (NOT AVAILABLE)

50327-022-000

Unavailable

8

GROMMET, L. RR. FENDER (NOT AVAILABLE)

50328-022-000

Unavailable

9

BAND, BATTERY (NOT AVAILABLE)

50373-030-000

Unavailable

10

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77200-030-600A

Unavailable

11

COVER, BATTERY *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

83600-030-000A

Unavailable

11

COVER, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

83600-030-000B

Unavailable

11

COVER, BATTERY *R2* (SCARLET) (NOT AVAILABLE)

83600-030-000C

Unavailable

12

LATCH, BATTERY BOX *NH1* (BLACK) (NOT AVAILABLE)

83650-030-000B

Unavailable

13

BOLT A, RR. ENGINE SUPPORT (NOT AVAILABLE)

90112-001-000

Unavailable

14

BOLT, RR. ENGINE (LOWER) This part replaces 90116-001-000.

90116-001-010

$8.83

14

BOLT, RR. ENGINE (LOWER)

90116-001-010

$8.83

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

16

NUT, HEX. (8MM)

94030-08000

$1.49

16

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49

19

PIN, SPLIT (3.0X45)

94201-30450

$1.49

20

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
