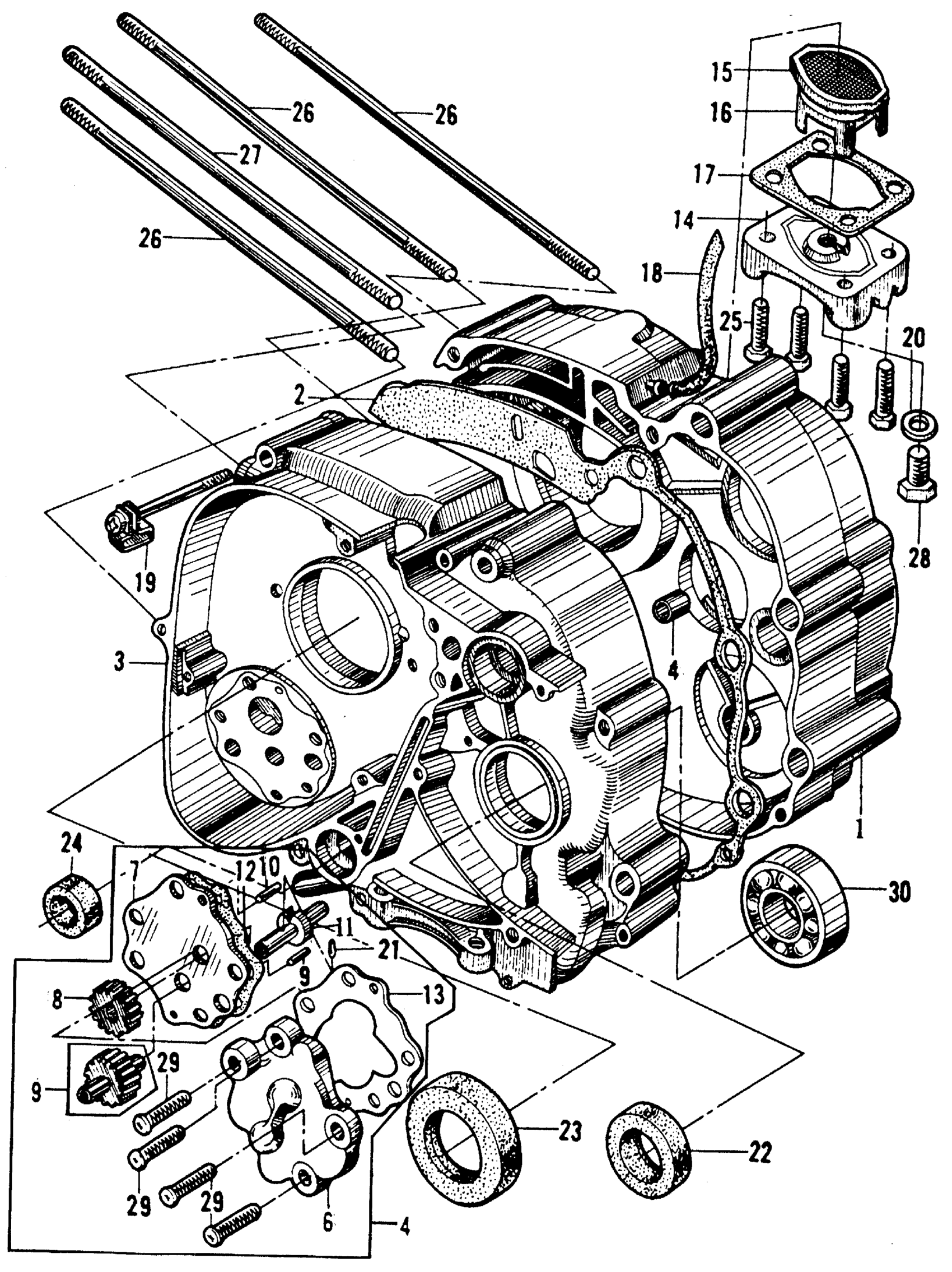

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 182630 This part replaces 11100-030-000.

11100-030-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 267963 This part replaces 11100-030-010.

11100-030-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE)

11100-030-020

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE)

11191-030-000

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 205673 This part replaces 11200-030-020.

11200-034-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 205673 This part replaces 11200-030-030.

11200-034-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 205673 This part replaces 11200-030-050.

11200-034-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use up to Engine SN 205673

11200-034-020

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE) | Use up to Engine SN 205673

15100-030-010

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 205676 to 259693 This part replaces 15100-030-030.

15100-030-040

Unavailable

4

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 205676

15100-030-040

Unavailable

5

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

5

PIN A, DOWEL (10X14)

94301-10140

$2.28

6

BODY, OIL PUMP (NOT AVAILABLE)

15111-030-010

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE)

15111-030-030

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE)

15111-030-040

Unavailable

7

COVER, OIL PUMP SIDE (NOT AVAILABLE)

15121-030-010

Unavailable

7

COVER, OIL PUMP SIDE (NOT AVAILABLE)

15121-030-030

Unavailable

8

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15131-030-000

Unavailable

8

GEAR, OIL PUMP DRIVE (NOT AVAILABLE) | Use from Engine SN 205674 to 259693

15131-030-010

Unavailable

8

GEAR, OIL PUMP DRIVE (NOT AVAILABLE) | Use from Engine SN 259694

15131-030-030

Unavailable

9

GEAR, OIL PUMP DRIVEN (NOT AVAILABLE)

15142-030-000

Unavailable

10

PIN, OIL PUMP SIDE COVER (NOT AVAILABLE)

15199-250-000

Unavailable

10

PIN, KNOCK (3.5X10MM) (NOT AVAILABLE)

90703-030-000

Unavailable

10

PIN, KNOCK (3.5X10MM) (NOT AVAILABLE)

90703-030-010

Unavailable

11

SHAFT, OIL PUMP DRIVE GEAR (NOT AVAILABLE) | Use from Engine SN 100001 to 205673

15182-030-000

Unavailable

11

SHAFT, OIL PUMP DRIVE GEAR (NOT AVAILABLE) | Use from Engine SN 205674 to 259693

15182-030-010

Unavailable

11

SHAFT, OIL PUMP DRIVE GEAR (NOT AVAILABLE) | Use from Engine SN 259694

15182-030-020

Unavailable

12

GASKET A, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 100001 to 205673

15192-030-010

Unavailable

12

GASKET A, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 205674

15192-030-030

Unavailable

13

GASKET B, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 100001 to 205673 This part replaces 15193-030-010.

15193-030-030

Unavailable

13

GASKET B, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 205674

15193-030-030

Unavailable

14

COVER, OIL STRAINER (NOT AVAILABLE)

15416-030-000

Unavailable

15

STRAINER, OIL (NOT AVAILABLE) | Use up to Engine SN 187002

15421-030-000

Unavailable

15

STRAINER, OIL (NOT AVAILABLE) | Use from Engine SN 187003 to 267963

15421-030-010

Unavailable

15

STRAINER, OIL (NOT AVAILABLE) | Use from Engine SN 267964

15421-030-020

Unavailable

16

HOLDER, OIL STRAINER (NOT AVAILABLE) | Use from Engine SN 187003 to 267963

15431-030-000

Unavailable

16

HOLDER, OIL STRAINER (NOT AVAILABLE) | Use from Engine SN 267964

15431-030-010

Unavailable

17

GASKET, OIL STRAINER COVER (NOT AVAILABLE)

15439-030-000

Unavailable

18

PIPE, BREATHER (NOT AVAILABLE) | Use up to Engine SN 213003

15761-011-000

Unavailable

18

PIPE, BREATHER (NOT AVAILABLE) | Use up to Engine SN 213003 This part replaces 15761-011-305.

15761-011-000

Unavailable

18

PIPE, BREATHER (NOT AVAILABLE) | Use up to Engine SN 213003 This part replaces 15761-030-000.

15761-011-000

Unavailable

19

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-011-010

Unavailable

20

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

20

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

20

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

21

PIN (2.5X8MM) (NOT AVAILABLE)

90701-030-000

Unavailable

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

22

OIL SEAL (20X34X7)

91201-030-015

Unavailable

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

22

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

23

OIL SEAL (25X52X7)

91202-030-000

Unavailable

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91203-001-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

24

OIL SEAL (11.6X24X10) (ARAI)

91208-KB4-671

$4.06

25

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

25

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

26

BOLT, STUD (8X188) (NOT AVAILABLE)

92700-08188-30

Unavailable

27

BOLT, STUD (8X193) (NOT AVAILABLE)

92700-08193-30

Unavailable

28

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

29

SCREW, PAN (5X16) (NOT AVAILABLE)

93500-05016

Unavailable

29

SCREW, PAN (5X16)

93500-05016-0A

$1.49

30

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

30

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
