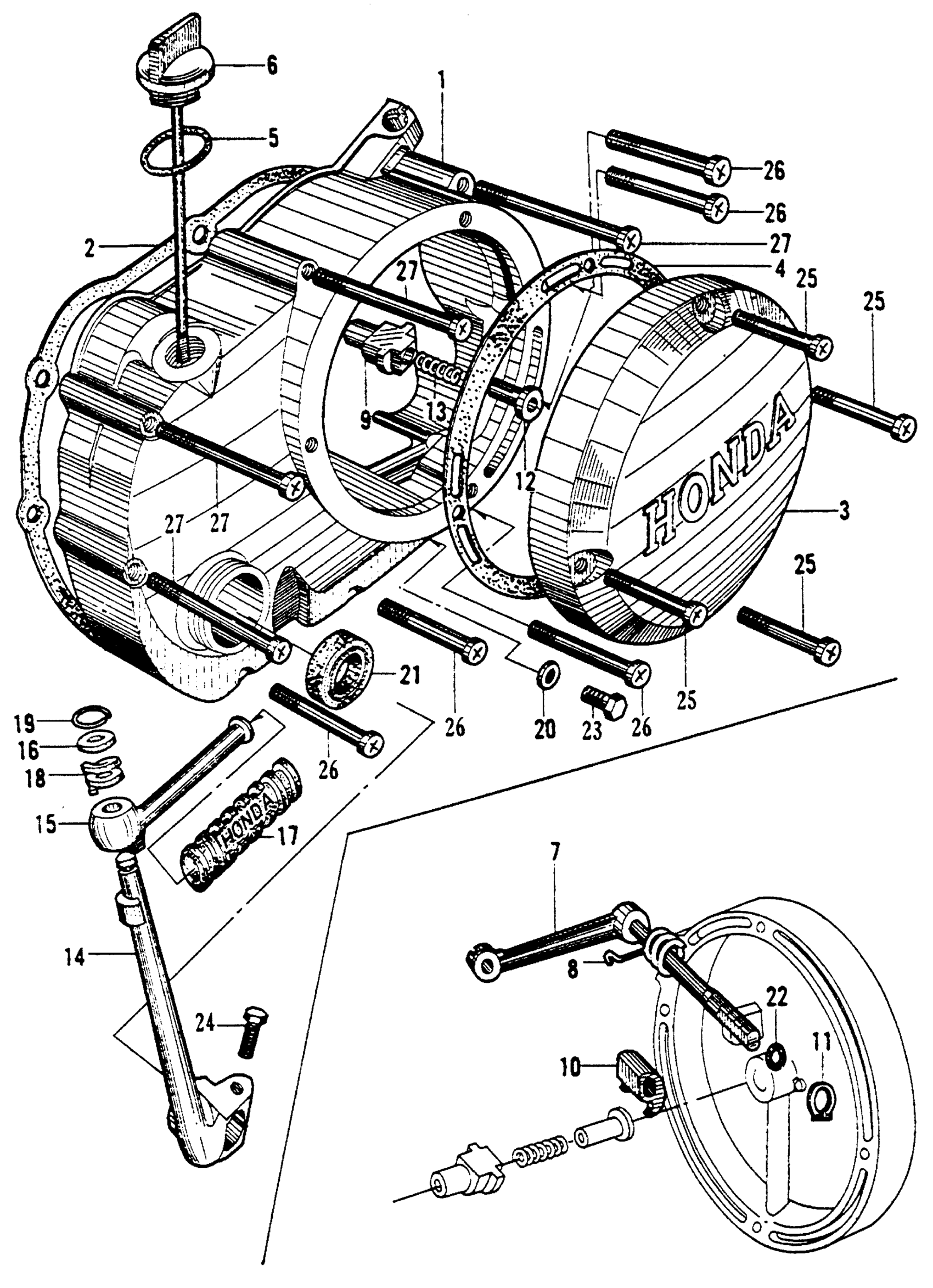

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 CRANKCASE COVER + KICK STARTER ARM Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-030-000

Unavailable

2

GASKET, R. This part replaces 11394-030-000.

11394-030-306

Unavailable

3

COVER, CLUTCH (NOT AVAILABLE)

11650-030-000

Unavailable

4

GASKET, CLUTCH COVER (NOT AVAILABLE)

11692-030-000

Unavailable

5

GASKET, OIL CAP (NOT AVAILABLE)

15619-001-000

Unavailable

6

DIPSTICK, OIL (NOT AVAILABLE)

15650-030-000

Unavailable

7

LEVER, CLUTCH (NOT AVAILABLE)

22810-030-000

Unavailable

8

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-030-010

Unavailable

9

LIFTER, CLUTCH (NOT AVAILABLE)

22831-030-000

Unavailable

10

ARM, CLUTCH LIFTER (NOT AVAILABLE)

22834-030-000

Unavailable

11

SNAP-RING (10MM) (NOT AVAILABLE)

22875-030-000

Unavailable

12

GUIDE, OIL (NOT AVAILABLE)

25551-030-000

Unavailable

13

SPRING, OIL GUIDE (NOT AVAILABLE)

25576-703-000

Unavailable

14

ARM, KICK STARTER

28301-040-000

Unavailable

15

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

15

PEDAL, KICK STARTER

28302-126-770

Unavailable

16

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

17

RUBBER A, KICK STARTER This part replaces 28311-001-000.

95011-51000

$3.69

17

RUBBER A, KICK STARTER

95011-51000

$3.69

18

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

19

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

20

WASHER A (6MM)

90478-700-000

$1.49

21

OIL SEAL (14X26X6) This part replaces 91203-023-020.

91251-ZW5-003

$3.81

21

OIL SEAL (14X26X6)

91251-ZW5-003

$3.81

22

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

23

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

23

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

25

SCREW, PAN (6X28)

93500-06028-0A

$1.49

26

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

26

SCREW, PAN (6X50)

93500-06050-0A

$1.49

27

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

27

SCREW, PAN (6X60)

93500-06060-0A

$1.49
