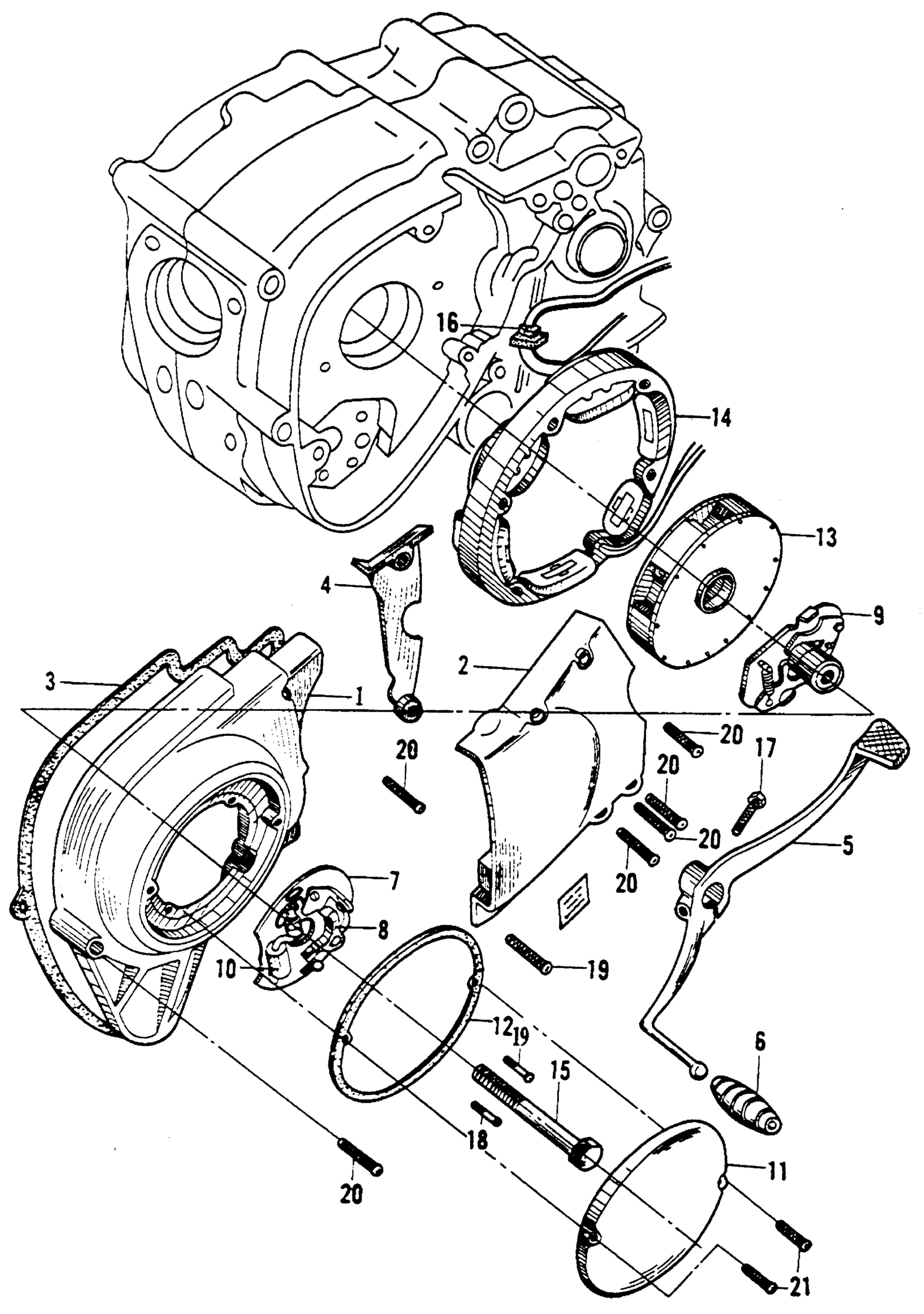

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-030-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-030-000

Unavailable

3

GASKET, L. This part replaces 11395-033-000.

11395-033-306

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-030-013.

31100-030-014

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-030-014

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-030-015.

31100-030-014

Unavailable

4

COVER, DRIVE SPROCKET (NOT AVAILABLE)

11660-030-000

Unavailable

5

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-030-000

Unavailable

6

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

6

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

6

RUBBER, CHANGE PEDAL

95011-40000

$1.49

7

PLATE, POINTS BASE (NOT AVAILABLE) This part replaces 30200-003-003.

30200-039-154

Unavailable

7

PLATE, POINTS BASE (NOT AVAILABLE) This part replaces 30200-003-004.

30200-039-154

Unavailable

7

PLATE, POINTS BASE (NOT AVAILABLE) This part replaces 30200-003-005.

30200-039-154

Unavailable

7

PLATE, POINTS BASE (NOT AVAILABLE) This part replaces 30200-039-005.

30200-039-154

Unavailable

7

PLATE, POINTS BASE (NOT AVAILABLE)

30200-039-154

Unavailable

8

POINTS (NOT AVAILABLE)

30202-003-003

Unavailable

8

POINTS (TOYO) This part replaces 30202-003-015.

30202-039-154

Unavailable

8

POINTS (TOYO) (NOT AVAILABLE)

30202-039-154

Unavailable

9

SPARK ADVANCE (NOT AVAILABLE)

30220-030-014

Unavailable

10

CONDENSER (HITACHI) (NOT AVAILABLE)

30251-003-005

Unavailable

10

CONDENSER (HITACHI) (NOT AVAILABLE) This part replaces 30251-030-005.

30251-003-005

Unavailable

11

COVER, POINTS (NOT AVAILABLE)

30371-003-000

Unavailable

12

GASKET, POINTS COVER (NOT AVAILABLE)

30391-030-000

Unavailable

13

ROTOR, ALTERNATOR (NOT AVAILABLE)

31101-030-013

Unavailable

13

ROTOR, ALTERNATOR (NOT AVAILABLE)

31101-030-015

Unavailable

14

STATOR ASSY. (NOT AVAILABLE)

31102-030-013

Unavailable

14

STATOR ASSY., ALTERNATOR (NOT AVAILABLE)

31102-030-015

Unavailable

15

BOLT, ALTERNATOR SET (NOT AVAILABLE) This part replaces 31104-030-003.

31104-030-005

Unavailable

15

BOLT, ALTERNATOR SET (NOT AVAILABLE)

31104-030-005

Unavailable

16

GROMMET, ALTERNATOR WIRE (NOT AVAILABLE)

32971-030-000

Unavailable

17

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

17

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

17

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

18

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

18

SCREW, PAN (5X12)

93500-05012-0A

$1.49

19

SCREW, PAN (6X22) This part replaces 93500-06022.

93500-06022-0A

$1.49

19

SCREW, PAN (6X22)

93500-06022-0A

$1.49

20

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

20

SCREW, PAN (6X28)

93500-06028-0A

$1.49

21

SCREW, OVAL (5X20) (NOT AVAILABLE)

93700-05020

Unavailable
