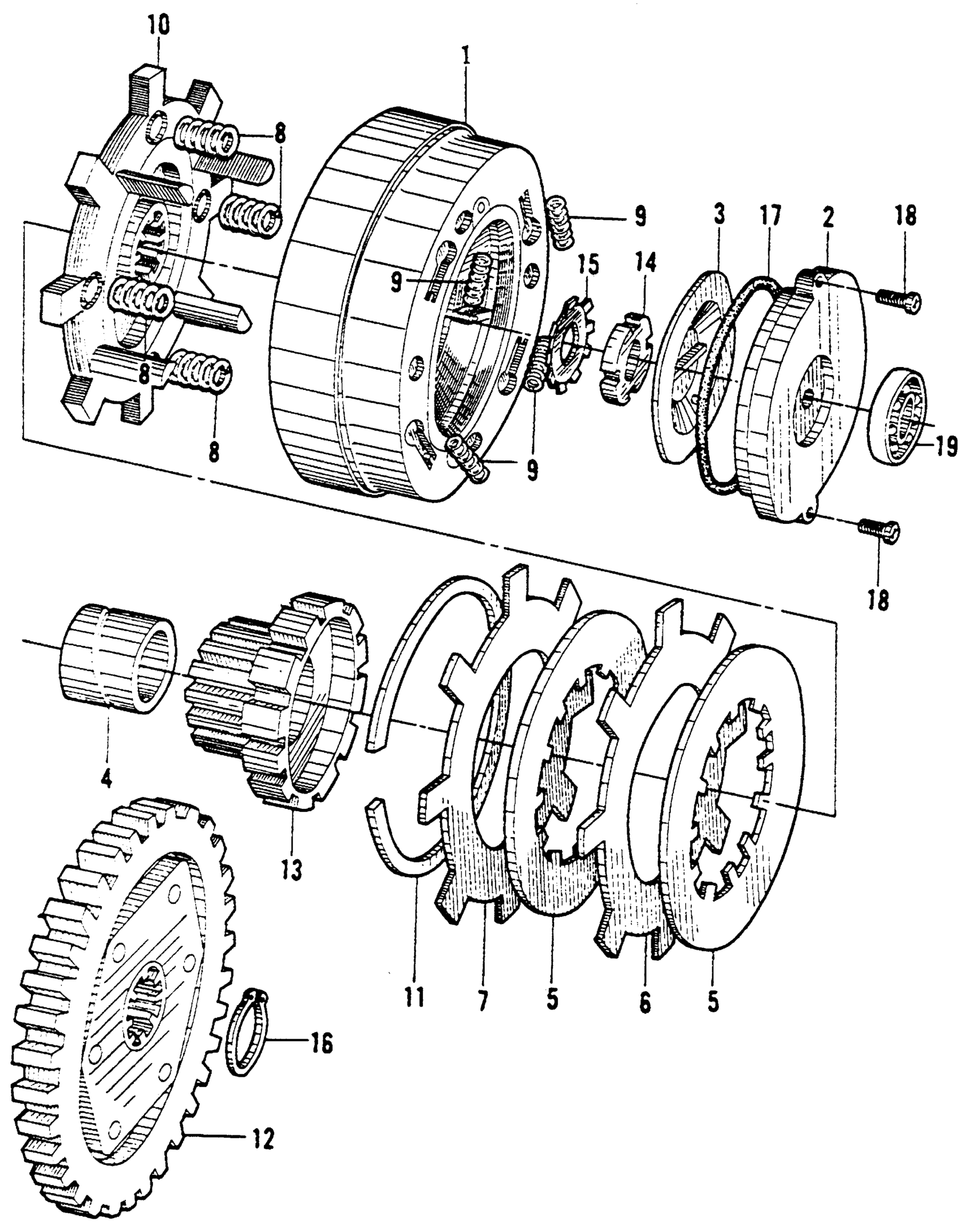

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 208740 This part replaces 22101-030-000.

22101-030-010

Unavailable

1

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 208741

22101-030-010

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE) | Use up to Engine SN 208740 This part replaces 22111-030-000.

22111-030-010

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 208741

22111-030-010

Unavailable

3

PLATE, OIL FILTER (NOT AVAILABLE)

22115-030-000

Unavailable

4

GUIDE, CLUTCH CENTER This part replaces 22131-028-000.

22131-121-690

Unavailable

4

GUIDE, CLUTCH CENTER This part replaces 22131-030-000.

22131-121-690

Unavailable

4

GUIDE, CLUTCH CENTER

22131-121-690

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-028-000.

22201-030-405

Unavailable

5

DISK, CLUTCH FRICTION | Use up to Engine SN 202133 This part replaces 22201-030-000.

22201-030-405

Unavailable

5

DISK, CLUTCH FRICTION | Use from Engine SN 100001 This part replaces 22201-030-030.

22201-030-405

Unavailable

6

PLATE A, CLUTCH | Use from Engine SN 216894

22311-030-000

Unavailable

7

PLATE B, CLUTCH (NOT AVAILABLE) | Use from Engine SN 216894

22321-030-000

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 115467 to 127266

22401-028-000

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 115466

22401-028-010

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 115466 This part replaces 22401-030-000.

22401-028-010

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 115467 to 127266 This part replaces 22401-030-010.

22401-028-000

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 202134 to 288258 This part replaces 22401-030-010.

22401-028-000

Unavailable

8

SPRING, CLUTCH (NOT AVAILABLE) | Use from Engine SN 127267 to 202133

22401-030-020

Unavailable

9

SPRING, CLUTCH DAMPER This part replaces 22421-001-000.

22421-035-000

$4.15

9

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

10

PLATE, DRIVE | Use from Engine SN 100001 to 115466 This part replaces 22511-030-000.

22511-030-010

Unavailable

10

PLATE, DRIVE | Use from Engine SN 100001

22511-030-010

Unavailable

11

SET-RING (102MM)

22901-001-000

$4.02

12

GEAR, PRIMARY DRIVEN

23110-028-000

Unavailable

13

GEAR, DRIVE (18T) (NOT AVAILABLE)

23111-030-000

Unavailable

14

NUT, LOCK (16MM) This part replaces 90231-023-000.

90231-KCS-651

$4.21

14

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

14

NUT, LOCK (16MM) This part replaces 90231-030-000.

90231-KCS-651

$4.21

14

NUT, LOCK (16MM) This part replaces 90231-200-000.

90231-KCS-651

$4.21

15

WASHER, LOCKING (16MM) (NOT AVAILABLE)

90431-030-000

Unavailable

16

CIRCLIP (18MM)

90601-030-000

$1.77

17

O-RING (55.8X2) (NOT AVAILABLE)

91302-030-000

Unavailable

18

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

18

SCREW, PAN (5X12)

93500-05012-0A

$1.49

19

BEARING, RADIAL BALL (6000) This part replaces 96100-60000.

96100-60000-00

$8.13

19

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
