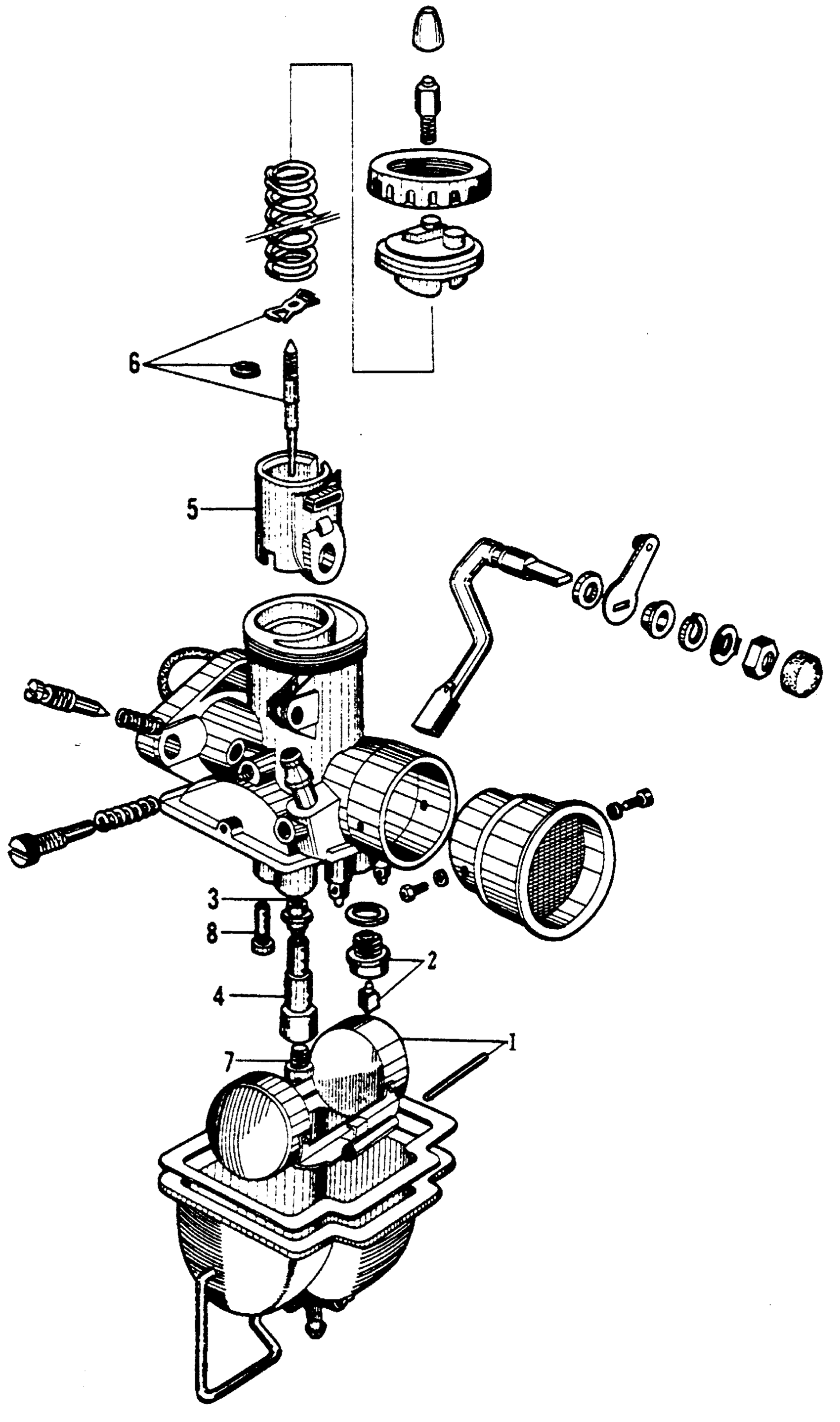

Honda CA200A MOTORCYCLE, JPN, VIN# C200-1000001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-030-004.

16100-030-810

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-030-600.

16100-030-810

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-030-810

Unavailable

2

VALVE SET, FLOAT

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16123-011-004.

16011-051-004

$16.40

2

VALVE SET, FLOAT This part replaces 16123-011-014.

16011-051-004

$16.40

3

NEEDLE, JET (NOT AVAILABLE)

16133-202-004

Unavailable

4

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-030-004

Unavailable

5

VALVE, THROTTLE (NOT AVAILABLE)

16141-202-004

Unavailable

6

NEEDLE, JET (NOT AVAILABLE)

16151-030-004

Unavailable

7

JET, MAIN (#90) (NOT AVAILABLE) This part replaces 99102-09004.

99114-051-0900

Unavailable

7

JET, MAIN (#95) This part replaces 99102-09504.

99114-051-0950

Unavailable

7

JET, MAIN (#100) (NOT AVAILABLE)

99102-10004

Unavailable

7

JET, MAIN (#90) (NOT AVAILABLE)

99114-051-0900

Unavailable

8

JET, SLOW (#38) (NOT AVAILABLE)

99129-03804

Unavailable

8

JET, SLOW (#40) (NOT AVAILABLE)

99129-04004

Unavailable

8

JET, SLOW (#42) (NOT AVAILABLE)

99129-04204

Unavailable
