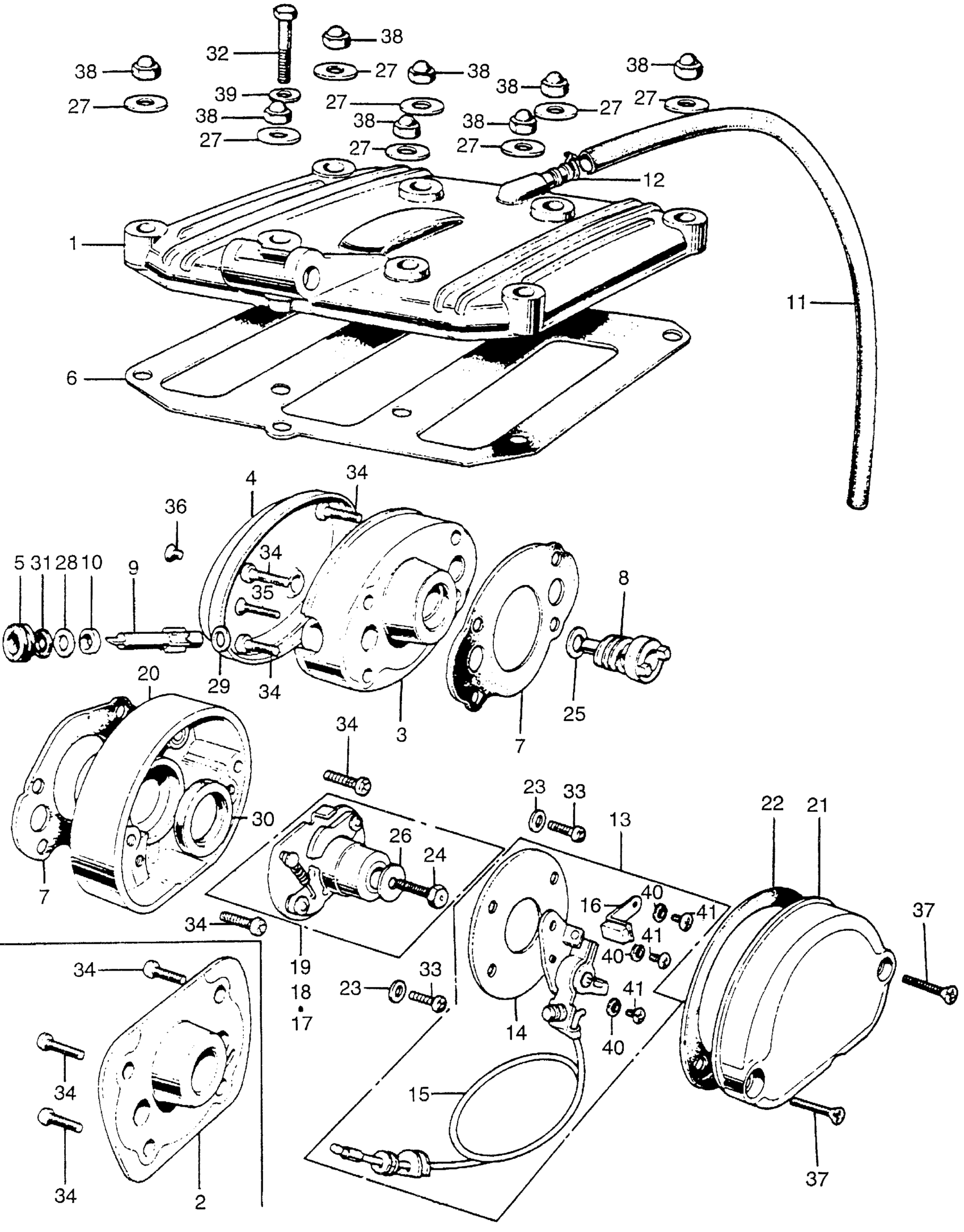

Honda CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12300-302-010

Unavailable

2

COVER, R. CYLINDER HEAD SIDE

12331-235-010

$31.23

6

GASKET, CYL HD CVR This part replaces 12391-216-000.

12391-354-306

Unavailable

6

GASKET, CYL HD CVR This part replaces 12391-354-000.

12391-354-306

Unavailable

7

GASKET, R. CYLINDER HEAD COVER This part replaces 12394-216-000.

12394-216-306

Unavailable

7

GASKET, R. CYLINDER HEAD COVER

12394-216-306

Unavailable

11

*95005-11001-30M This part replaces 15761-292-010.

95005-11570-30

Unavailable

11

*95005-11001-30M This part replaces 15761-292-030.

95005-11570-30

Unavailable

12

CLIP, BREATHER TUBE

15772-292-010

$2.92

13

POINTS ASSY. (TOYO) (NOT AVAILABLE) This part replaces 30200-235-015.

30200-235-154

Unavailable

13

POINTS ASSY. (TOYO) (NOT AVAILABLE)

30200-235-154

Unavailable

14

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE)

30201-235-004

Unavailable

14

PLATE, POINTS BASE (HITACHI)

30201-235-015

Unavailable

15

POINTS (DENSO)

30202-107-004

$43.04

15

POINTS (TOYO)

30202-107-154

$27.89

15

POINTS (HITACHI)

30202-216-005

Unavailable

16

FELT, OIL (DENSO) (NOT AVAILABLE)

30205-216-004

Unavailable

16

FELT, OIL (HITACHI) (NOT AVAILABLE)

30205-216-005

Unavailable

17

ADVANCER ASSY., SPARK (NOT AVAILABLE) | Use from Engine SN 2000191

30220-302-015

Unavailable

19

ADVANCER ASSY., SPARK | Use up to Engine SN 2000190 This part replaces 30220-307-005.

30220-307-154

Unavailable

19

ADVANCER ASSY., SPARK | Use up to Engine SN 2000190

30220-307-154

Unavailable

20

BASE, POINTS (NOT AVAILABLE)

30361-235-000

Unavailable

21

COVER, POINTS

30370-216-000

Unavailable

22

GASKET, POINTS COVER This part replaces 30391-216-000.

30391-216-306

Unavailable

23

WASHER, POINTS LOCK (NOT AVAILABLE)

30903-216-000

Unavailable

24

BOLT, SETTING (5X20) (NOT AVAILABLE)

90001-235-000

Unavailable

26

WASHER, SPECIAL (5MM) (NOT AVAILABLE)

90427-816-650

Unavailable

27

WASHER, SEAL (8MM)

90441-286-000

$1.90

30

OIL SEAL (20X35X5.5) (ARAI) This part replaces 91204-216-000.

91204-216-003

$6.31

30

OIL SEAL (20X35X55)

91204-216-003

$6.31

32

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

32

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

33

SCREW, PAN (5X12)

93500-05012-0A

$1.49

34

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

34

SCREW, PAN (6X20)

93500-06020-0A

$1.49

37

SCREW, OVAL (5X25)

93700-05025-0A

$1.49

38

NUT, CAP (8MM)

94021-08000-0S

$1.55

39

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

39

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

39

WASHER, PLAIN (6MM)

94101-06800

$1.49

40

WASHER, SPRING (4MM)

94111-04000

$1.49

41

SCREW, PAN (4X6) This part replaces 93500-04005-0A.

93500-04006-0A

$1.49

41

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

41

SCREW, PAN (4X6)

93500-04006-0A

$1.49

41

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

41

SCREW, PAN (4X6) This part replaces 99500-04005-0A.

93500-04006-0A

$1.49
