- CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045
CA175 REAR FENDER + TAILIGHT

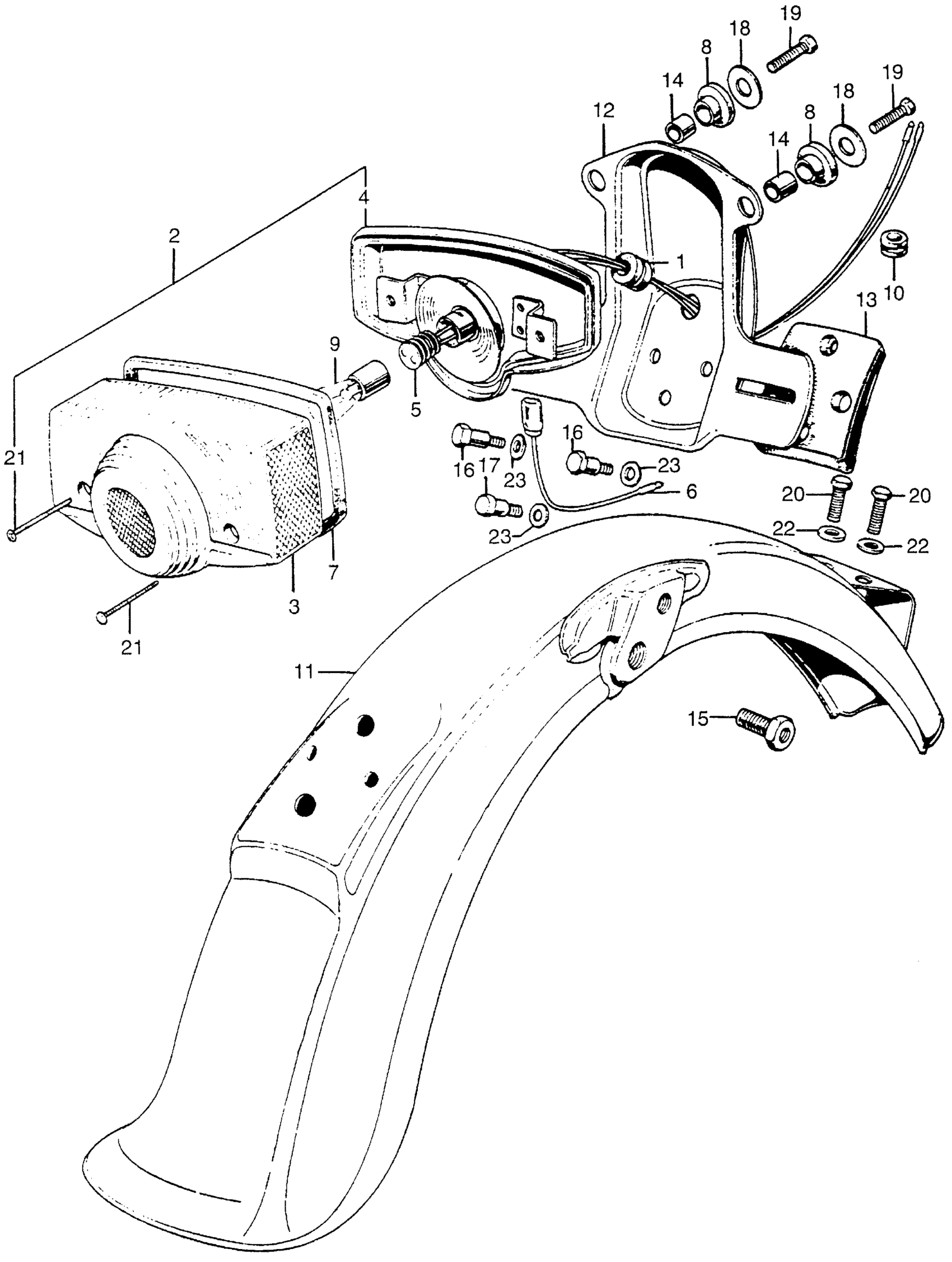

Honda CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045 CA175 REAR FENDER + TAILIGHT Diagram
#
Description
Price
1
GROMMET, RR. TURN SIGNAL CABLE (NOT AVAILABLE)
32983-230-000
Unavailable
2
TAILLIGHT ASSY. (NOT AVAILABLE)
33701-302-670
Unavailable
4
BASE, TAILLIGHT (NOT AVAILABLE)
33703-303-003
Unavailable
5
WIRE, TAILLIGHT
33707-303-000
Unavailable
6
CABLE, TAILLIGHT GROUND
33708-303-000
Unavailable
9
BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.
34906-202-670
$11.50
9
BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.
34906-202-670
$11.50
9
BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.
34906-202-670
$11.50
11
FENDER, RR. (NOT AVAILABLE)
80100-302-040Z
Unavailable
12
BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)
84701-302-671B
Unavailable
13
SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE)
84705-303-000
Unavailable
15
BOLT, RR. FENDER MOUNT (NOT AVAILABLE) This part replaces 90162-303-000.
90162-351-000
Unavailable
15
BOLT, RR. FENDER MOUNT (NOT AVAILABLE)
90162-351-000
Unavailable
16
BOLT B, NUMBER PLATE MOUNT (NOT AVAILABLE)
90163-303-000
Unavailable
17
BOLT A, NUMBER PLATE MOUNT (NOT AVAILABLE)
90164-303-000
Unavailable
19
BOLT, HEX. (5X20) This part replaces 92000-05020-0B.
92101-05020-0B
Unavailable
