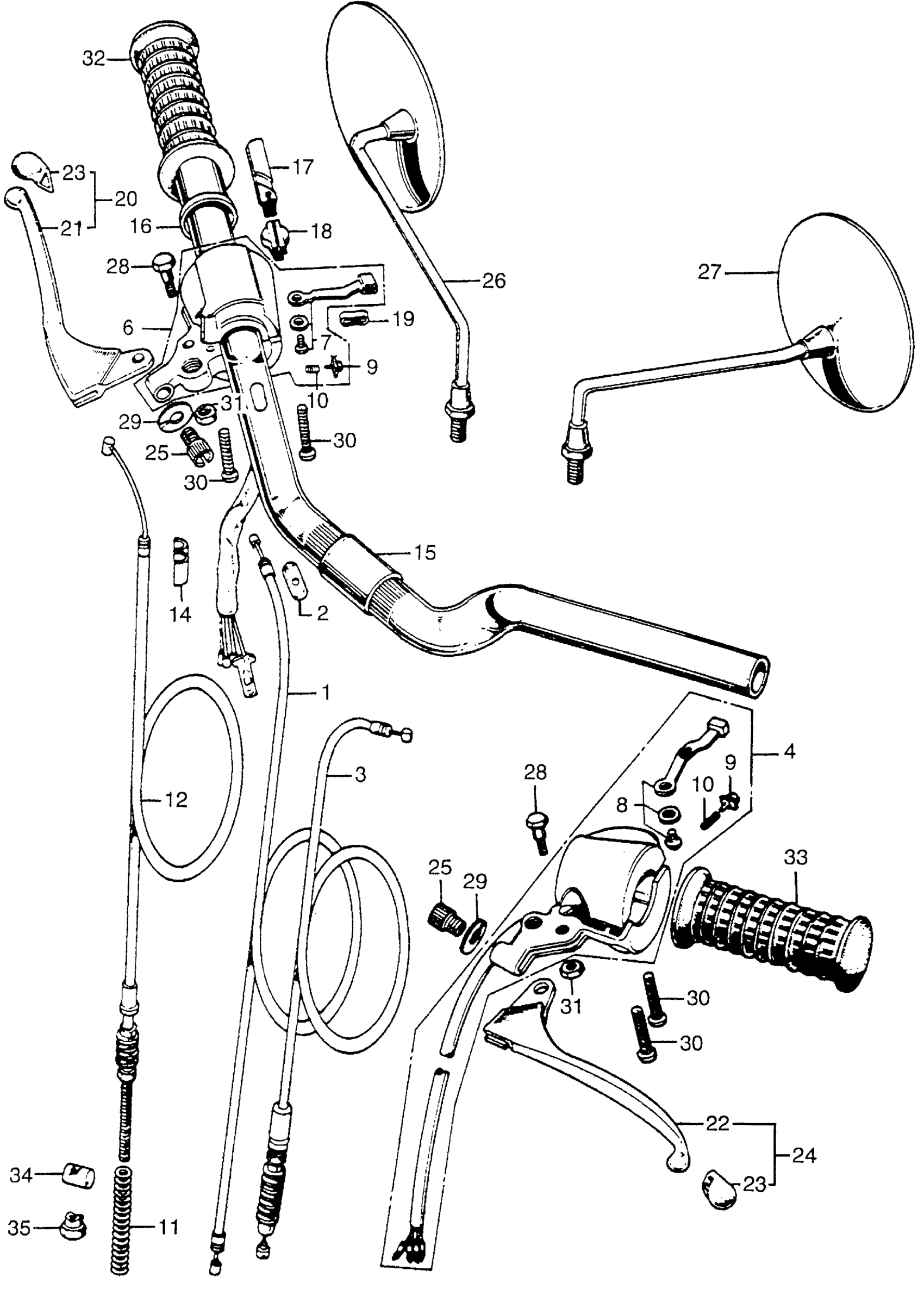

Honda CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045 CA175 HANDLEBAR + SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-212-000

Unavailable

1

CABLE, THROTTLE (NOT AVAILABLE) This part replaces 17910-302-000.

17910-212-000

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

CABLE, CLUTCH (NOT AVAILABLE)

22870-302-000

Unavailable

4

SWITCH ASSY., HORN/TURN SIGNAL (NOT AVAILABLE)

35250-230-043

Unavailable

6

SWITCH ASSY., STARTER LIGHTING

35300-237-671

Unavailable

7

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-230-000

Unavailable

8

KNOB, TURN SIGNAL SWITCH (NOT AVAILABLE)

35316-230-000

Unavailable

9

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-230-000

Unavailable

10

SPRING, HORN BUTTON SWITCH (NOT AVAILABLE)

35318-230-000

Unavailable

11

SPRING, FR. BRAKE ARM RETURN

45435-250-000

$4.61

12

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-237-671

Unavailable

14

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

15

HANDLEBAR (NOT AVAILABLE)

53100-303-000

Unavailable

16

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-271-000

Unavailable

17

HINGE, THROTTLE WIRE

53161-250-000

Unavailable

18

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)

53162-042-000

Unavailable

19

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE)

53163-271-000

Unavailable

20

LEVER, L. HANDLEBAR

53190-242-670

$38.03

23

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

23

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

23

CAP A, LEVER

95010-16001

$5.97

24

LEVER, L. HANDLEBAR

53190-242-670

$38.03

25

BOLT, CLUTCH CABLE ADJUSTING

53192-203-000

$9.10

26

MIRROR, R. (NOT AVAILABLE)

88110-230-000

Unavailable

27

MIRROR, L. (NOT AVAILABLE)

88120-230-810

Unavailable

28

SCREW, HANDLEBAR LEVER PIVOT

90114-028-000

$6.95

29

NUT, FIXING

90321-315-670

$7.31

29

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

30

SCREW, PAN (5X25)

93500-05025-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

GRIP C, R. HANDLE

95011-13100

$10.36

33

GRIP C, L. HANDLE

95011-13200

$10.36

34

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

34

JOINT A, BRAKE ARM

95015-31001

$1.53

35

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
