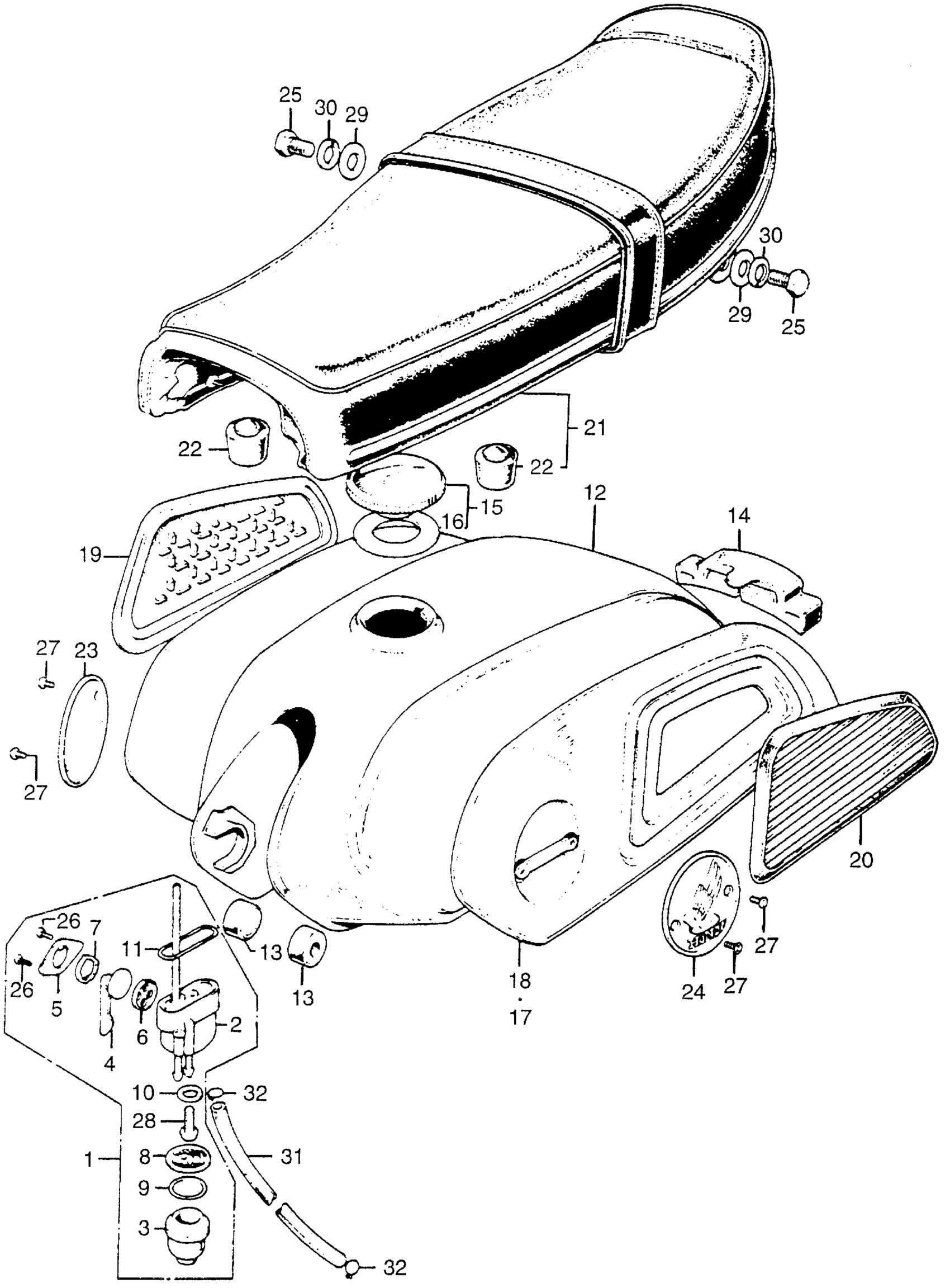

Honda CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045 CA175 FUEL TANK + SEAT Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-028-010.

16950-070-700

$41.57

1

PETCOCK ASSY. This part replaces 16950-028-015.

16950-070-700

$41.57

1

PETCOCK ASSY.

16950-070-700

$41.57

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-028-010

Unavailable

3

CUP, FUEL STRAINER

16952-028-000

Unavailable

4

LEVER, PETCOCK

16953-028-004

Unavailable

5

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

6

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

6

GASKET, VALVE

16957-ZE1-812

$3.08

7

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

7

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

8

SCREEN, FUEL STRAINER

16957-028-000

$16.22

9

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

9

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

9

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

9

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

10

GASKET, PETCOCK BODY

16993-011-000

Unavailable

11

O-RING (23.8X2.4)

16997-273-000

$4.53

12

TANK, FUEL (NOT AVAILABLE)

17500-303-010Z

Unavailable

13

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

14

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-246-000

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-259-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

16

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

16

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

16

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

17

COVER, R. FUEL TANK (NOT AVAILABLE)

17640-303-000

Unavailable

18

COVER, L. FUEL TANK

17650-303-000

Unavailable

19

RUBBER, R. KNEE GRIP (NOT AVAILABLE)

17661-246-020

Unavailable

20

RUBBER, L. KNEE GRIP (NOT AVAILABLE)

17662-246-020

Unavailable

21

SEAT *NH1L* (BLACK) (NOT AVAILABLE)

77200-302-000A

Unavailable

22

RUBBER A, SEAT SETTING

77204-286-020

$10.02

23

EMBLEM, R. FUEL TANK

87121-230-010

Unavailable

24

EMBLEM, L. FUEL TANK

87122-230-010

Unavailable

25

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

25

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

26

SCREW, PAN (3X5)

93500-03005-0A

$1.49

27

SCREW, PAN (3X6)

93500-03006-0A

$1.49

28

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

28

SCREW, PAN (6X28)

93500-06028-0A

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

TUBE (4.5) This part replaces 95001-45000.

95001-45000-40

Unavailable

31

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$36.67

31

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45120.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45130.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45150.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45190.

95001-45000-40

Unavailable

31

TUBE (4.5) This part replaces 95001-45210.

95001-45000-40

Unavailable

32

CLIP, TUBE (4.5)

95002-45000

$1.49
