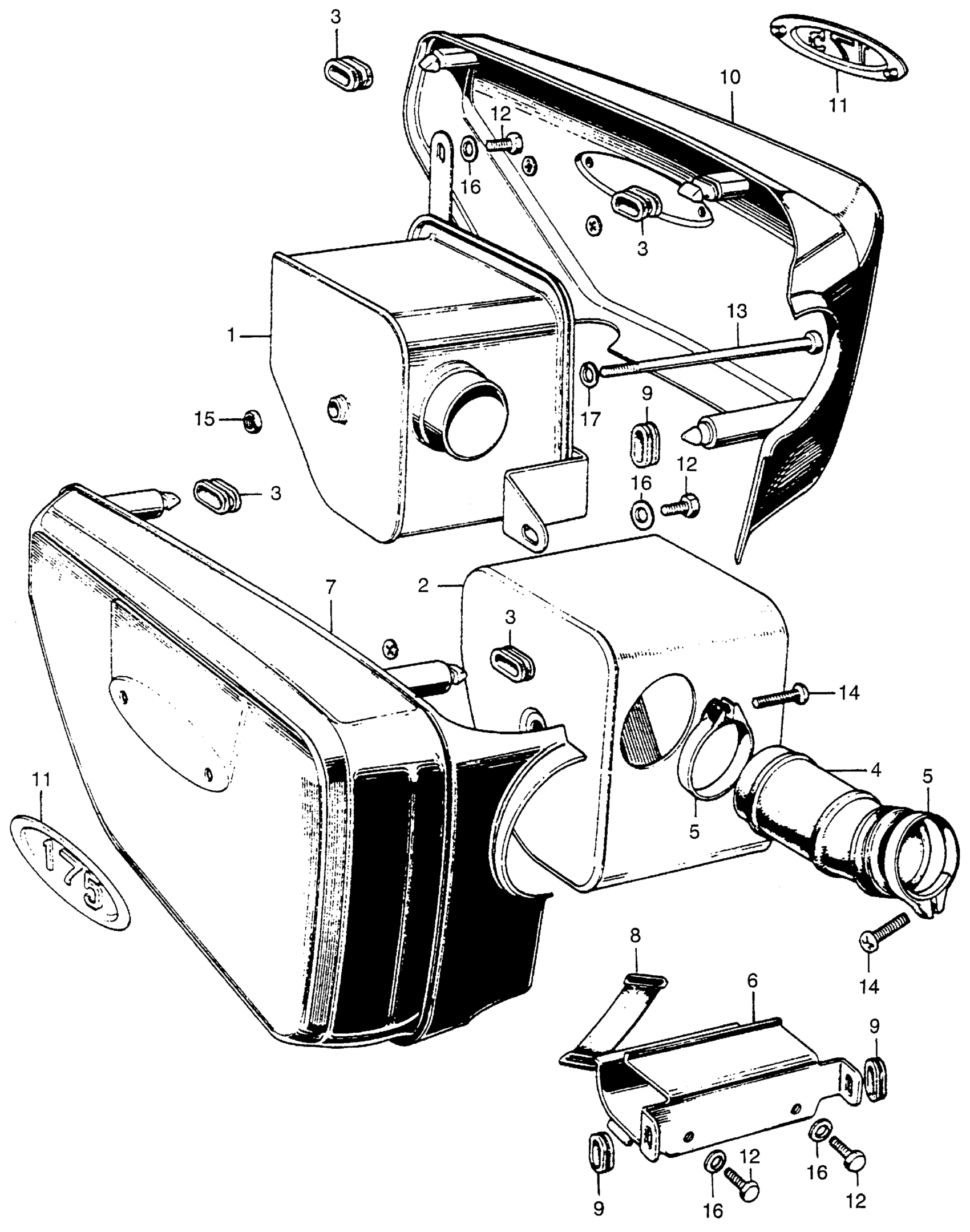

Honda CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045 CA175 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17211-302-000

Unavailable

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17212-302-000

Unavailable

3

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

4

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-302-030

Unavailable

5

BAND A, AIR CLEANER CONNECTING TUBE

17255-303-010

$6.81

6

BOX, TOOL (NOT AVAILABLE)

83500-303-010

Unavailable

7

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83540-303-040B

Unavailable

7

COVER, R. SIDE *R3C* (CANDY RED) (NOT AVAILABLE)

83540-303-040XJ

Unavailable

7

COVER, R. SIDE *PB1C* (CANDY BLUE) (NOT AVAILABLE)

83540-303-040XK

Unavailable

8

BAND, TOOL BOX (NOT AVAILABLE)

83545-216-620

Unavailable

9

GROMMET, AIR CLEANER HOUSING

83551-240-300

$3.24

10

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83640-303-050B

Unavailable

10

COVER, L. SIDE *R3C* (CANDY RED) (NOT AVAILABLE)

83640-303-050XJ

Unavailable

10

COVER, L. SIDE *PB1C* (CANDY BLUE) (NOT AVAILABLE)

83640-303-050XK

Unavailable

11

EMBLEM, AIR CLEANER HOUSING *NH1* (BLACK) (NOT AVAILABLE)

87125-249-670B

Unavailable

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

BOLT, HEX. (6X125) This part replaces 92000-06125.

92000-06125-0A

Unavailable

14

SCREW, PAN (4X26)

93500-04016-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49
