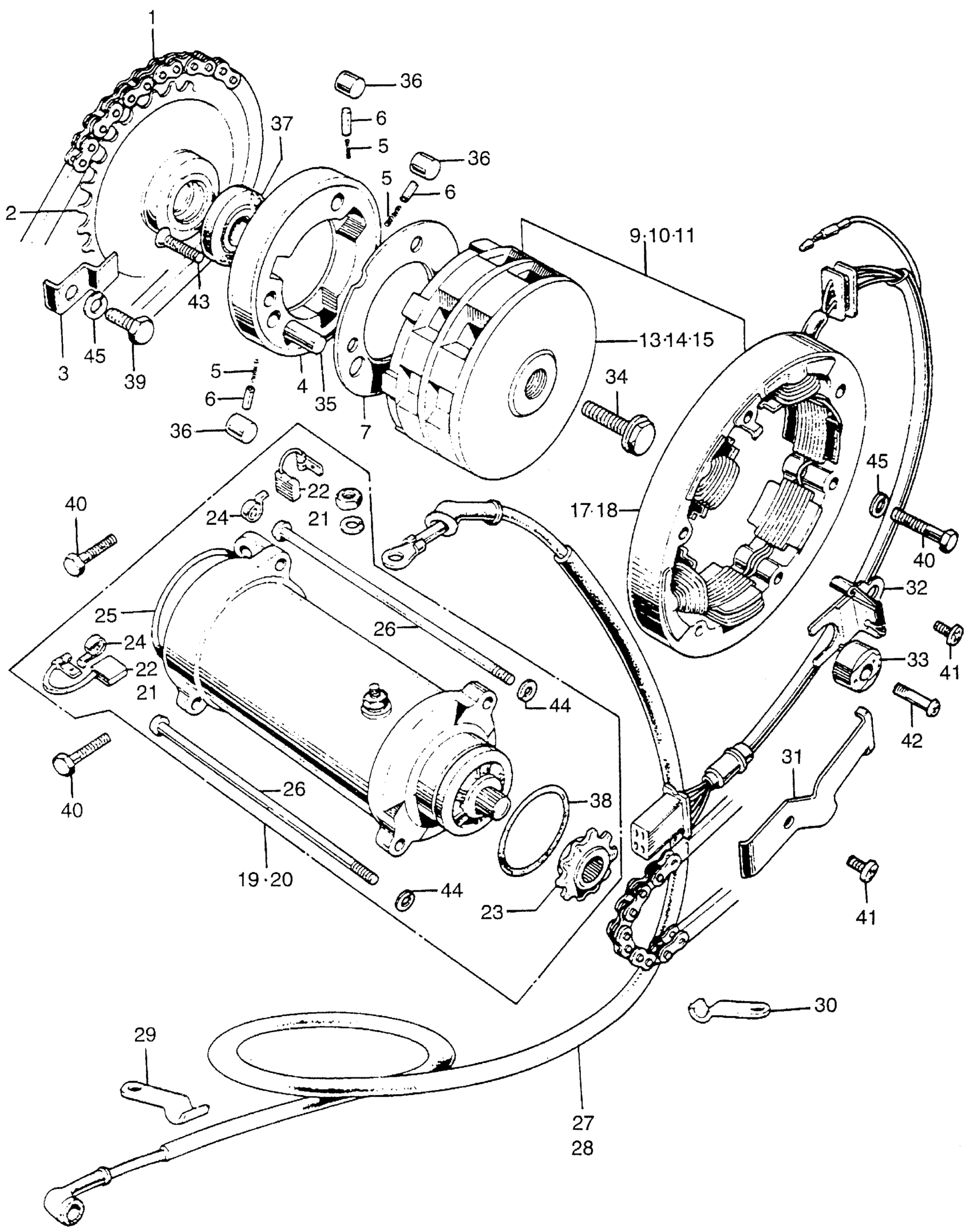

Honda CA175K3A MOTORCYCLE, JPN, VIN# CD175-2005045 ALTERNATOR + STARTER MOTOR Diagram

#

Description
Price

1

CHAIN, STARTER (DID219-54L) (DAIDO) This part replaces 28101-286-003.

28101-402-003

Unavailable

1

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

2

SPROCKET, STARTER (NOT AVAILABLE)

28110-216-000

Unavailable

3

PLATE, DRIVE SPROCKET SETTING (NOT AVAILABLE)

28117-302-010

Unavailable

4

CLUTCH, STARTER (OUTER)

28120-201-040

$87.06

5

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

6

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

7

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

9

ALTERNATOR ASSY. (6V)

31100-302-671

Unavailable

13

ROTOR (NOT AVAILABLE)

31101-302-671

Unavailable

17

STATOR (NOT AVAILABLE)

31102-302-671

Unavailable

19

MOTOR ASSY., STARTER (6V) (NOT AVAILABLE)

31200-303-158

Unavailable

22

BRUSH, STARTER MOTOR

31201-225-154

Unavailable

23

SPROCKET, STARTER MOTOR

31202-216-154

$50.41

24

SPRING, BRUSH

31204-230-174

$4.64

25

O-RING (61X2) This part replaces 31205-216-000.

91302-MA6-003

$5.17

25

O-RING (61X2) This part replaces 31205-216-004.

91302-MA6-003

$5.17

25

O-RING (61X2)

91302-MA6-003

$5.17

26

BOLT, GEAR COVER (NOT AVAILABLE)

31205-292-158

Unavailable

27

CABLE, STARTER MOTOR

32402-303-000

Unavailable

29

CLAMP A, MOTOR CABLE (NOT AVAILABLE)

32911-302-000

Unavailable

30

CLAMP B, MOTOR CABLE (NOT AVAILABLE)

32912-302-000

Unavailable

32

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-216-003

Unavailable

33

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-286-003

Unavailable

34

BOLT, ROTOR SETTING (NOT AVAILABLE)

90014-286-000

Unavailable

35

PIN, KNOCK (6X17.5)

90701-250-000

$2.70

35

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

36

ROLLER (10.2X9.5)

91101-253-020

$3.98

37

OIL SEAL (20X26X4) This part replaces 91205-216-000.

91205-216-003

Unavailable

37

OIL SEAL (20X26X4)

91205-216-003

Unavailable

38

O-RING

91309-MA6-000

$3.97

38

O-RING This part replaces 91309-283-000.

91309-MA6-000

$3.97

38

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.97

39

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

39

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

40

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

40

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

41

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

41

SCREW, PAN (6X12)

93500-06012-0A

$1.49

41

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

42

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

43

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

43

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

44

WASHER, SPRING (5MM)

94111-05000

$1.49

45

WASHER, SPRING (6MM)

94111-06000

$1.49
