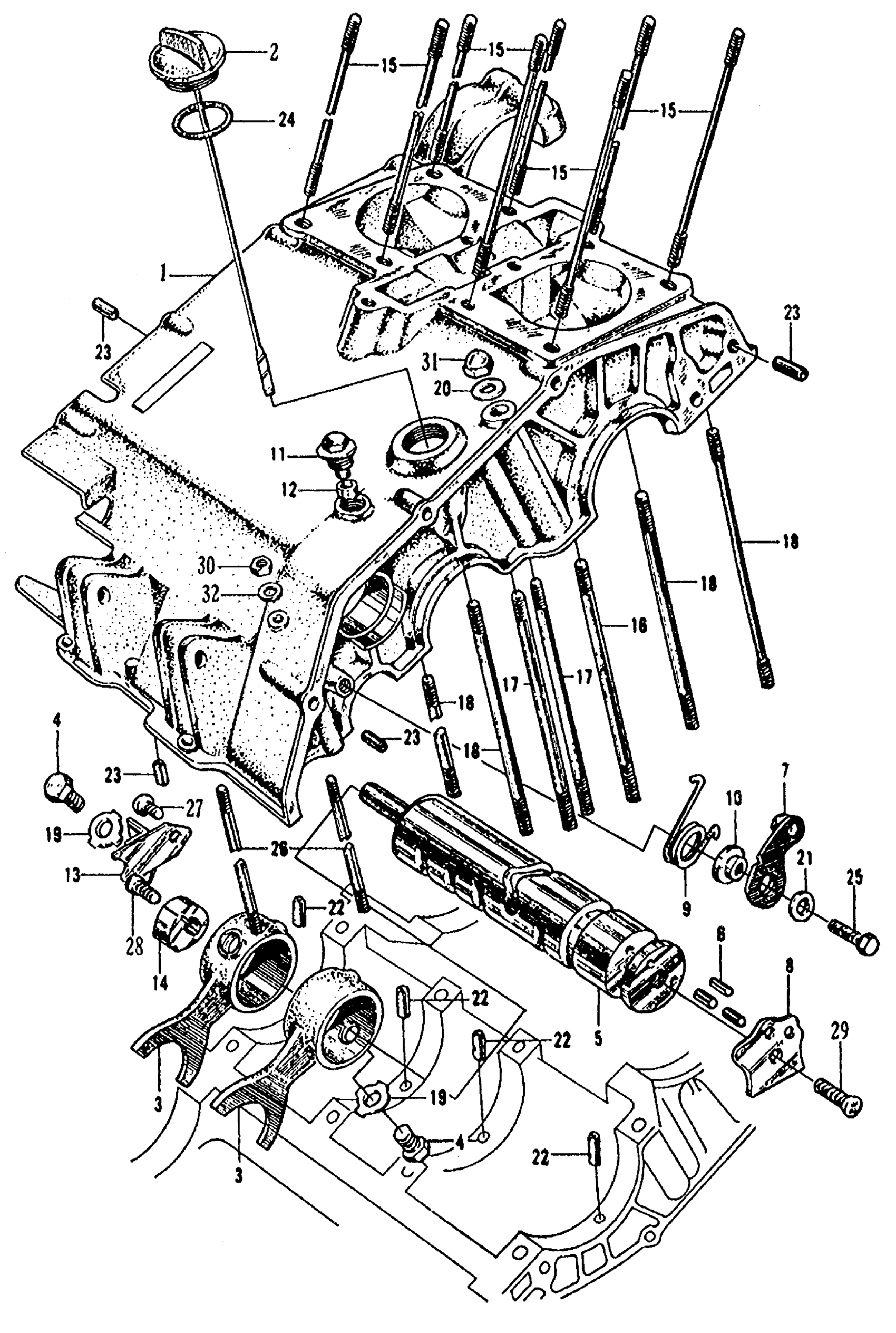

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 UPPER CRANKCASE + SHIFT DRUM Diagram

#

Description
Price

1

CRANKCASE (UPPER) (NOT AVAILABLE)

11101-216-000

Unavailable

2

DIPSTICK, OIL (NOT AVAILABLE)

15650-216-000

$13.98

3

FORK, GEARSHIFT (NOT AVAILABLE)

24211-216-000

Unavailable

4

PIN, SHIFT FORK GUIDE (NOT AVAILABLE)

24261-216-000

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-216-000

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24430-216-000

Unavailable

8

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE)

24434-216-000

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-216-000

Unavailable

10

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-216-000

Unavailable

11

SCREW, SHIFT DRUM GUIDE

24445-200-000

Unavailable

12

COLLAR, SHIFT DRUM GUIDE (NOT AVAILABLE)

24446-200-000

Unavailable

13

STATOR, NEUTRAL SWITCH (NOT AVAILABLE) This part replaces 35752-216-000.

35752-216-003

Unavailable

13

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-216-003

Unavailable

14

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-286-003

Unavailable

15

BOLT, CYLINDER STUD

90031-216-000

Unavailable

15

BOLT, CYLINDER STUD (NOT AVAILABLE)

90031-225-000

Unavailable

16

BOLT, STUD (8X152) (NOT AVAILABLE)

90061-216-000

Unavailable

17

BOLT, STUD (8X132) (NOT AVAILABLE)

90062-216-000

Unavailable

18

BOLT, STUD (8X111) (NOT AVAILABLE)

90063-200-010

Unavailable

19

WASHER, SHIFT FORK LOCKING (NOT AVAILABLE)

90416-202-000

Unavailable

20

WASHER, SEAL (8MM) This part replaces 90441-216-000.

90441-286-000

$1.90

20

WASHER, SEALING (8MM)

90441-286-000

$1.90

21

WASHER (6MM) (NOT AVAILABLE)

90453-216-000

Unavailable

22

PIN, KNOCK (6X12.5) (NOT AVAILABLE)

90701-222-000

Unavailable

23

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

23

PIN A, DOWEL (10X14)

94301-10140

$2.28

24

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

24

O-RING (27.5X2.6)

91302-001-710

$2.99

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

BOLT, STUD (6X100) This part replaces 92700-06101.

92700-06100

Unavailable

27

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

27

SCREW, PAN (6X12)

93500-06012-0A

$1.49

27

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

28

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

28

SCREW, PAN (6X20)

93500-06020-0A

$1.49

29

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

29

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.55

31

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.55

31

NUT, CAP (8MM)

94021-08000-0S

$1.55

31

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49
