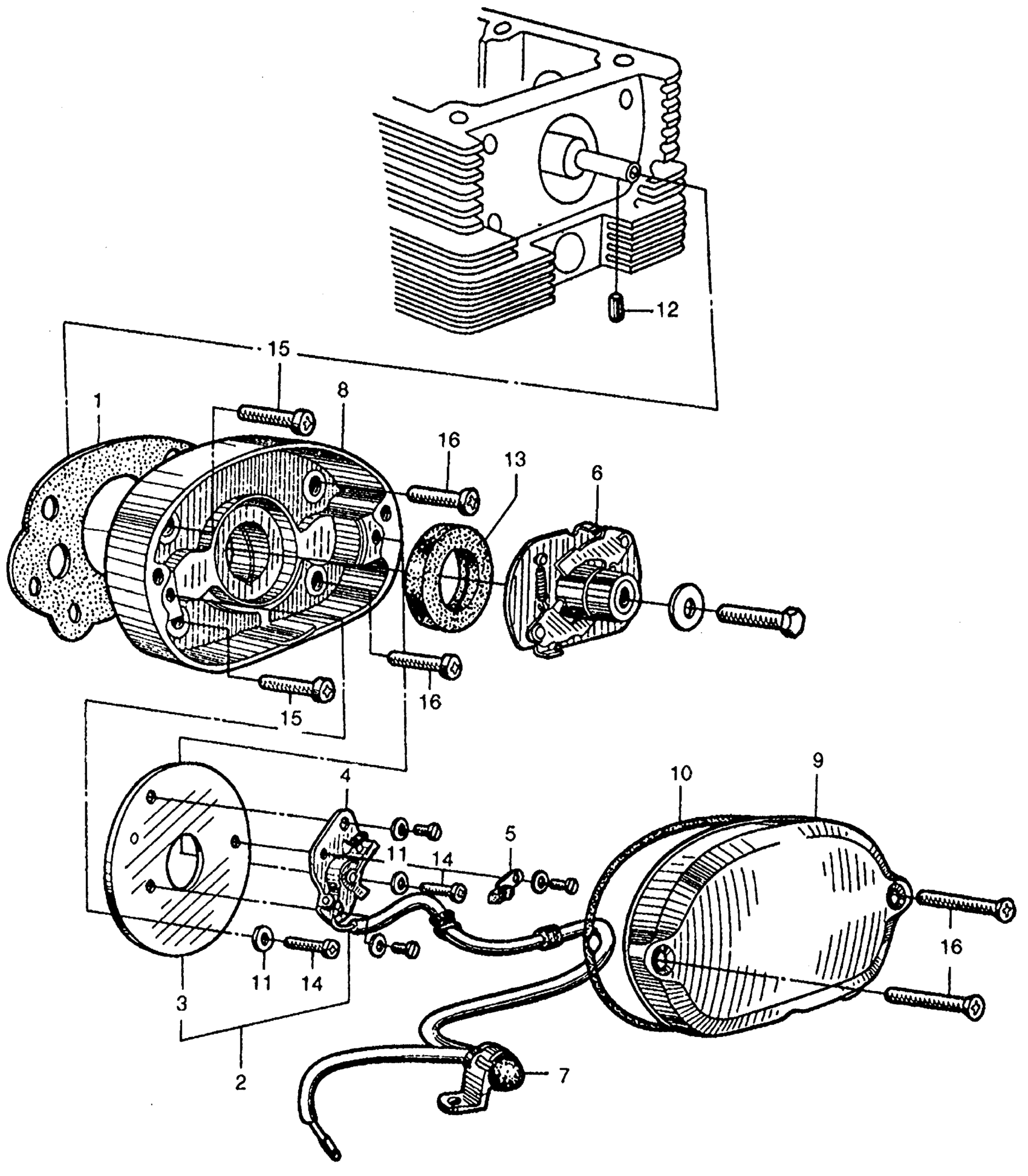

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 POINTS + SPARK ADVANCER Diagram

#

Description
Price

1

GASKET, R. CYLINDER HEAD COVER This part replaces 12394-216-000.

12394-216-306

Unavailable

2

POINTS ASSY. (TOYO) (NOT AVAILABLE) This part replaces 30200-216-000.

30200-235-154

Unavailable

2

POINTS ASSY. (TOYO) (NOT AVAILABLE) This part replaces 30200-235-015.

30200-235-154

Unavailable

2

POINTS ASSY. (TOYO) (NOT AVAILABLE)

30200-235-154

Unavailable

2

POINTS ASSY. (TOYO) (NOT AVAILABLE) This part replaces 30201-235-013.

30200-235-154

Unavailable

3

PLATE, POINT BASE (NOT AVAILABLE)

30201-216-003

Unavailable

3

PLATE, POINTS BASE (DENSO) This part replaces 30201-216-004.

30201-107-004

Unavailable

3

PLATE, POINT BASE (NOT AVAILABLE)

30201-216-005

Unavailable

4

POINTS (DENSO)

30202-107-004

$43.04

4

POINTS (TOYO)

30202-107-154

$27.89

4

POINTS, L. (KOKUSAN) This part replaces 30202-216-003.

30204-292-003

$37.41

4

POINTS (DENSO) This part replaces 30202-216-004.

30202-107-004

$43.04

4

POINTS (HITACHI) (NOT AVAILABLE)

30202-216-005

Unavailable

4

POINTS, L. (KOKUSAN) This part replaces 30204-283-003.

30204-292-003

$37.41

4

POINTS, L. (KOKUSAN)

30204-292-003

$37.41

4

POINTS, L. (KOKUSAN) This part replaces 30204-292-154.

30204-292-003

$37.41

5

FELT, OIL (NOT AVAILABLE)

30205-216-003

Unavailable

5

FELT, OIL (DENSO) (NOT AVAILABLE)

30205-216-004

Unavailable

5

FELT, OIL (HITACHI) (NOT AVAILABLE)

30205-216-005

Unavailable

6

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-216-000

Unavailable

7

CONDENSER (NOT AVAILABLE)

30280-216-000

Unavailable

8

BASE, POINTS (NOT AVAILABLE) This part replaces 30361-216-000.

30361-235-000

Unavailable

8

BASE, POINTS (NOT AVAILABLE)

30361-235-000

Unavailable

9

COVER, POINTS (NOT AVAILABLE)

30370-216-000

Unavailable

10

GASKET, POINTS COVER This part replaces 30391-216-000.

30391-216-306

Unavailable

11

WASHER, POINTS LOCK (NOT AVAILABLE)

30903-216-000

Unavailable

12

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

13

OIL SEAL (20X35X5.5) (ARAI) This part replaces 91204-216-000.

91204-216-003

$6.31

13

OIL SEAL (20X35X5.5) (ARAI)

91204-216-003

$6.31

14

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

14

SCREW, PAN (5X12)

93500-05012-0A

$1.49

15

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

15

SCREW, PAN (6X18)

93500-06018-0A

$1.49

16

SCREW, OVAL (5X25) (NOT AVAILABLE) This part replaces 93700-05025.

93700-05025-02

Unavailable

16

SCREW, OVAL (5X25) (NOT AVAILABLE)

93700-05025-02

Unavailable
