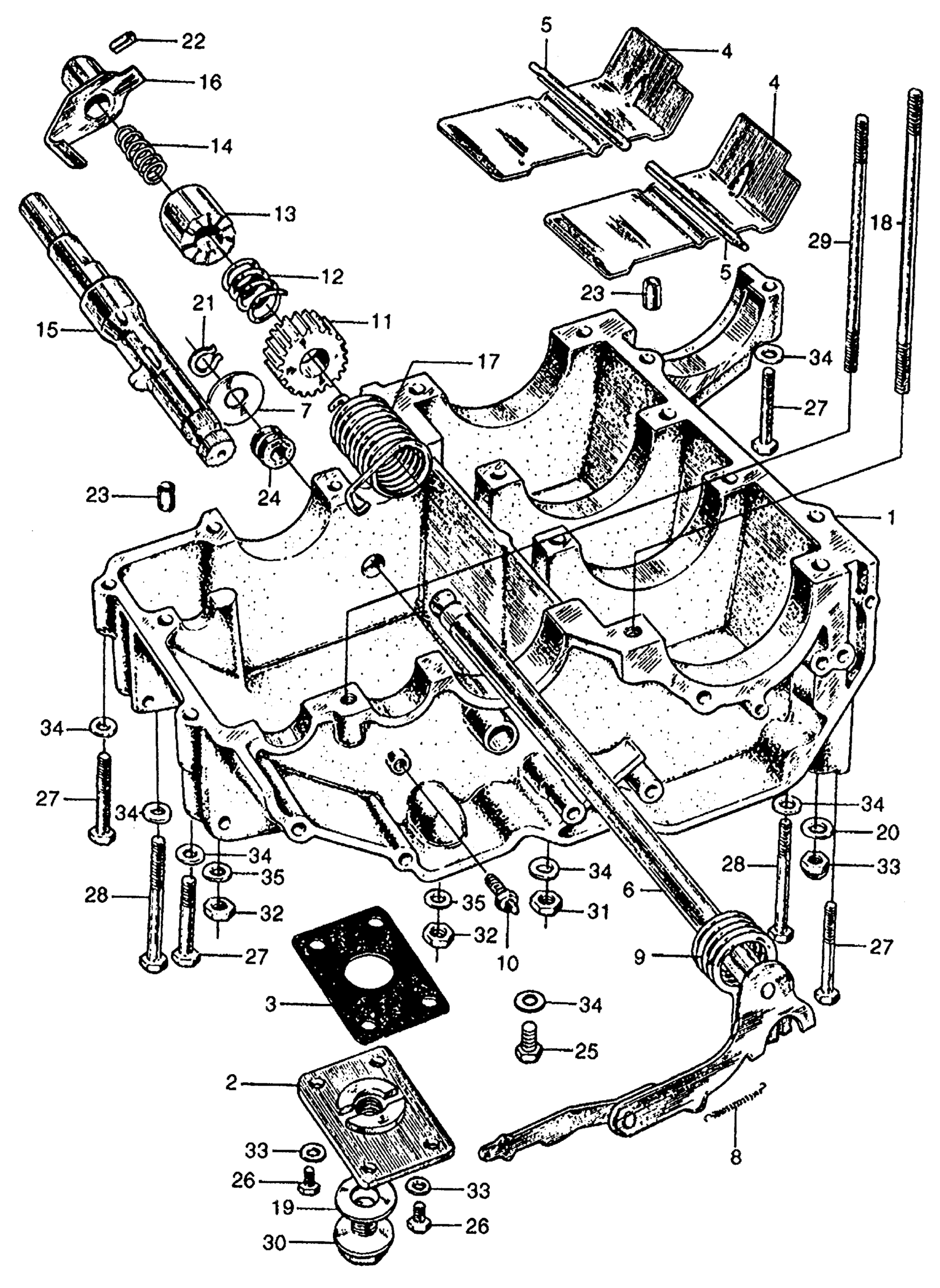

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 LOWER CRANKCASE + KICK STARTER Diagram

#

Description
Price

NI

WASHER, THRUST (20MM) (NOT AVAILABLE)

90451-216-000

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-216-010

Unavailable

2

COVER, CRANKCASE (LOWER) (NOT AVAILABLE)

11311-216-010

$28.97

3

GASKET, COVER (LOWER) (NOT AVAILABLE) | Use from Engine SN 9004205

11396-216-010

Unavailable

4

SEPARATOR, OIL (NOT AVAILABLE)

11751-216-000

Unavailable

5

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11781-216-000

Unavailable

6

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-216-000

Unavailable

7

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

8

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

9

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-216-000

Unavailable

10

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

11

PINION, KICK STARTER (18T) (NOT AVAILABLE) | Use up to Engine SN 1091210

28211-216-000

Unavailable

12

SPRING, STARTER PINION SETTING

28215-216-000

Unavailable

13

RATCHET, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1091210

28221-216-000

Unavailable

14

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-216-000

Unavailable

15

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-216-000

$106.90

16

BUSHING, KICK STARTER SPINDLE (NOT AVAILABLE)

28258-216-000

Unavailable

17

SPRING, KICK STARTER (NOT AVAILABLE)

28281-216-000

Unavailable

18

BOLT, STUD (8X119) (NOT AVAILABLE)

90063-216-000

Unavailable

19

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

19

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

19

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

20

WASHER, SEAL (8MM) This part replaces 90441-216-000.

90441-286-000

$1.90

20

WASHER, SEALING (8MM)

90441-286-000

$1.90

21

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

22

PIN, KNOCK (4X15) (NOT AVAILABLE)

90701-216-000

Unavailable

23

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

23

PIN A, DOWEL (10X14)

94301-10140

$2.28

24

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

24

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

24

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

24

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

24

OIL SEAL (12X25X4.5) This part replaces 91204-200-000.

91202-426-003

$5.57

25

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

26

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

26

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

26

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

26

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

27

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

27

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

27

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

28

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

29

BOLT, STUD (6X100) This part replaces 92700-06101.

92700-06100

Unavailable

30

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

32

NUT, HEX. (8MM)

94030-08000

$1.49

32

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

33

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.55

33

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.55

33

NUT, CAP (8MM)

94021-08000-0S

$1.55

33

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49
