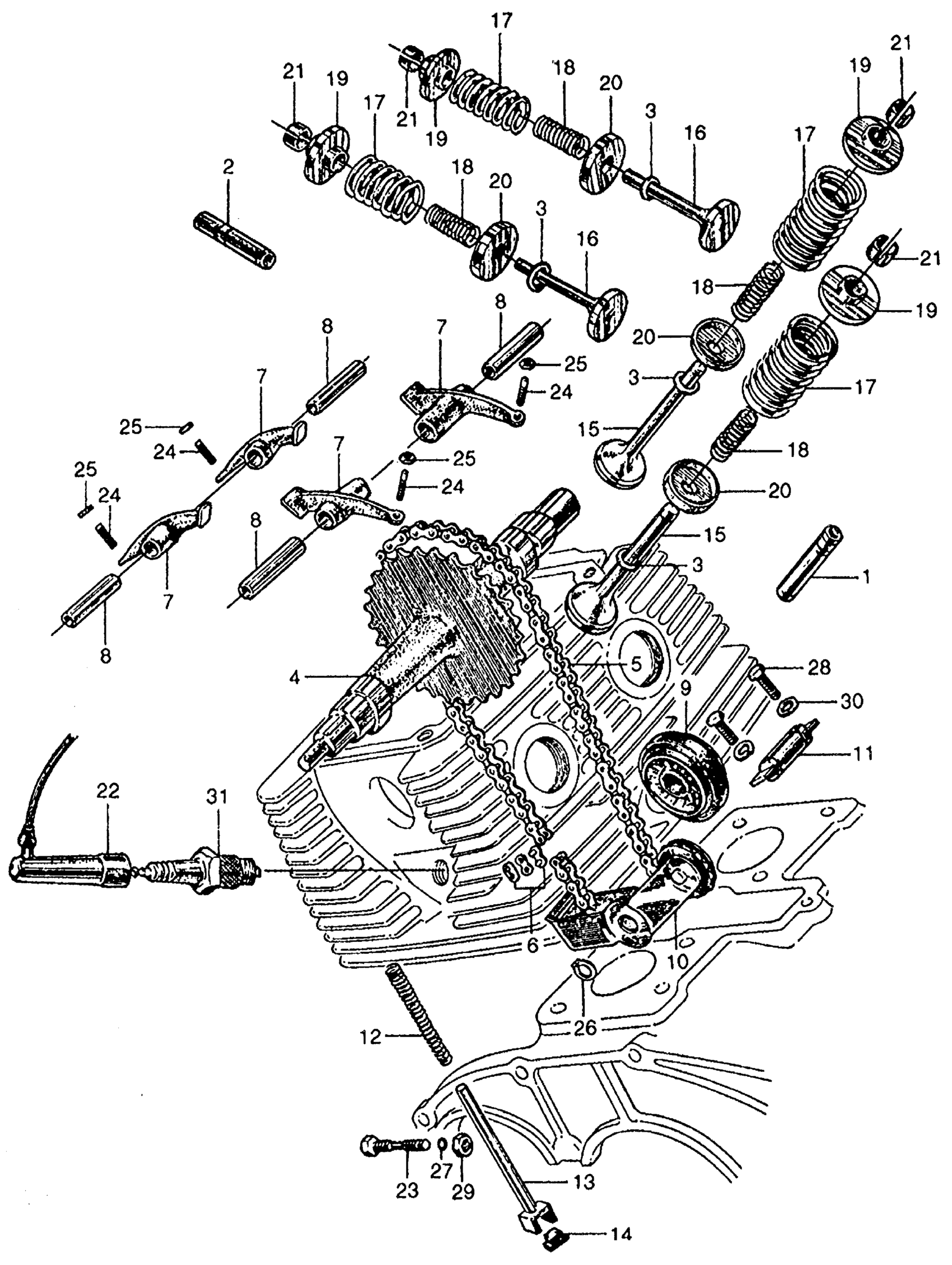

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 CAMSHAFT + VALVE + CAM CHAIN Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-216-000

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-216-000

Unavailable

3

CLIP, VALVE GUIDE (NOT AVAILABLE)

12253-200-300

Unavailable

4

CAMSHAFT (30T) (NOT AVAILABLE)

14100-216-010

Unavailable

5

CHAIN, CAM (DK219H-82L) (NOT AVAILABLE) This part replaces 14410-216-003.

14410-235-003

Unavailable

6

JOINT, CAM CHAIN (NOT AVAILABLE)

14411-216-000

Unavailable

7

ARM, VALVE ROCKER This part replaces 14431-216-000.

14431-216-010

Unavailable

7

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-216-010

Unavailable

8

SHAFT, ROCKER ARM (NOT AVAILABLE) | Use from Engine SN 9005600

14451-216-010

Unavailable

9

TENSIONER ASSY., CAM CHAIN (NOT AVAILABLE)

14500-216-000

Unavailable

9

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE) This part replaces 14610-200-000.

14610-235-000

Unavailable

9

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE)

14610-235-000

Unavailable

10

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14501-216-000

Unavailable

11

PIN, CAM CHAIN GUIDE ROLLER

14503-216-000

Unavailable

12

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-216-000

Unavailable

13

BAR, TENSIONER (NOT AVAILABLE)

14550-216-020

Unavailable

14

RUBBER, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14556-216-020

Unavailable

15

VALVE, IN. (NOT AVAILABLE) | Use from Engine SN 1021674

14711-216-020

Unavailable

16

VALVE, EX. | Use from Engine SN 1021674

14721-216-020

Unavailable

17

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-216-000

Unavailable

18

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-216-000

Unavailable

19

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-216-000

$7.58

20

SEAT, VALVE SPRING

14775-216-000

Unavailable

21

COTTER, VALVE | Use from Engine SN 1021674

14781-235-000

$2.84

22

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

22

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

22

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

23

BOLT, TENSIONER SET (NOT AVAILABLE) | Use from Engine SN 9004208

90009-216-020

Unavailable

24

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

24

SCREW, TAPPET ADJ. This part replaces 90012-216-000.

90012-333-000

$2.75

24

SCREW, TAPPET ADJUSTING

90012-333-000

$2.75

25

NUT, TAPPET ADJUSTING

90206-001-000

$1.66

26

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

27

O-RING (3.4X1.2) (NOT AVAILABLE) | Use from Engine SN 9004208

91303-216-000

Unavailable

28

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

28

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

28

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

28

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

WASHER, SPRING (6MM)

94111-06000

$1.49

31

SPARK PLUG (D10HS) (NGK) (NOT AVAILABLE) This part replaces 98066-60710.

98066-60714

Unavailable

31

SPARK PLUG (D10HS) (NGK) (NOT AVAILABLE)

98066-60714

Unavailable
