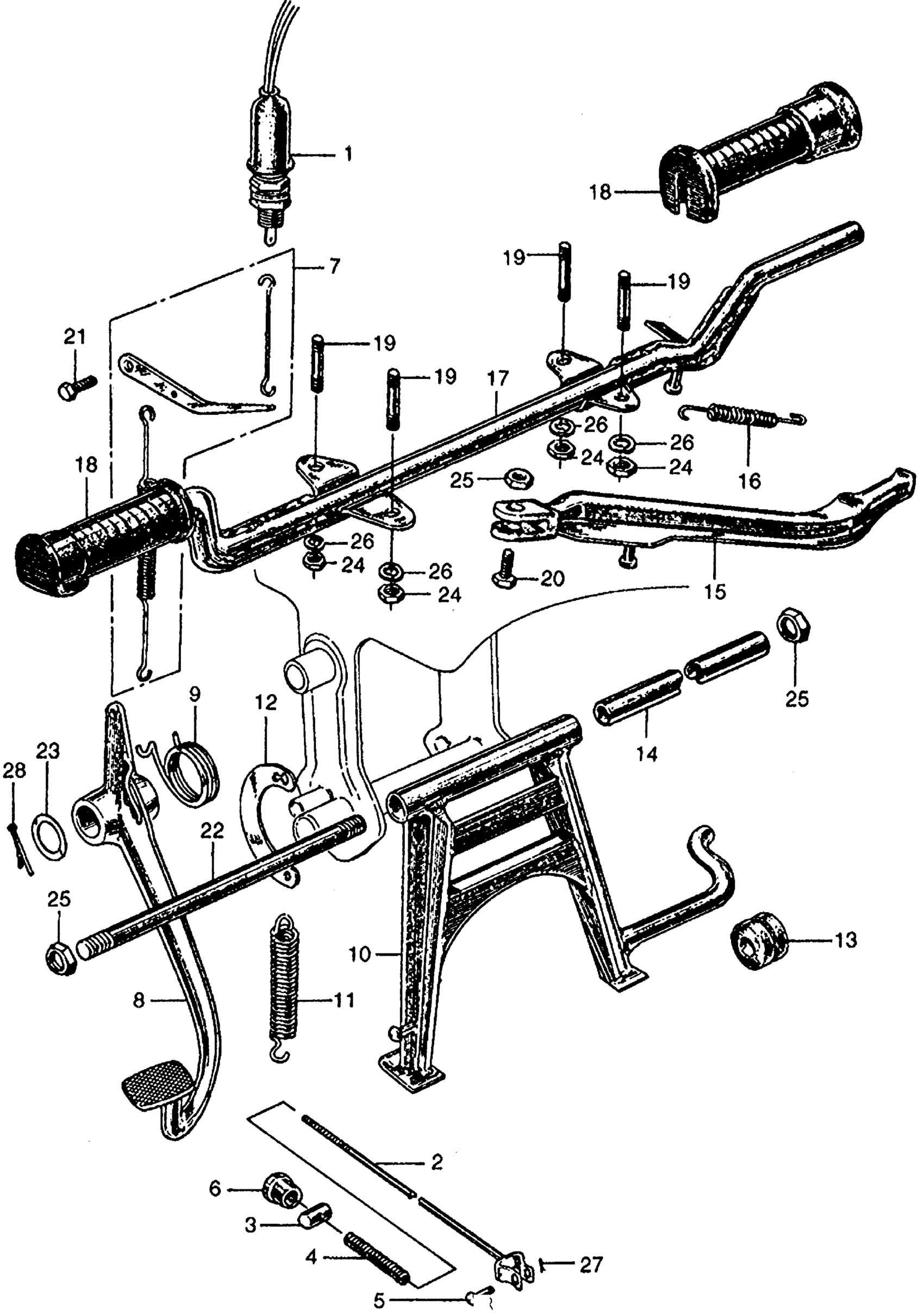

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 CA160 STAND + STEP Diagram

#

Description
Price

1

SWITCH ASSY., STOP LAMP (NOT AVAILABLE)

35351-259-000

Unavailable

2

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43450-200-000.

43451-235-000

Unavailable

2

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-230-000.

43451-235-000

Unavailable

2

ROD, RR. BRAKE (NOT AVAILABLE)

43451-235-000

Unavailable

3

JOINT B, BRAKE ARM This part replaces 43453-250-000.

95015-32001

$1.49

3

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

3

JOINT B, BRAKE ARM

95015-32001

$1.49

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

PIN A, BRAKE ROD JOINT This part replaces 43472-250-000.

95015-51000

Unavailable

5

PIN A, BRAKE ROD JOINT

95015-51000

Unavailable

6

NUT B, BRAKE ROD ADJUSTING This part replaces 43486-250-000.

95015-42000

$1.83

6

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

7

ARM ASSY., STOP LIGHT SWITCH

43510-200-000

Unavailable

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-225-000

Unavailable

9

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-200-000

Unavailable

10

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-201-010B

Unavailable

11

SPRING, MAIN STAND (NOT AVAILABLE)

50522-200-000

Unavailable

12

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-200-000

Unavailable

13

RUBBER, MAIN STAND STOPPER (NOT AVAILABLE) This part replaces 50524-200-010.

50524-212-000

Unavailable

13

RUBBER, MAIN STAND STOPPER (NOT AVAILABLE)

50524-212-000

Unavailable

14

COLLAR, MAIN STAND DISTANCE (NOT AVAILABLE)

50525-200-000

Unavailable

15

BAR, SIDE STAND (NOT AVAILABLE)

50530-225-000

Unavailable

16

SPRING, SIDE STAND This part replaces 50542-200-000.

95014-72204

$3.01

16

SPRING, SIDE STAND This part replaces 95014-72200.

95014-72204

$3.01

16

SPRING, SIDE STAND This part replaces 95014-72201.

95014-72204

$3.01

16

SPRING, SIDE STAND This part replaces 95014-72203.

95014-72204

$3.01

16

SPRING B, SIDE STAND

95014-72204

$3.01

17

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-225-000B

Unavailable

18

RUBBER, STEP (NOT AVAILABLE) This part replaces 50661-200-000.

50661-204-000

Unavailable

18

RUBBER, STEP (NOT AVAILABLE)

50661-204-000

Unavailable

19

STUD (8X36) (NOT AVAILABLE)

90064-250-000

Unavailable

20

BOLT, SIDE STAND PIVOT (NOT AVAILABLE)

90108-200-000

Unavailable

21

SCREW, STOP SWITCH ARM PIVOT (NOT AVAILABLE)

90128-200-000

Unavailable

22

BOLT, MAIN STAND ANCHOR (NOT AVAILABLE)

90151-225-000

Unavailable

23

WASHER (21.5MM) (NOT AVAILABLE)

90522-200-000

Unavailable

24

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

25

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

25

NUT, HEX. (10MM)

94002-10000-0S

$4.06

25

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

PIN, SPLIT (2.0X15)

94201-20150

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

28

PIN, SPLIT (3.0X45)

94201-30450

$1.49
