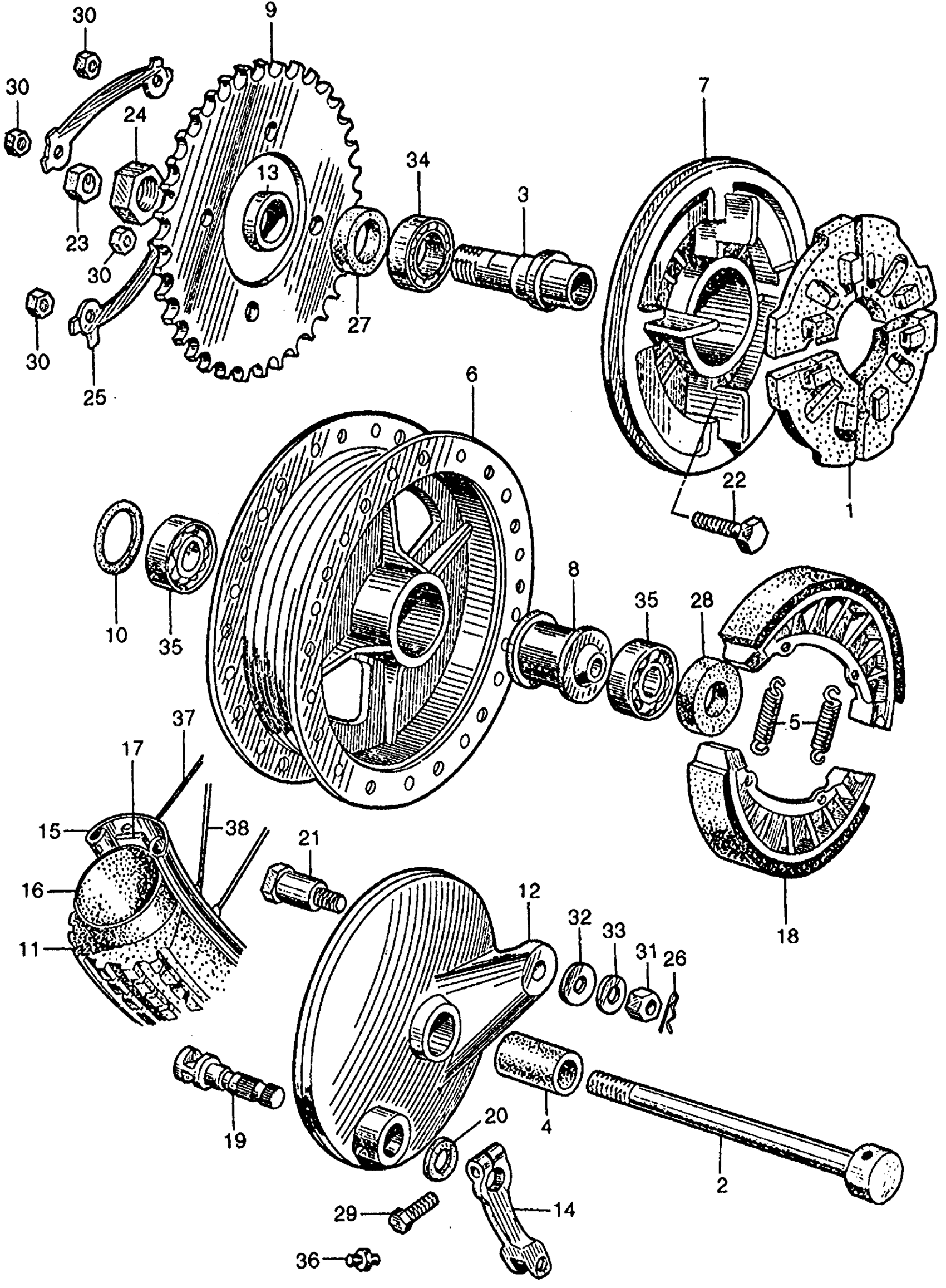

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 CA160 REAR WHEEL Diagram

#

Description
Price

1

DAMPER, WHEEL This part replaces 41241-202-000.

41241-200-000

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-202-000

Unavailable

3

SLEEVE, RR. AXLE (NOT AVAILABLE)

42303-202-000

Unavailable

4

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-202-010

Unavailable

5

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-250-000

Unavailable

6

HUB, RR. WHEEL (NOT AVAILABLE)

42601-202-000

Unavailable

7

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-200-000

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-200-000

Unavailable

9

SPROCKET, FINAL DRIVEN (37T) (NOT AVAILABLE)

42631-225-000

Unavailable

10

O-RING (39.5MM) (NOT AVAILABLE)

42653-200-000

Unavailable

11

TIRE, RR. WHEEL (3.00-16) (NITTO) (NOT AVAILABLE) This part replaces 42711-219-010.

42711-230-000

Unavailable

11

TIRE, RR. WHEEL (3.00-16) (NITTO) (NOT AVAILABLE)

42711-230-000

Unavailable

12

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-202-000

Unavailable

13

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE)

42304-212-000

Unavailable

14

ARM, RR. BRAKE (NOT AVAILABLE)

43411-200-000

$37.25

15

RIM, WHEEL (NOT AVAILABLE)

44701-202-010

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 0Y400-41900.

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 08400-41900.

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 42712-167-003.

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC)

42712-167-005

Unavailable

16

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 44712-200-000.

42712-167-005

Unavailable

17

FLAP, TIRE (17) (IRC)

42713-102-005

$6.54

17

FLAP, TIRE (17) (INOUE) This part replaces 44713-200-000.

42713-102-005

$6.54

18

SHOE, BRAKE (NOT AVAILABLE)

45120-200-000

Unavailable

19

CAM, RR. BRAKE (NOT AVAILABLE)

43141-200-010

Unavailable

20

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

21

BOLT, RR. BRAKE TORQUE (NOT AVAILABLE)

90127-200-000

Unavailable

22

SCREW, STOP SWITCH ARM PIVOT (NOT AVAILABLE)

90128-200-000

Unavailable

22

SCREW, STOP SWITCH ARM PIVOT (NOT AVAILABLE) This part replaces 90157-200-000.

90128-200-000

Unavailable

23

NUT, AXLE (NOT AVAILABLE)

90305-200-000

Unavailable

24

NUT, RR. AXLE SLEEVE

90307-200-000

Unavailable

25

*94109-12000 This part replaces 90523-200-000.

94108-12000

Unavailable

26

CLIP, LATCH (10MM) (NOT AVAILABLE) This part replaces 90652-200-000.

90652-253-000

Unavailable

26

CLIP, LATCH (10MM) (NOT AVAILABLE)

90652-253-000

Unavailable

27

OIL SEAL (30X47X8) (NOT AVAILABLE)

91253-212-000

Unavailable

28

OIL SEAL (22X35X8) (NOT AVAILABLE)

91254-200-000

Unavailable

29

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

29

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

30

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

30

NUT, HEX. (8MM)

94030-08000

$1.49

30

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

31

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

31

NUT, HEX. (10MM)

94002-10000-0S

$4.06

31

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

32

WASHER, PLAIN (10MM)

94101-10000

$1.49

33

WASHER, SPRING (12MM)

94111-12000

$1.49

34

BEARING, RADIAL BALL (6005) This part replaces 96100-60050.

96100-60050-00

$11.25

34

BEARING, RADIAL BALL (6005)

96100-60050-00

$11.25

35

BEARING, RADIAL BALL (6202) This part replaces 96100-62020.

96100-62020-00

$9.18

35

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

36

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

36

FITTING, GREASE (A.45)

96201-30001

$1.49

37

SPOKE A, RR. (NOT AVAILABLE)

97506-52110-11

Unavailable

38

SPOKE B, RR.

97799-52109-11

Unavailable
