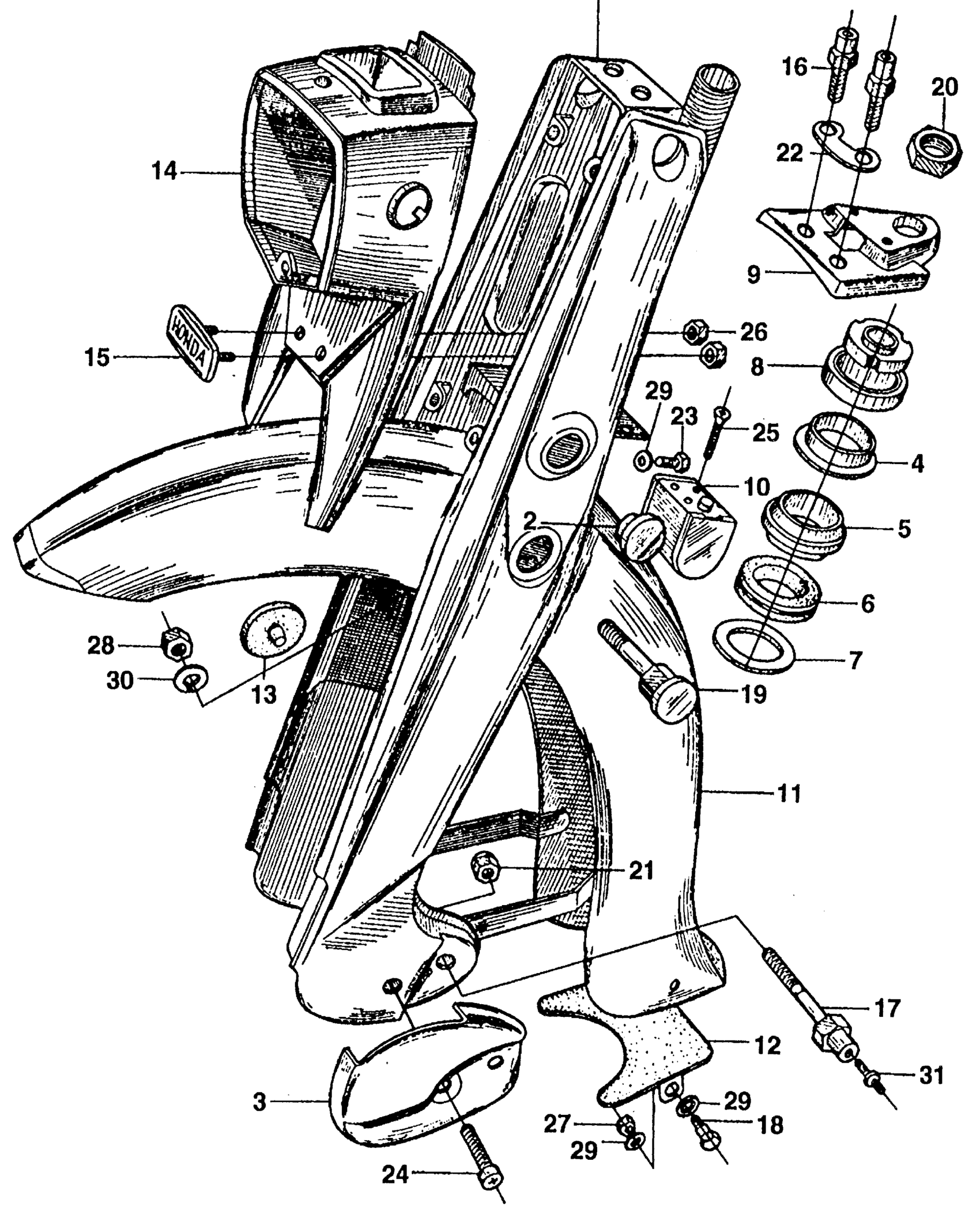

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 CA160 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

FORK, FR. (NOT AVAILABLE)

51100-202-030Z

Unavailable

2

CAP, FR. FORK SIDE (NOT AVAILABLE)

51241-205-000

Unavailable

3

COVER, R. FR. FORK (LOWER)

51611-200-000

Unavailable

3

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE)

51612-200-000

Unavailable

4

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

5

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

6

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

7

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

8

THREAD, STEERING HEAD (UPPER) (NOT AVAILABLE)

53220-205-000

Unavailable

9

PLATE, FORK TOP BRIDGE (NOT AVAILABLE)

53231-203-010Z

Unavailable

10

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

10

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

11

FENDER, FR. (NOT AVAILABLE)

61100-200-000Z

Unavailable

12

SPLASH GUARD, FR. (NOT AVAILABLE)

61114-200-000

Unavailable

13

RUBBER, FR. FENDER (NOT AVAILABLE)

61122-200-000

Unavailable

14

CASE, HEADLIGHT (NOT AVAILABLE)

61301-215-000Z

Unavailable

15

EMBLEM, LIGHT CASE (NOT AVAILABLE)

87101-212-000

Unavailable

16

BOLT, HANDLEBAR HOLDER SETTING (NOT AVAILABLE)

90117-203-000

Unavailable

17

BOLT, FR. ARM PIVOT (NOT AVAILABLE)

90125-200-010

Unavailable

18

BOLT, FR. SPLASH GUARD SETTING (NOT AVAILABLE)

90143-202-000

Unavailable

19

BOLT, FR. SHOCK (UPPER) (NOT AVAILABLE)

90147-205-010

Unavailable

20

NUT, STEERING HEAD STEM (NOT AVAILABLE)

90304-200-000

Unavailable

21

NUT, LOCK (12MM) (NOT AVAILABLE)

90353-250-000

Unavailable

22

WASHER, TOP BRIDGE TONGUE (NOT AVAILABLE)

90532-205-000

Unavailable

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

24

SCREW, PAN (6X12)

93500-06012-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

25

SCREW, OVAL (6X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-06012.

93700-06012-0A

Unavailable

26

NUT, HEX. (4MM) This part replaces 94001-04000.

94001-04000-0S

$1.49

26

NUT, HEX. (4MM)

94001-04000-0S

$1.49

27

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

27

NUT, HEX. (5MM)

94001-05000-0S

$2.74

28

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

28

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

WASHER, SPRING (10MM)

94111-10000

$1.49

31

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

31

FITTING, GREASE (A.45)

96201-30001

$1.49
