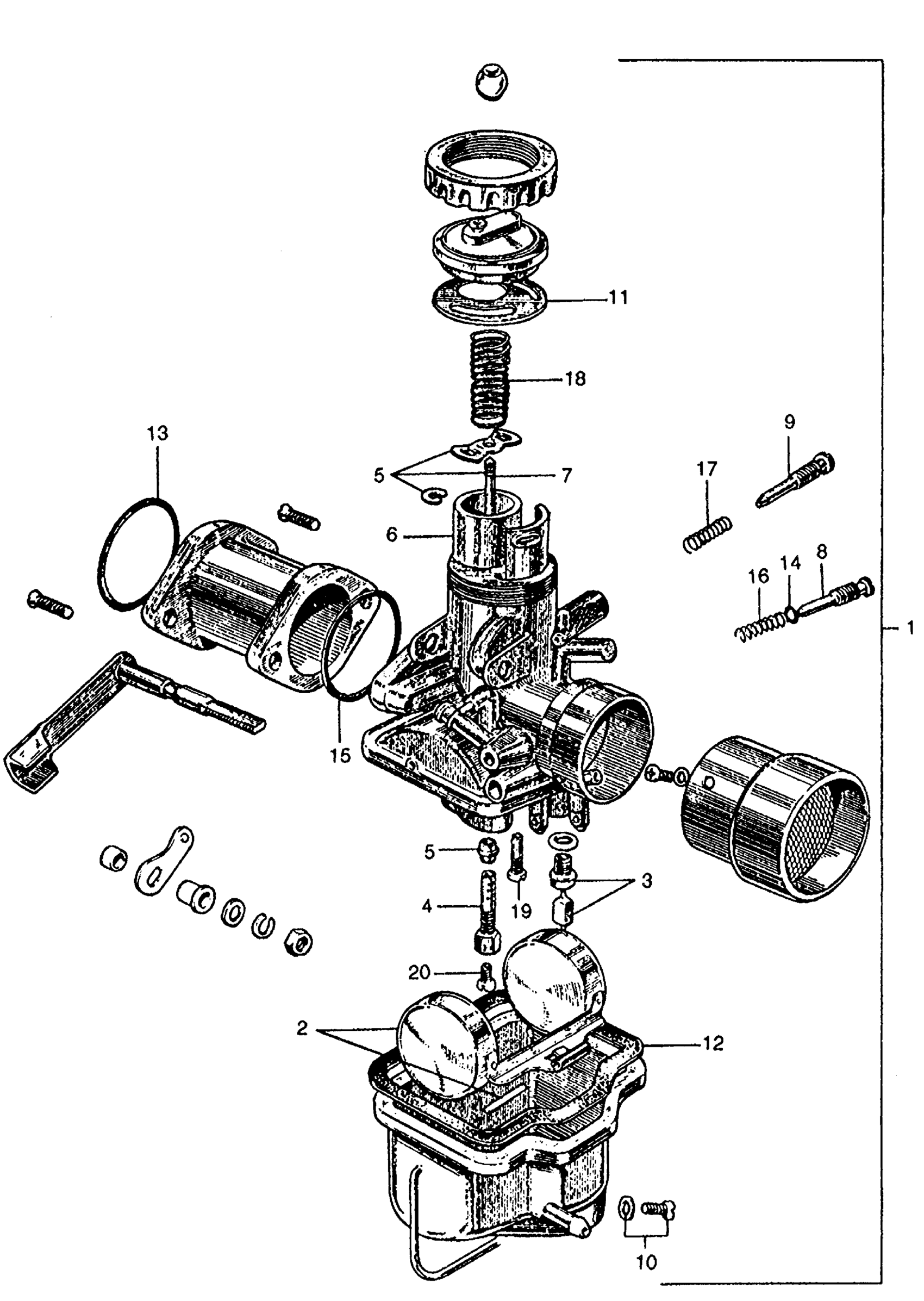

Honda CA160A MOTORCYCLE, JPN, VIN# CA160-1000001 CA160 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-225-000

Unavailable

2

FLOAT SET This part replaces 16013-046-004.

16013-116-700

$28.61

2

FLOAT SET

16013-116-700

$28.61

2

FLOAT SET This part replaces 16013-116-704.

16013-116-700

$28.61

2

FLOAT SET This part replaces 16122-201-004.

16013-116-700

$28.61

3

VALVE SET, FLOAT This part replaces 16011-240-004.

16011-355-004

$20.89

3

VALVE SET, FLOAT

16011-355-004

$20.89

3

VALVE SET, FLOAT This part replaces 16124-225-004.

16011-355-004

$20.89

4

NEEDLE, JET (NOT AVAILABLE) This part replaces 16133-225-004.

16133-259-004

$8.48

4

NEEDLE, JET (NOT AVAILABLE)

16133-259-004

$8.48

5

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-225-004

Unavailable

6

VALVE, THROTTLE (NOT AVAILABLE)

16141-225-004

Unavailable

7

NEEDLE, JET (NOT AVAILABLE)

16151-225-004

Unavailable

8

SCREW, AIR (NOT AVAILABLE)

16162-202-004

Unavailable

9

SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.

16163-217-004

Unavailable

9

SCREW, THROTTLE STOP (NOT AVAILABLE)

16163-217-004

Unavailable

10

SCREW, DRAIN (NOT AVAILABLE)

16164-202-004

Unavailable

10

SCREW, DRAIN (NOT AVAILABLE) This part replaces 16164-225-004.

16164-202-004

Unavailable

11

WASHER, TOP (NOT AVAILABLE)

16171-217-004

Unavailable

12

WASHER, FLOAT CHAMBER

16172-030-004

Unavailable

13

O-RING (24X2.4) This part replaces 16173-202-004.

16173-250-004

Unavailable

13

O-RING (24X2.4)

16173-250-004

Unavailable

14

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

15

O-RING (23X2.4) (NOT AVAILABLE)

16176-001-004

Unavailable

16

SPRING, AIR SCREW

16181-202-004

$3.70

17

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

18

SPRING, THROTTLE (NOT AVAILABLE)

16185-202-004

Unavailable

19

JET, SLOW (#38) (NOT AVAILABLE)

99124-089-0380

Unavailable

19

JET, SLOW (#40) (NOT AVAILABLE)

99124-089-0400

Unavailable

19

JET, SLOW (#40) (NOT AVAILABLE) This part replaces 99124-223-0400.

99124-089-0400

Unavailable

19

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99139-03804.

99124-089-0380

Unavailable

19

JET, SLOW (#40) (NOT AVAILABLE) This part replaces 99139-04004.

99124-089-0400

Unavailable

19

JET, SLOW (#42) (NOT AVAILABLE)

99139-04204

Unavailable

20

JET, MAIN (#98) (NOT AVAILABLE) This part replaces 99113-09804.

99114-051-0980

Unavailable

20

JET, MAIN (#100) (NOT AVAILABLE) This part replaces 99113-10004.

99102-10004

Unavailable

20

JET, MAIN (#105) (NOT AVAILABLE)

99113-10504

Unavailable
